10/100BaseT Tap
4

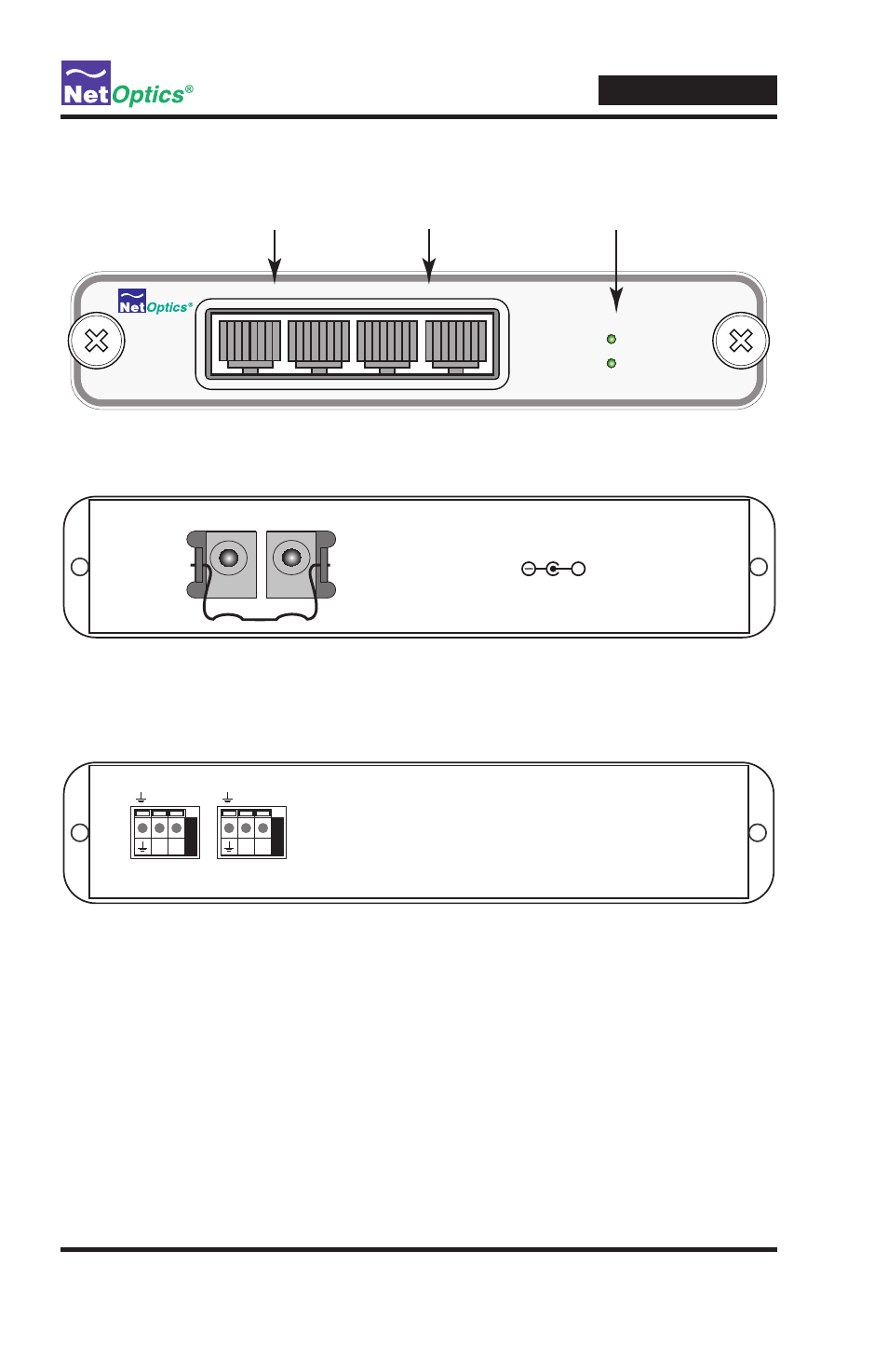

Product Diagrams
Figure 1: Front Panel
Figure 2: Rear Panel AC Power Model
Figure 3: Rear Panel DC Power Model
LED Indicators
•. PWR 1/ PWR 2:.Main.and.Redundant.Power ..If.the.Tap.is.deployed.with.
both.power.supplies,.both.LEDs.illuminate.white.when.the.Tap.is.connected.
to.power ..An.off.power.LED.indicates.that.the.corresponding.power.supply.
is.not.functioning.or.not.connected .
www.netoptics.com
Network Monitor
1
2
10/100 Ethernet Tap 10/100 Ethernet Tap
A A B B
Power LEDs Monitor A & B Network A & B
1 2
12V DC
1.5 Amp max.
+
OUTPUT PIN ASSIGNMENT
- +
- +
- +
- +
