10/100BaseT Tap
6
Connecting to the Monitoring Device
1 .. Supply.power.to.the.Tap.using.the.two.redundant.power.supplies.included.
with.the.unit ..Verify.that.the.Power.LED.illuminates .
2 .. Connect.Monitor.Port.A.to.the.appropriate.port.on.the.monitoring.device.
using.a.CAT5e.straight-through.cable .
3 .. Connect.Monitor.Port.B.to.the.appropriate.port.on.the.monitoring.device.
using.a.CAT5e.straight-through.cable .
Note: _______________________________________________________________
The second power supply is available to support the flow of traffic to the
monitoring device in the event that the first power supply becomes
unavailable.
______________________________________________________________________

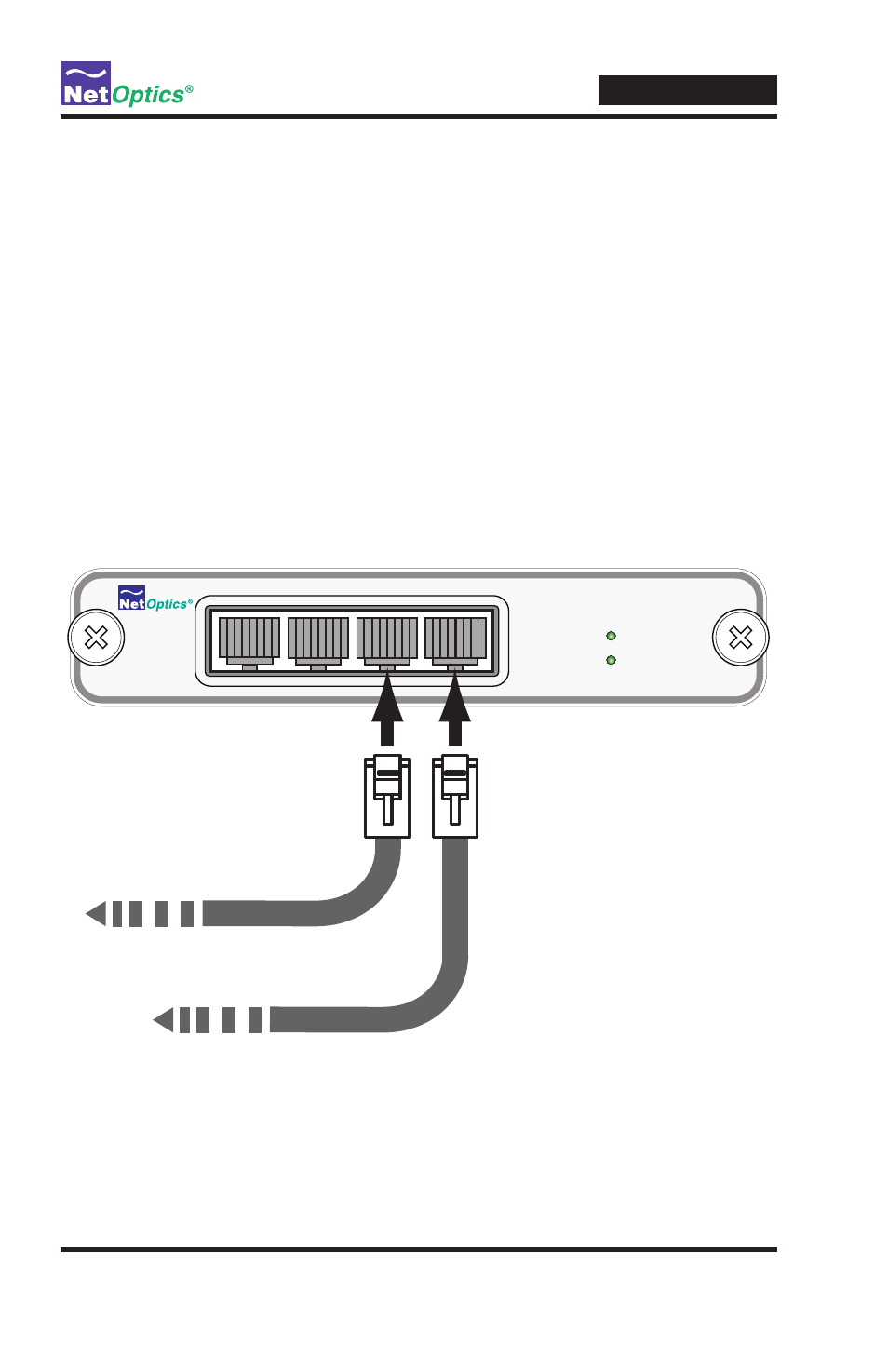

Figure 6: Connecting to the Monitoring Device
www.netoptics.com
Network Monitor
1
2
10/100 Ethernet Tap 10/100 Ethernet Tap
A A B B
To monitor NIC
To monitor NIC
