www.billetspecialties.com • Tech Line 708.588.0505 12 LSx Top Mount Tru Trac - 13455 / 13475 13

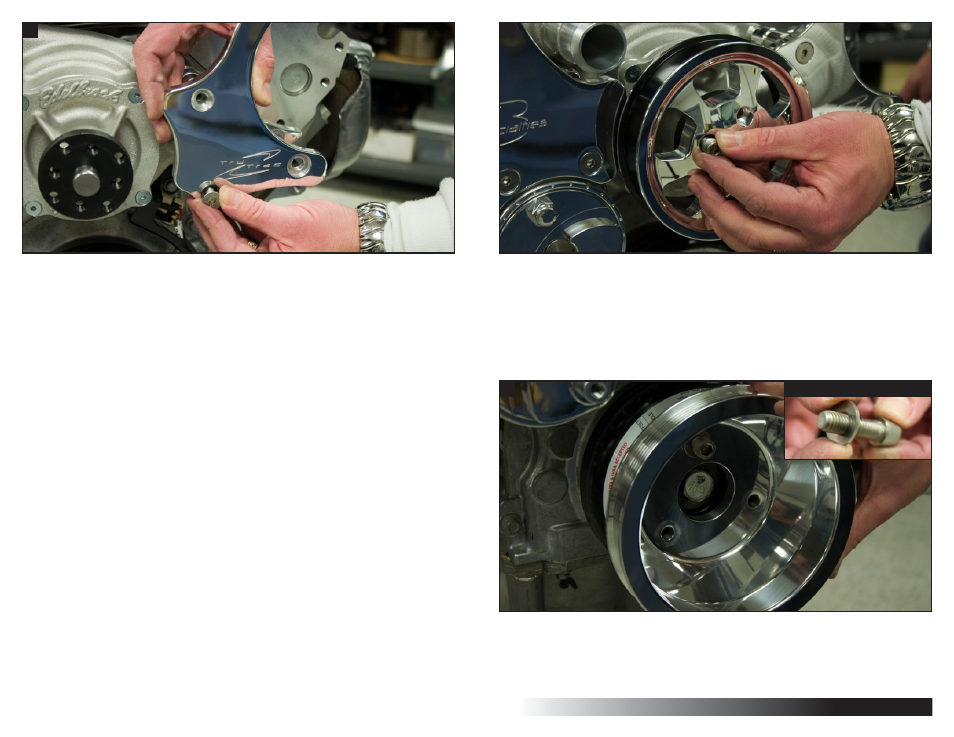

Figure 6: Install Water Pump Pulley
Apply LocTite to the threads of the four 5/16-24 x 3/4” socket head cap screws.
[A] Install Water pump pulley as shown and tighten firmly.
Figure 7: Install Crankshaft Pulley
Apply LocTite to the threads of the three 3/8-16 x 1-1/4” socket head cap screws.
[A] Install crank the pulley as shown, install the Belleville washers as shown with the cup
facing away from the head of the fasteners. Tighten firmly.
A
A Cup Towards Engine
Figure 5: Install Alternator Bridge Bracket
Apply anti seize to the threads of two 8mm-1.25 x 25mm flat head cap screws.
[A] Place alternator bracket on driver side of water pump and line up holes with standoffs.
Thread fasteners through bridge bracket and into standoffs and finger-tighten.
A
