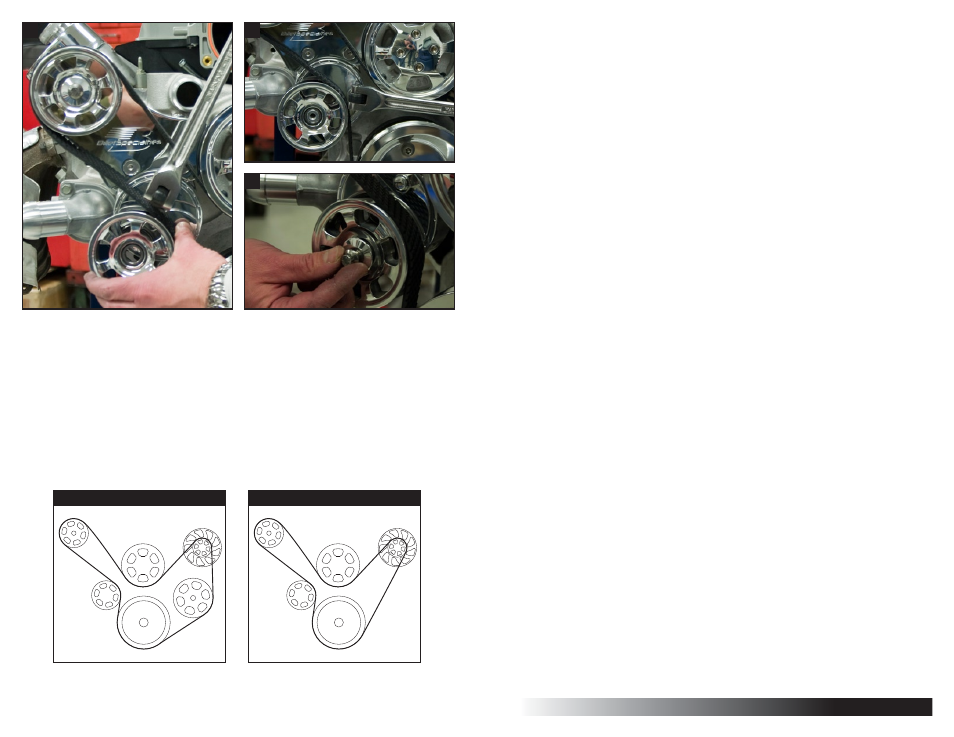

Figure 12: Install Belt & Tensioner Pulley
Route belt as shown below minus tensioner pulley.
[A] Place a 5/8” socket attached to a breaker bar on tensioner nut at approximately the
12 o’clock position, align belt onto grove of tensioner pulley.
[B] Pull breaker bar clockwise until tensioner boss lines up with hole in tensioner pulley, slide
pulley onto boss and slowly return wrench to starting position, applying tension to the belt.
Apply anti-seize to the threads of the 3/8-16 x 3/4” ARP 12pt. cap screw.
[C] Thread ARP 12pt. cap screw with aluminum washer onto tensioner boss and tighten firmly
(46 ft/lbs.).
WITH POWER STEERING WITHOUT POWER STEERING
A B
C
