LSx Top Mount Tru Trac - 13455 / 13475

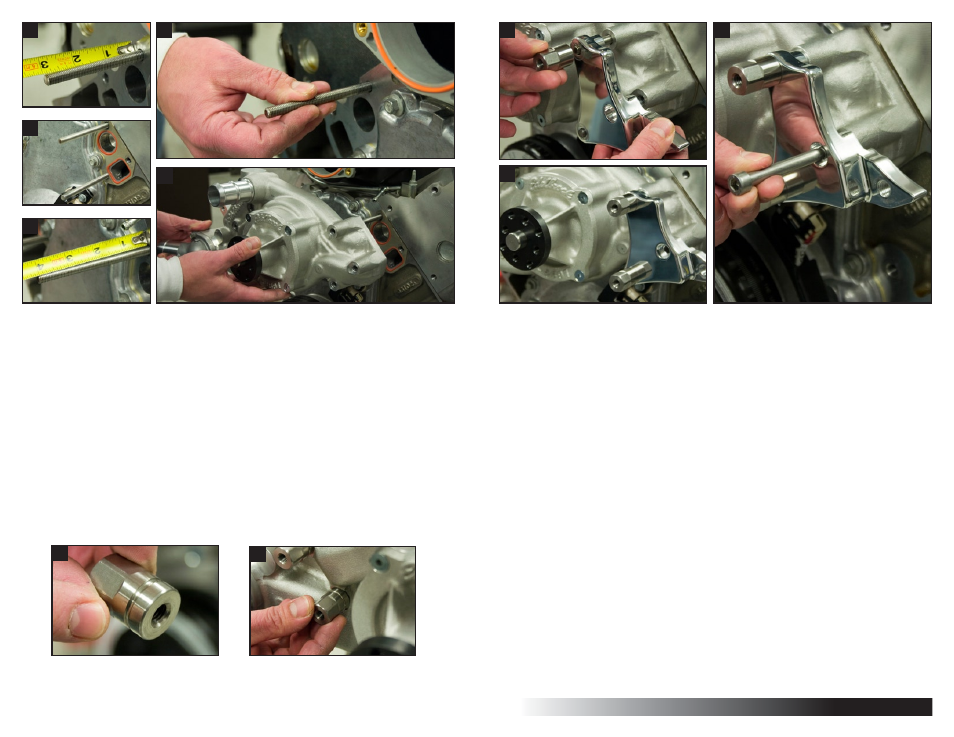

Figure 1: Install Water Pump

Apply anti-seize to one end of each of the three 8mm-1.25 x 92mm long threaded studs and
the two 8mm-1.25 x 118mm long studs. Use the two included 8mm-1.25 zinc plated nuts
tightened against each other to act as a drive nut to ease installation if needed.

[A] Thread the three 92mm studs into the passenger side of the engine block, installed height
should be 3” from block.

[B] Follow by threading in the two 118mm studs into the driver side of the engine block,
installed height should be 4” from block.

[C] Slide water pump gaskets over studs, followed by the water pump. Apply anti-seize to the
exposed threads of all the studs.

[D] Thread the three stainless stand-offs with machined groove (1.035") onto the passenger
side of the water pump and finger tighten.

Figure 2: Install Alternator Bracket

[A] Slide the alternator bracket onto the driver side studs. Thread the remaining two short
spacer nuts (1.103") onto the threaded studs and finger tighten.

[B] Finish by threading the 8mm-1.25 x 95mm socket head cap screw through the alternator
bracket and water pump into the engine block. Tighten all fasteners firmly at this time.
