SENA NEMO10-SK - Manual (Page 16)

16
If any of the above does not happen, the NEMO10 test bed is not properly connected to the Ethernet
network.

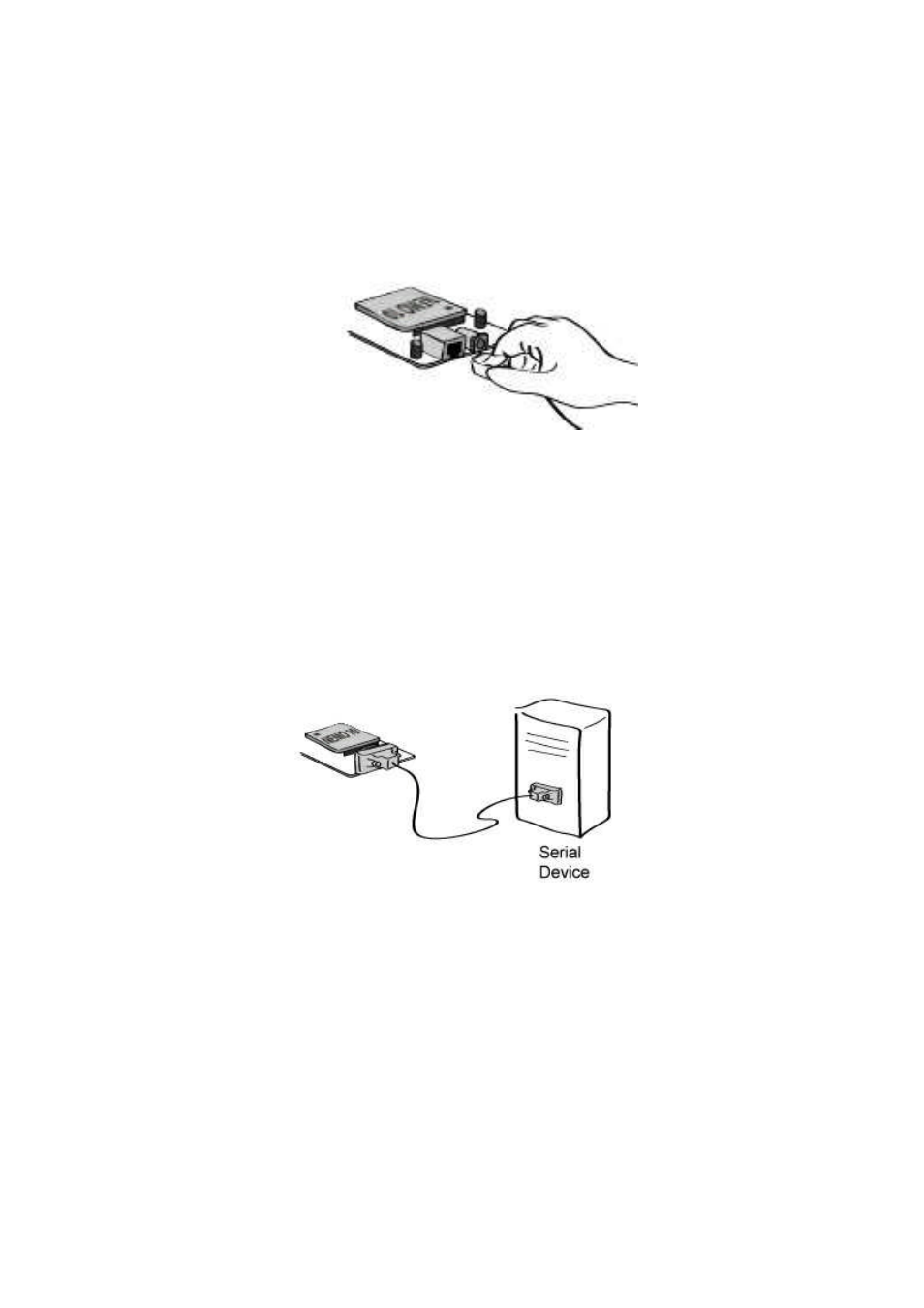

Figure 2-6 Connecting a network cable to the test bed
2.2.4 Connecting To The Device
Connect the serial data cable between the test bed and the serial device. If necessary, supply the
power to the serial device attached to the NEMO10 test bed.
Figure 2-7 Connecting a serial device to the NEMO10
