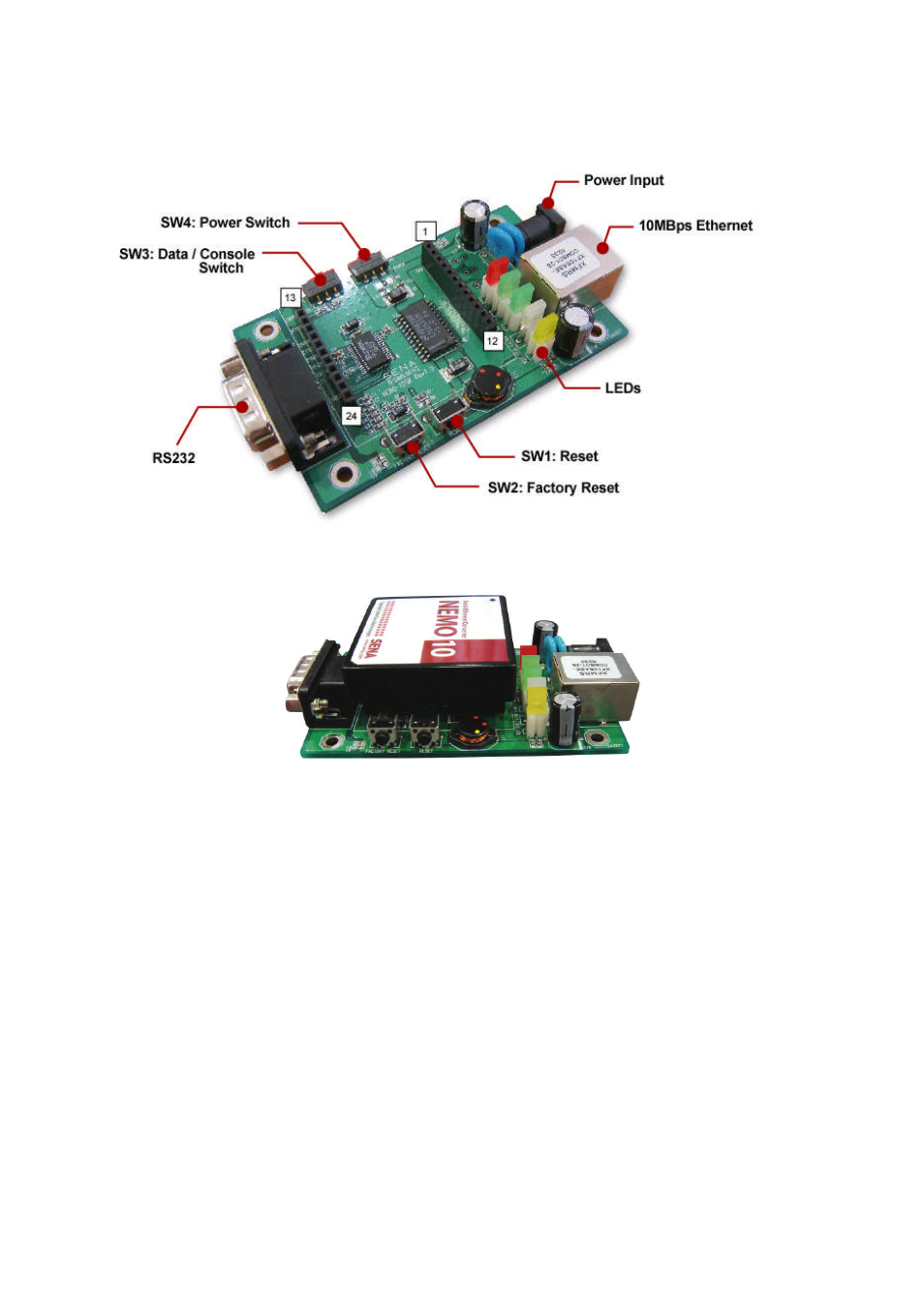

Figure 2-3 Picture of the NEMO10 test bed and the NEMO10-SK after the installation
2.2 Connecting The Hardware
This section describes how to install the NEMO10 onto the test bed and how to connect the test bed to
the serial device for the first time test.
- Plug the NEMO10 module to the test bed
- Connect the power to the test bed
- Connect the Ethernet cable between the test bed and Ethernet hub or switch
- Connect the serial data cable between the test bed and a serial device
