Inactivity time-out

TCP connection request rejected

Or internal TCP time-out

TCP connection request accepted

Sync-Sent

Incoming data via serial port

Incoming data

from remote host

In-coming TCP Close request

Listen

Incoming TCP connection request

Incoming data via serial port

Sync-Recvd

Reject

Accept

Closed

Data

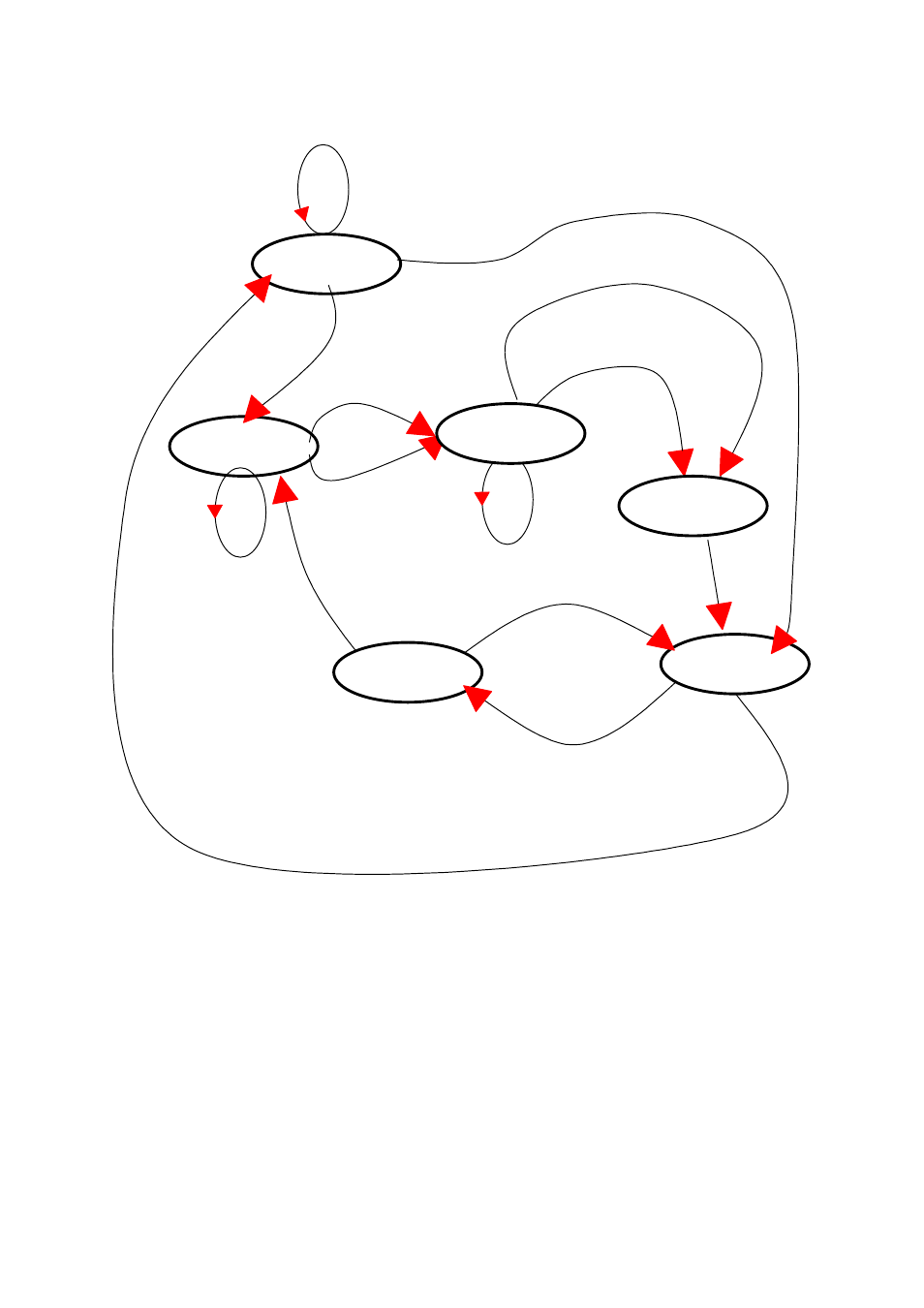

Figure 4-5 State Transition Diagram of TCP mode

4.2.3.2. UDP Mode

The UDP mode operation is similar to that of TCP mode except that it is based on UDP protocol and

only one pre-defined remote host is able to communicate with the Pro Series. Users do not have to

configure cyclic connection, since UDP is a connectionless protocol.
