18
2.2.4. Accessing The System Console
There are several ways to access the Pro Series. These methods are dependent on whether the user
is located at a local site or a remote site, or whether the user requires a menu-driven interface, graphic
menu system or CLI (Command Line Interface).
 System console:
Local users can connect directly to the system console port of the Pro Series using the serial
console cable.
 Remote console:
Remote users who require a menu-driven interface can utilize Telnet (port 23) or SSH (port 22)
connections to the Pro Series using Telnet or SSH client.
Note: Please note that Pro Series supports only the SSH v2, so user must use the SSH client
which is able to support SSH v2.
 Web:
Remote users who want to use a web browser to configure the Pro Series can connect to the Pro
Series using a conventional web browser, such as Internet Explorer or Netscape Navigator.
The above methods require user authentication by the Pro Series system.
2.2.5. Using The System Console
1) Connect one end of the console cable to the console port on the Pro Series.
(For PS110, Push the Data/Console switch to the Console side. And also please set the
position of DIP switch for serial mode to RS-232 mode. Configuration of DIP switch is
discussed on Appendix 1. Connections.)

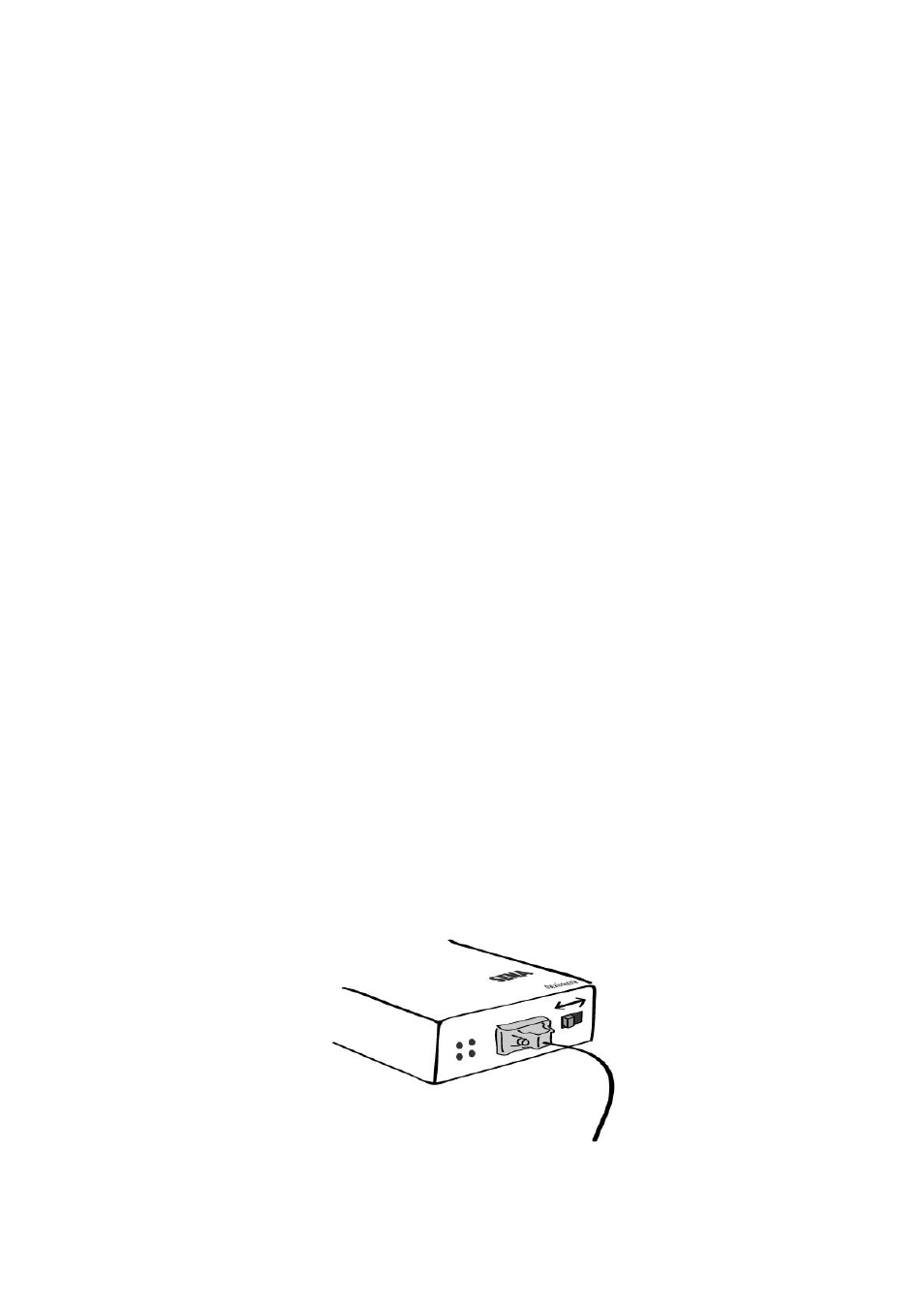

Figure 2-13 Connecting a system console cable to the PS110
