53

The configuration makes the system work as follows.

-

The data stream from users’ application is transferred to the virtual port COM10.

-

The data stream from COM10 is transferred to the IP address/TCP port of the

SS800, 192.168.222.21, TCP port 7001.

Step 3.

I/O test using Rhio Manager

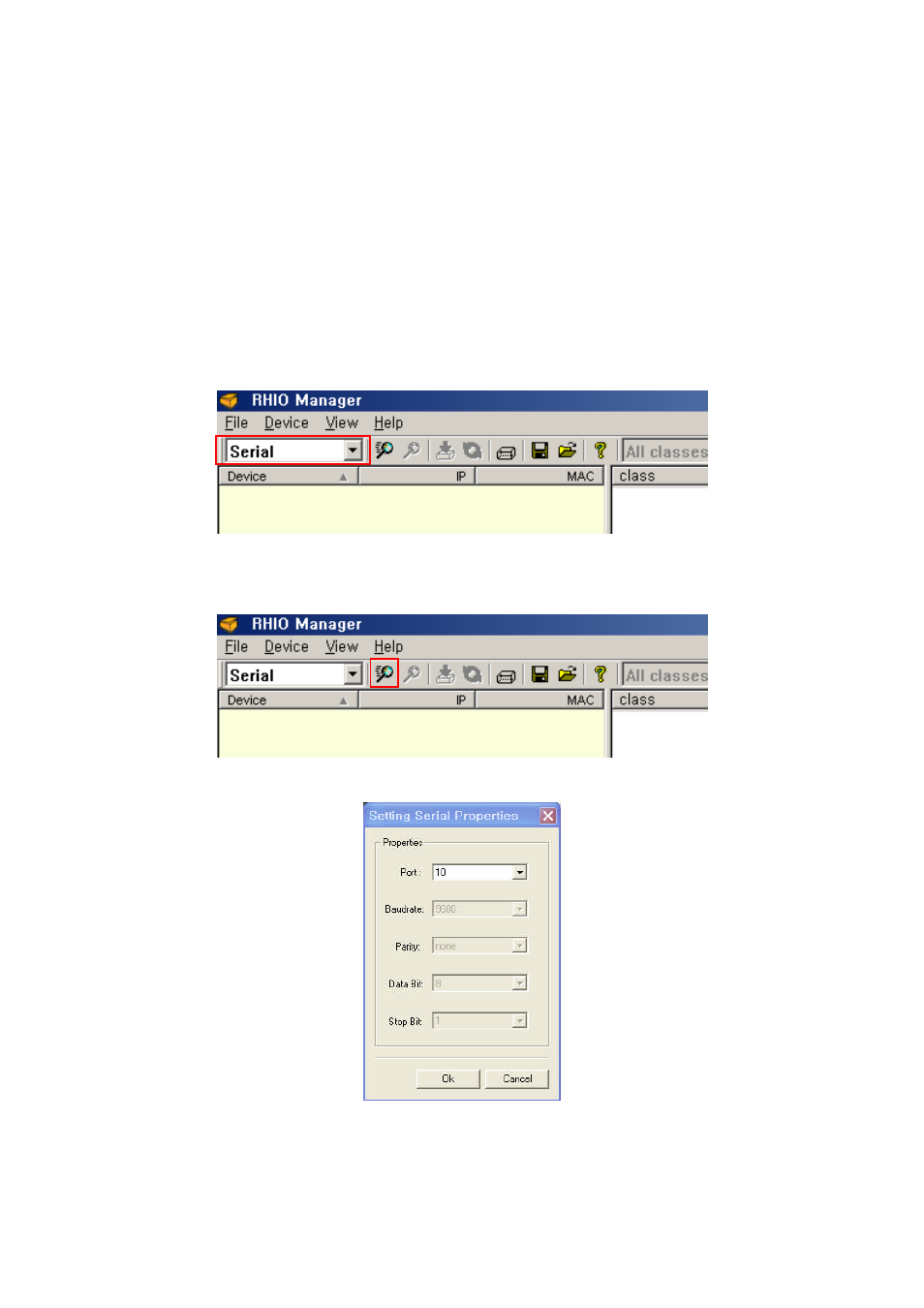

 Run the Rhio Manager and then select [Serial] for communication type.

 Configure COM port after clicking [Probe] button the toolbar Users can now connect to the

Rhio232 which is connected to the SS800 by way of the SS800.
