50
Rhio232 and SS800
Serial/IP COM Port Redirector software
Rhio Manager software
Two CAT5 straight cable (One for the network connection of the SS800 and the other for the
connection between the SS800 and the Rhio232)
- SS800 configuration
IP address(DHCP): 192.168.222.21
Serial port #1 configuration:
Host mode: TCP
TCP Local port: 7001
Serial: RS232 type / 9600 Baud rate / 8 Data bit / None Parity / 1 Stop bit
- Serial/IP COM Port Redirector software configuration
Use COM Port #10
It is assumed that Serial/IP COM Port Redirector and Rhio Manager software are already
installed on the users’ PC and that the Rhio232 is connected to the appropriate I/O devices.

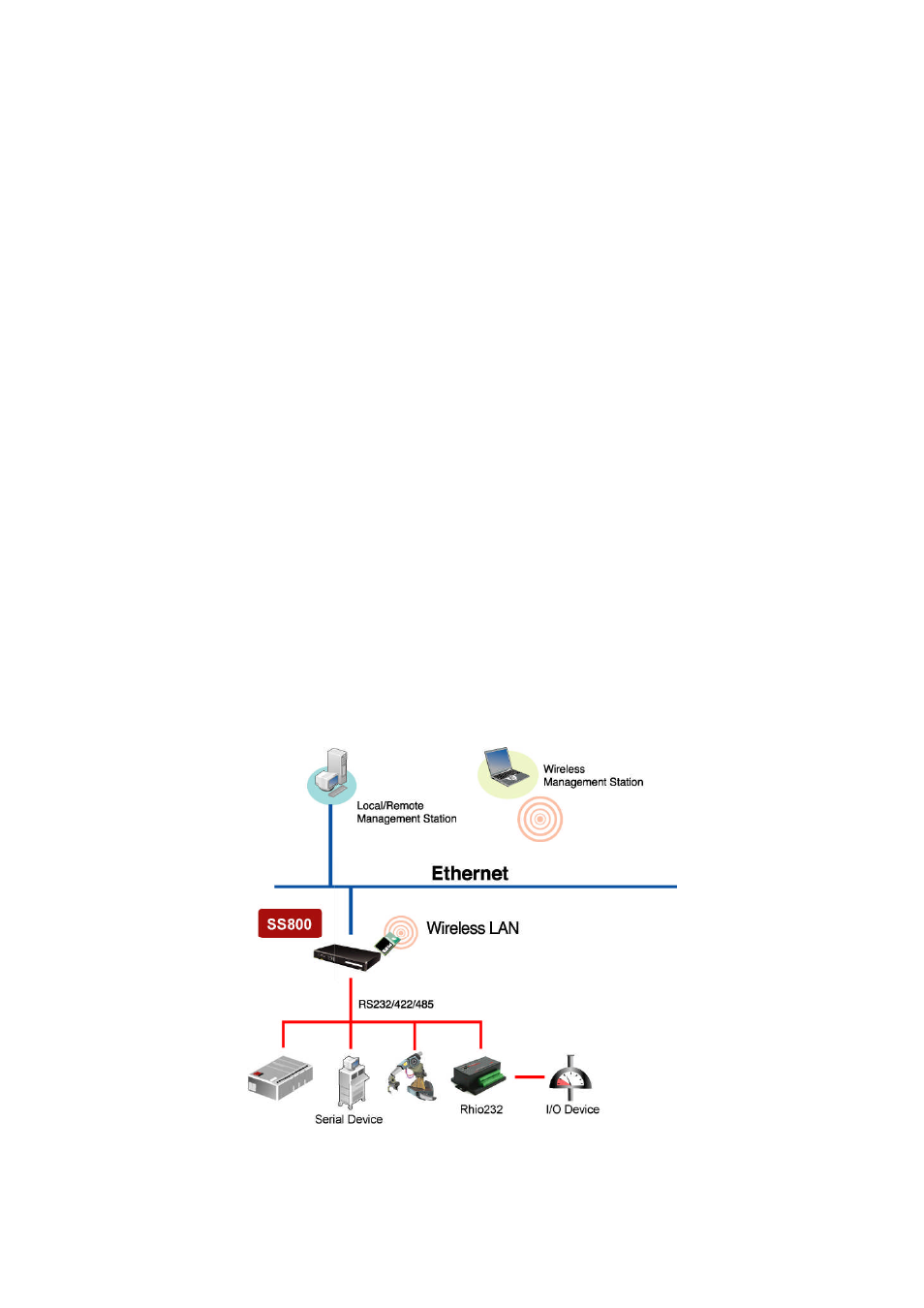

Figure 5-1 shows the application diagram of the SS800 with the Rhio232.
Figure 5-1 Application diagram of the Rhio232 and the SS800
