Standard delivery ; Control and function elements
ENGLISH 8
4. Standard delivery
x Basic
unit
o Complete unit but without spray wand
x Spray wand with pre-assembled nozzle set
x 1x
sticker for the solution container for each of the following: Herbicide, Fungicide and Insecticide.
x These operating instructions and the separate engine operating instructions
x The EC declaration of conformity on a separate piece of paper

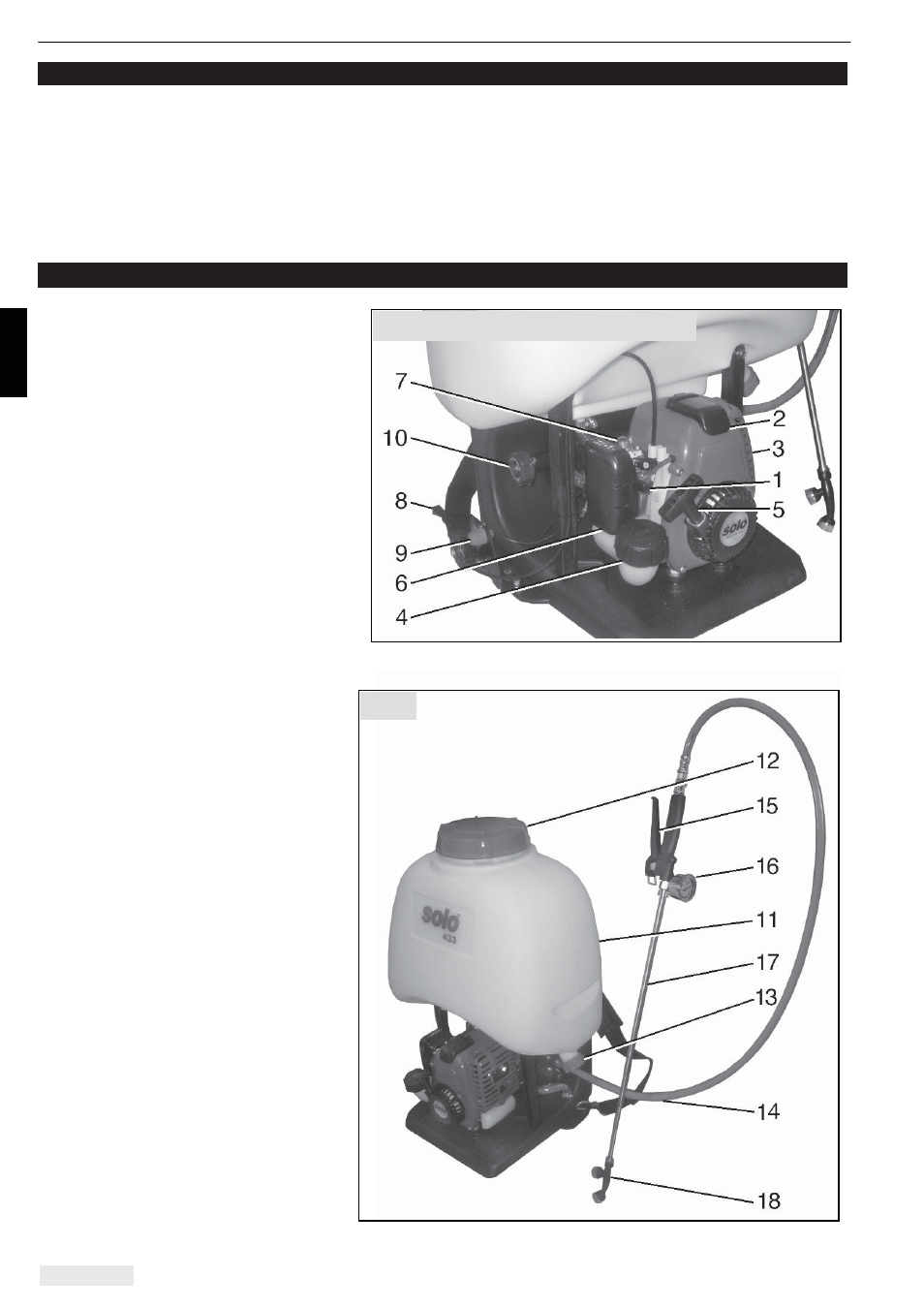

5. Control and function elements
Engine unit: (depending on the version)
Model with a Honda 4-stroke engine
Î
Always comply carefully with the
specifications in the separate
operating instructions for the engine.
1. Choke
lever
2.
Spark plug cap
3. Muffler
4.
Fuel tank lid
5. Starter
handle
6. Air
filter
7. Primer
8.
Throttle adjustment lever
9.
Stop button
10.
Pressure regulator (schematic diagram / depending on the version)
Spray equipment:
11. Liquid
tank
12.
Tank lid -
Opening to fill liquid into tank
(Removable filter basket is
supplied in the filler opening.)
13.
Lid for drainage of spray liquid
14. Pressure
hose
15. Trigger
handle
16. Pressure
gauge
17. Spray
wand
18. Nozzle
insert
(schematic diagram / depending on the version)
Fig. 1 (with SOLO-2-stroke-engine)
Fig. 2
