ENGLISH

ENGLISH

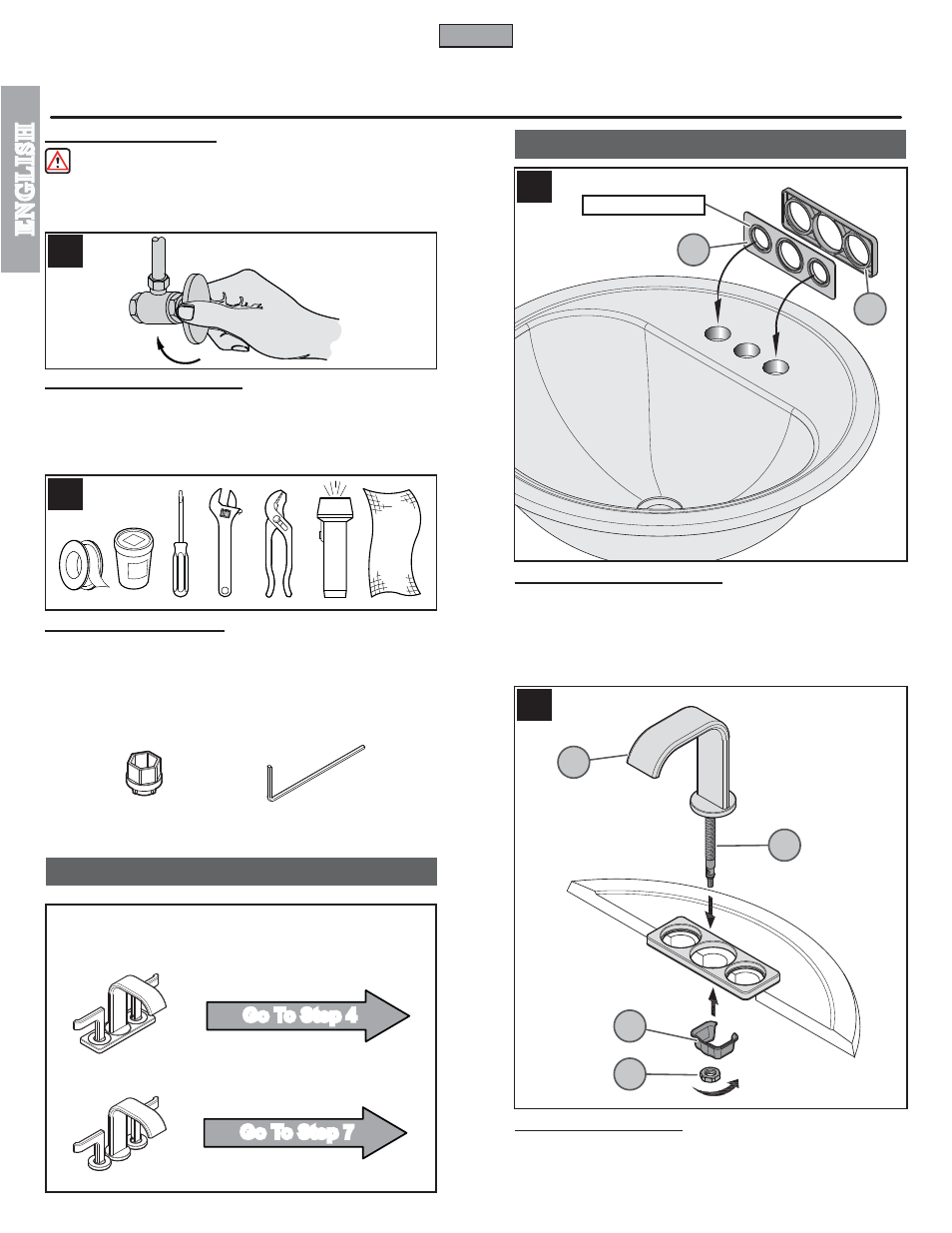

FAUCET INSTALLATION

INSTALLATION USING DECK PLATE

Thank you for purchasing this Price Pﬁster product. All Price Pﬁster products are carefully engineered, and factory tested to
provide long trouble-free use under normal conditions. This product is easy to install using basic tools and our easy to follow
illustrated instructions. If you have any questions regarding this product, call 1-800-Pfaucet (1-800-732-8238).

1 BEFORE PROCEEDING

WARNING: Read all the instructions completely before proceeding. Price Pﬁster

recommends calling a professional if you are uncertain about installing this product!
This product should be installed in accordance with all local and state plumbing and
building codes.

2 SHUT OFF WATER SUPPLY

Locate water supply inlets and shut off the water supply valves. These are usually found
under the sink or near the water meter. If you are replacing an existing faucet, remove
the old faucet from the sink and clean the sink surface thoroughly.

3 TOOLS RECOMMENDED

• PTFE Plumber's Tape

• Plumber's putty

• Slotted screwdriver

• Adjustable wrench

• Pliers

• Flashlight

• Cloth

Your installation may require new supply lines and / or shut-off valves or other additional
tools.

This product comes with an installation tool used for securing the handle ﬂange and a
Hex Wrench for tightening a Set Screw into the Handle Levers.

Go To Step 4

Go To Step 7

4 DECK PLATE INSTALLATION

(For installation without the deck plate, go to step 7.)
Ensure that the Plastic Putty Plate (4A) is pressed on the Deck Plate (4B). Place a bead
of plumber’s putty in the groove along the edge of the Putty Plate (4A). Install the Deck
Plate (4B) over the three holes in your sink.

5 SPOUT INSTALLATION

Insert Spout Shank (5A) through the center hole. From underneath sink, place Thrust
Washer (5B) onto Spout Shank (5A) and tighten with Mounting Nut (5C). Before ﬁnal
tightening, be sure Spout (5D) is centered and facing forward.

Caution: Do not over tighten!

Your faucet can be installed with or without the deck plate:

For installation using the deck plate:

For installation without using the deck plate:

BOTTOM GROOVE
