DRAIN BODY INSTALLATION
FAUCET FUNCTIONS
12
11 WATER SUPPLY CONNECTIONS

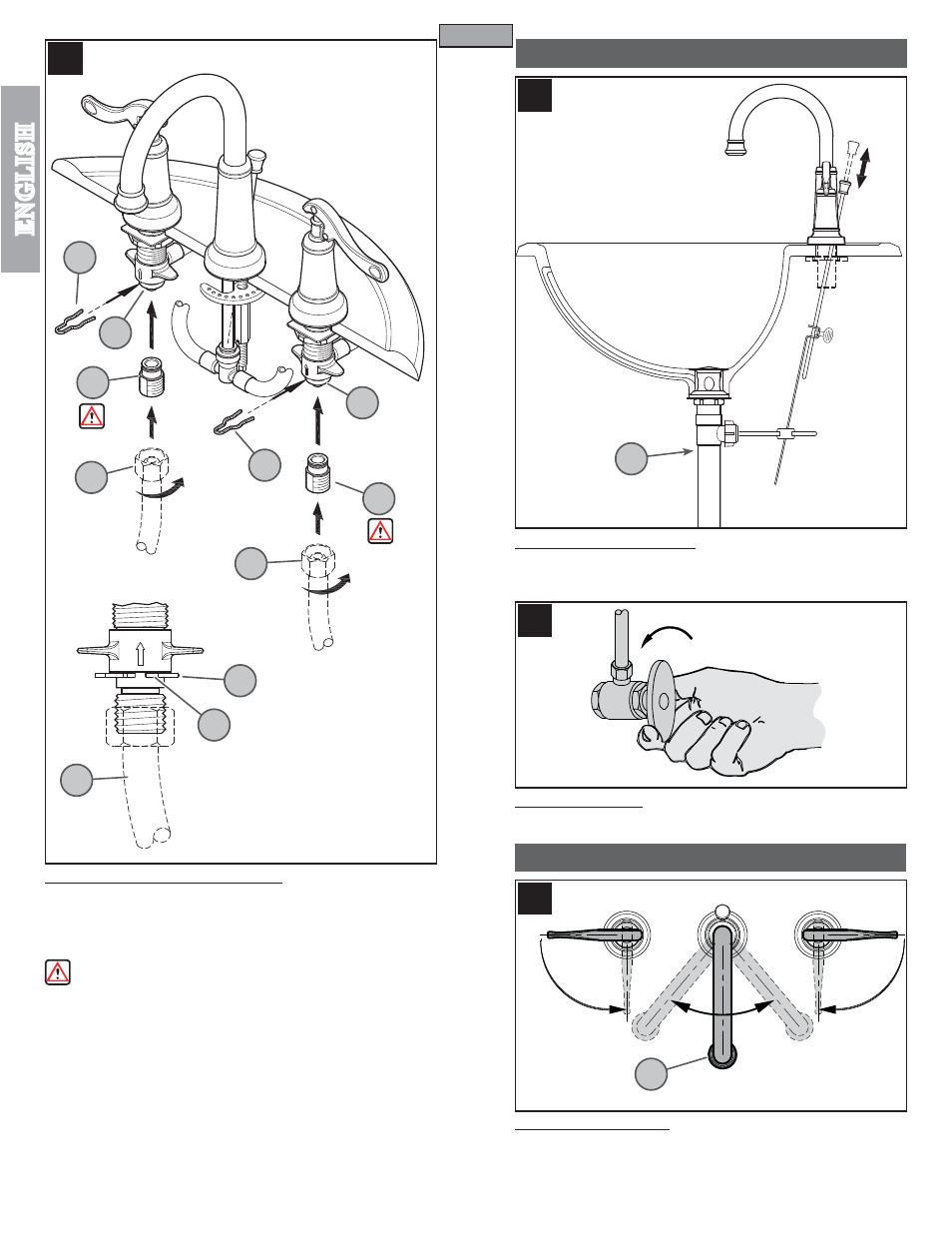

First, thread Inlet Connectors (11A) into Water Supply Lines (11B). Then, insert Inlet
Connectors (11A) into Valve Bodies (11C).
Hot water supply lines go into left inlet.
Cold water supply lines go into right inlet. (Supply lines not included). Please follow
manufacturer’s instructions when installing supply lines. Next, insert Clips (11D) into
Valve Body Holes (11E), to secure unit.
WARNING: Do not twist Inlet Connectors (11A) once installed!
12 POP-UP INSTALLATION
Install and adjust Pop-Up (12A) using separate instructions supplied with the Pop-Up
assembly.
13 UNIT START UP
Turn on hot and cold water supplies, and check for leaks above and below the sink.
14 FAUCET FUNCTION
COLD valve: close-counterclockwise, open-clockwise; HOT valve: close-clockwise,
open-counterclockwise. The Spout (14A) can be rotated around the Faucet Body in
any direction.
Note: Flush faucet before turning on valve (see step 15).
4
HOT
HOT
OPEN OPEN
COLD
COLD
14A
12A
11A
11D
11D
11E
11D
11A
11B
11B
11B
11C
11C
