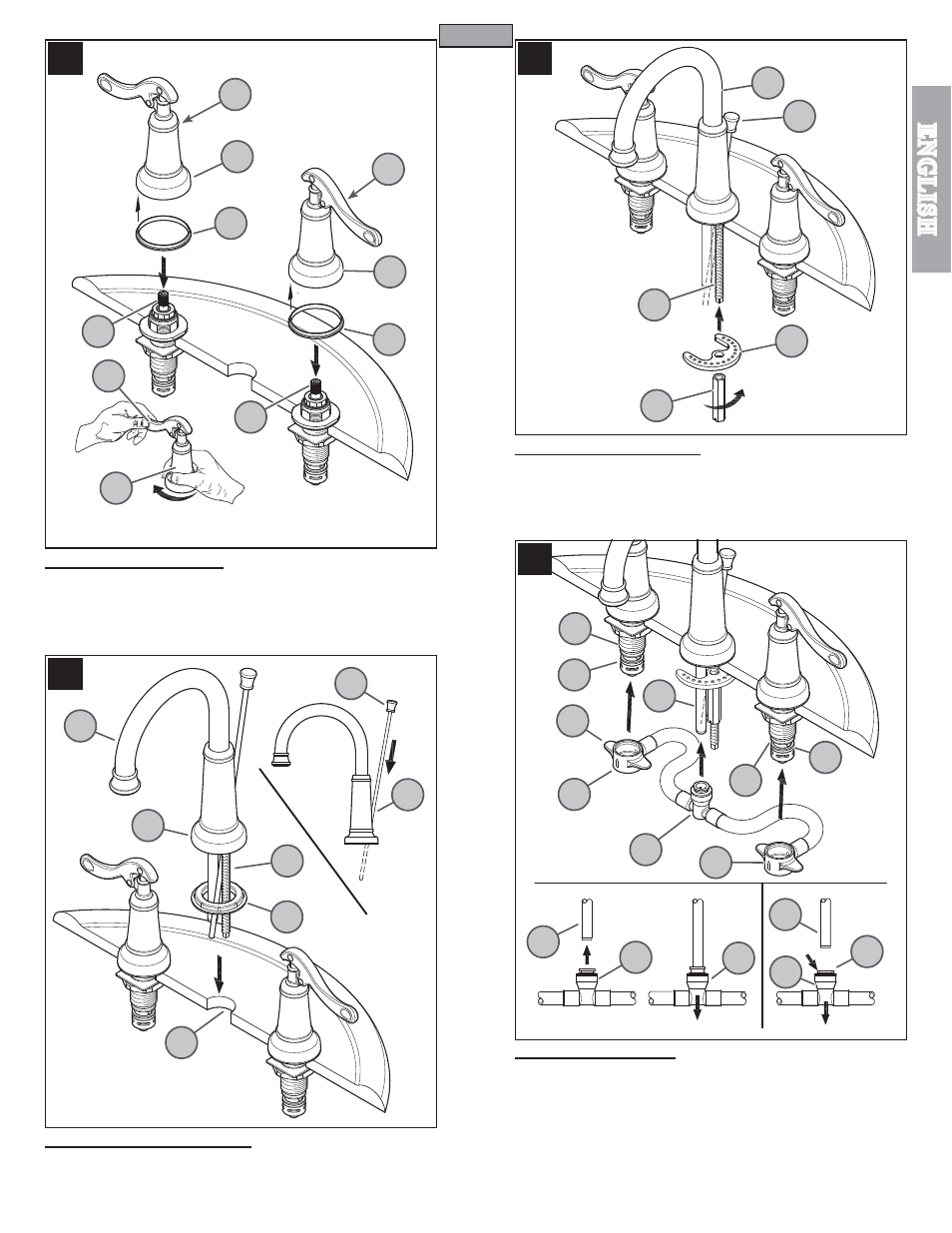

7 HANDLE INSTALLATION

Place Plastic Seal Rings (7A) against the bottom of Handle Hubs (7B). Connect Handles
(7C) onto Valve Stems (7D).
Be sure Valves and Levers are in the “OFF” position. Secure handles by holding the
Lever (7E) in place and tighten the Hubs (7F) by rotating them in a clockwise direction.
To remove handles, rotate Hubs (7F) in a counterclockwise direction.

8 SPOUT BODY ATTACHMENT

Insert Lift Rod (8A) into hole at the back of Spout (8B). Place Plastic Seal Ring (8C)
against the bottom of Spout Base (8D). With Spout (8E) facing forward, carefully install
the Lift Rod (8A) and Shank (8F) through the center hole of sink (8G).

9 SECURING SPOUT BODY

From underneath sink, secure Spout Body (9A) by placing Metal Washer (9B) and
threading Long Nut (

Hex.) (9C) onto Mounting Post (9D). Make sure that the bumps

on Metal Washer (9B) are facing up. Make sure Lift Rod (9E) moves freely. Firmly hand
tighten Long Nut (9C). Secure Long Nut (9C) not to exceed a

turn.

Caution: Do not over tighten!

10 HOSE CONNECTION

From underneath sink, push Center Connector (10A) onto receiving Tube (10B), until
unable to push any further. Pull down on Center Connector (10A). If the housing and
the Inner Collet (10C) separate slightly but do not pull off receiving Tube (10B), the
connection is secure.
To remove, push up on Center Connector (10A) holding plastic Collet (10C) in place,
pull down on Center Connector (10A) until Tube (10B) is free.
Slide the End Connectors (10D) with arrow (10E) pointing up onto the Valve Bodies
(10F). Push the End Connectors (10D) all the way up until completely seated. Be
careful not to damage O-Rings (10G).
