SST Modules
Page 13
Reference Manual
6 SST-SBSC 4632T
The SST-SBSC 4632T is an SST-
SBSC factory-confi gured to provide
crossover, equalization and signal
routing specifi cally for the triamped
JBL
ScreenArray model 4632T
cinema speaker system.
6.1 System Setup

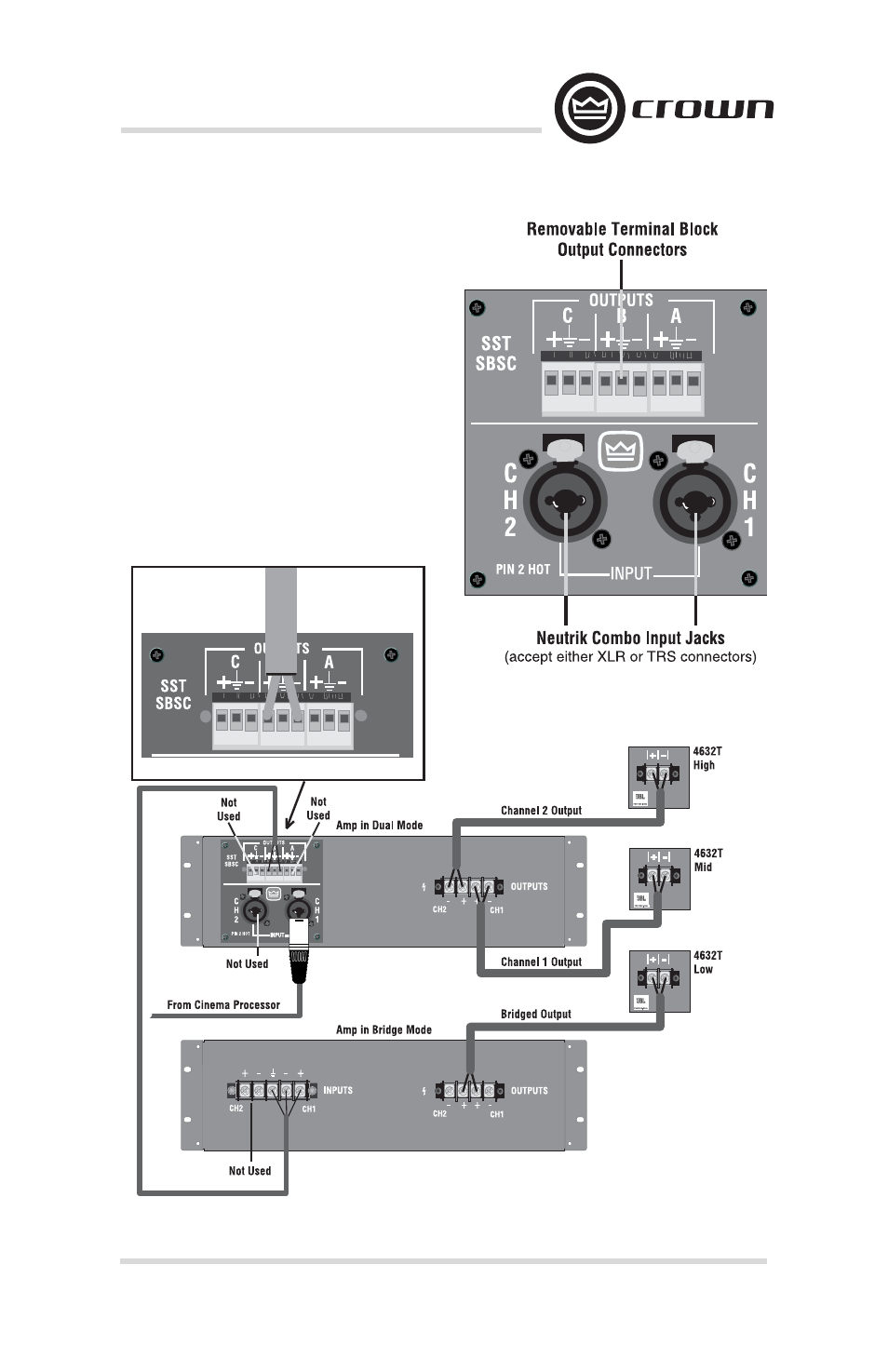

Your system should be wired as shown
in Figure 6.2.
Note: The amplifi er should be placed
in Stereo (Dual) mode.
DETAIL SHOWING NO CENTER GROUND CONNECTION
Figure 6.2 SST-SBSC 4632T Screen Channel Wiring
Left, Center and Right Screen Channels Wired Identically
Figure 6.1 SST-SBSC 4632T Front
Panel Connectors
