SST Modules
Page 11
Reference Manual
5 SST-SBSC 3632T
The SST-SBSC 3632T is an SST-
SBSC factory-confi gured to provide
crossover, equalization and signal
routing specifi cally for the triamped
JBL ScreenArray model 3632T
cinema speaker system.
5.1 System Setup
Your system should be wired as shown
in Figure 5.2.
Note: The amplifi er should be placed
in Stereo (Dual) mode.

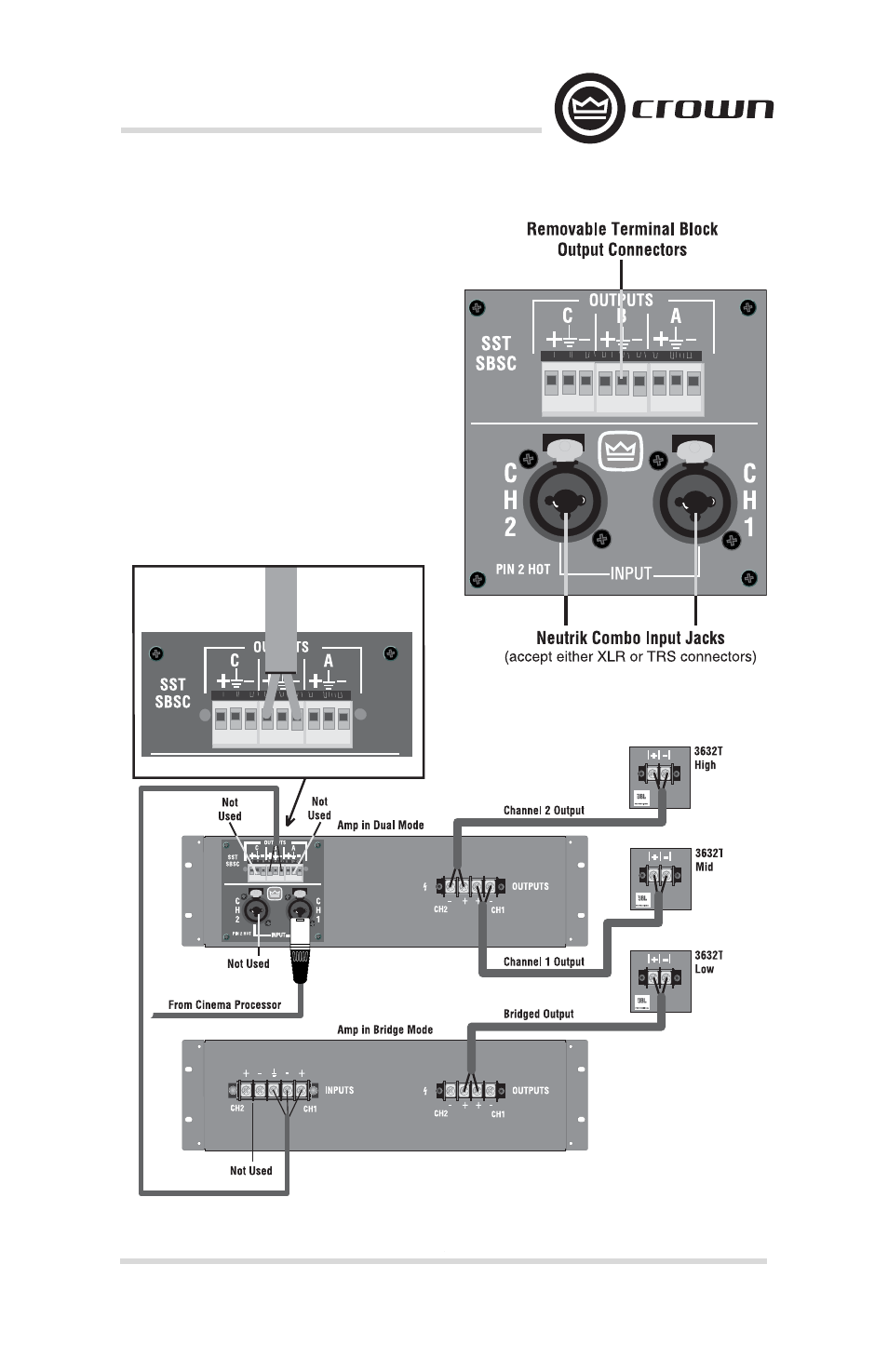

Figure 5.2 SST-SBSC 3632T Screen Channel Wiring
Left, Center and Right Screen Channels Wired Identically
DETAIL SHOWING NO CENTER GROUND CONNECTION
Figure 5.1 SST-SBSC 3632T
Front Panel Connectors
