Typical 5.1 System

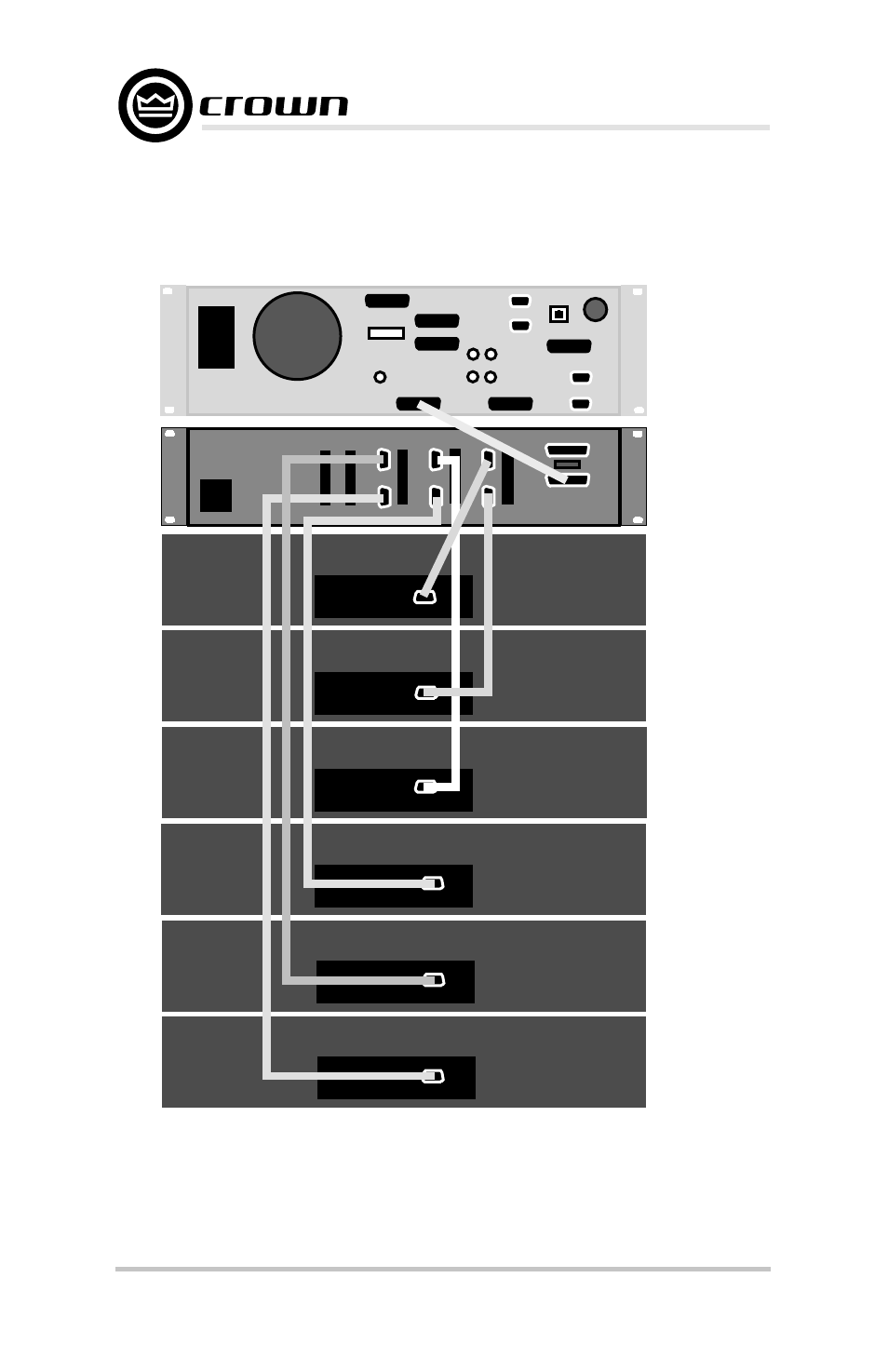

CONNECTIONS

USL Bsl / Bsr to bottom CTs 2000
USL Ls / Rs to middle CTs 2000
USL SW to top CTs 2000

USL Rl / Rh to bottom CTs 1200
USL Cl / Ch to middle CTs 1200
USL Ll / Lh to top CTs 1200
USL "Main inputs from processor outputs" to
Dolby CP650 "Main audio output"

Dolby

®

CP650

Cinema Processor

USL CM680
Monitor/Crossover

CTs 1200 with
PIP-3632

CTs 1200 with
PIP-3632

CTs 1200 with
PIP-3632

CTs 2000
with PIP-USL

CTs 2000
with PIP-USL

CTs 2000
with PIP-USL

USL CM680

Dolby

®

CP650
