ScreenArray ® PIP Modules
Page 10 Operation Manual
4 PIP-3632
The PIP-3632 provides custom
crossover and equalization optimized
for the JBL ScreenArray model 3632
cinema speaker system.

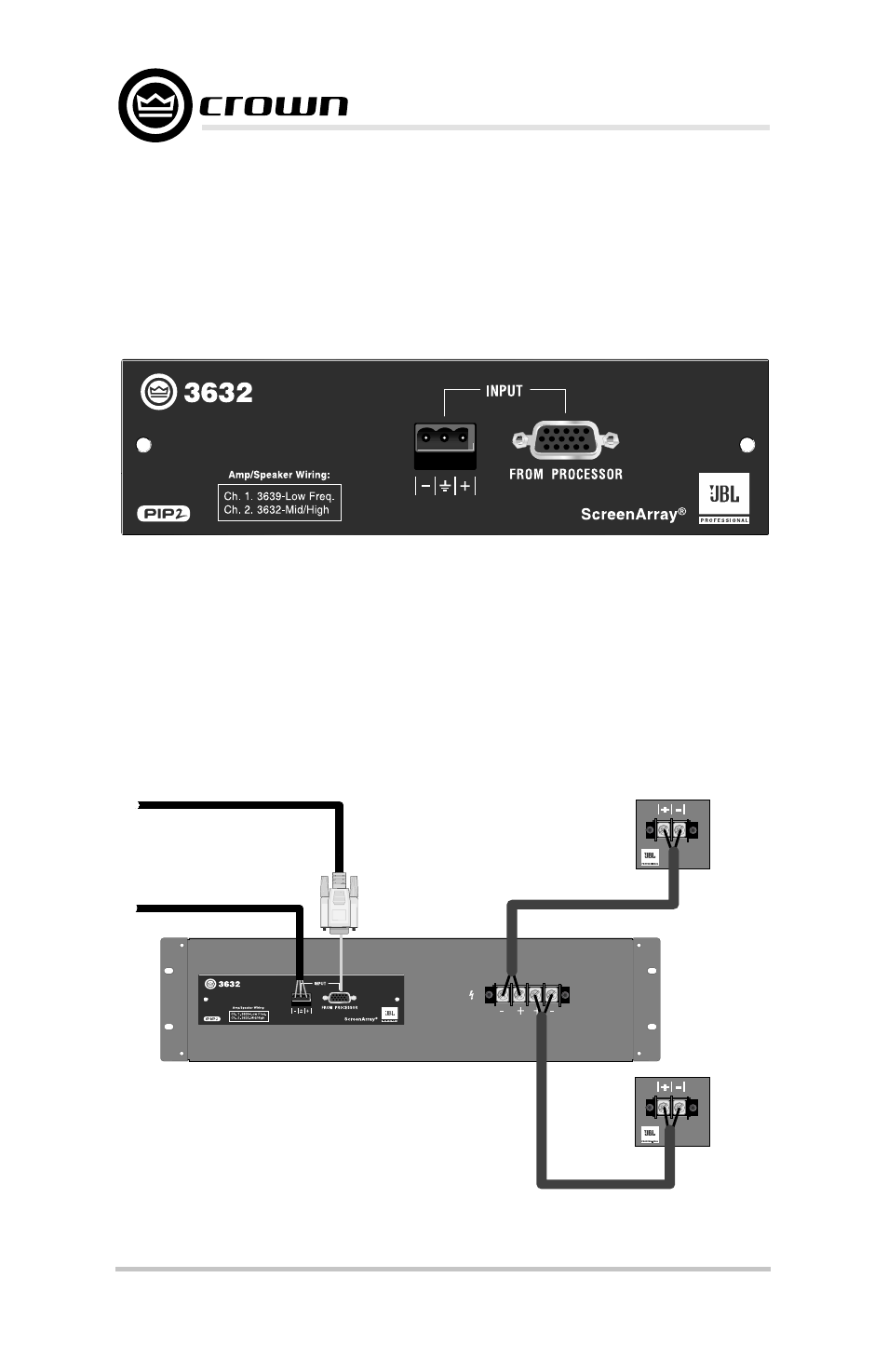

Figure 4.1 PIP-3632 Front Panel
Figure 4.2 Stereo Configuration Using a Crown PIP-compatible Amplifier
and the PIP-3632 Module
3639
Low
CH1 CH2
OUTPUTS
Channel 2 Output
3632
Mid-High
Channel 1 Output
From Cinema Processor
OPTIONAL INPUT PATHS
From USL CM680
4.1 System Setup
Connect your system components
as shown in Figure 4.2. Connect the
cinema processor either to the
barrier-block input or the HD15
input. Note: The amplifier should be
placed in Stereo (Dual) mode.
