The PIP-4632 provides custom
crossover and equalization optimized
for the JBL ScreenArray model 4632
cinema speaker system.

5 PIP-4632

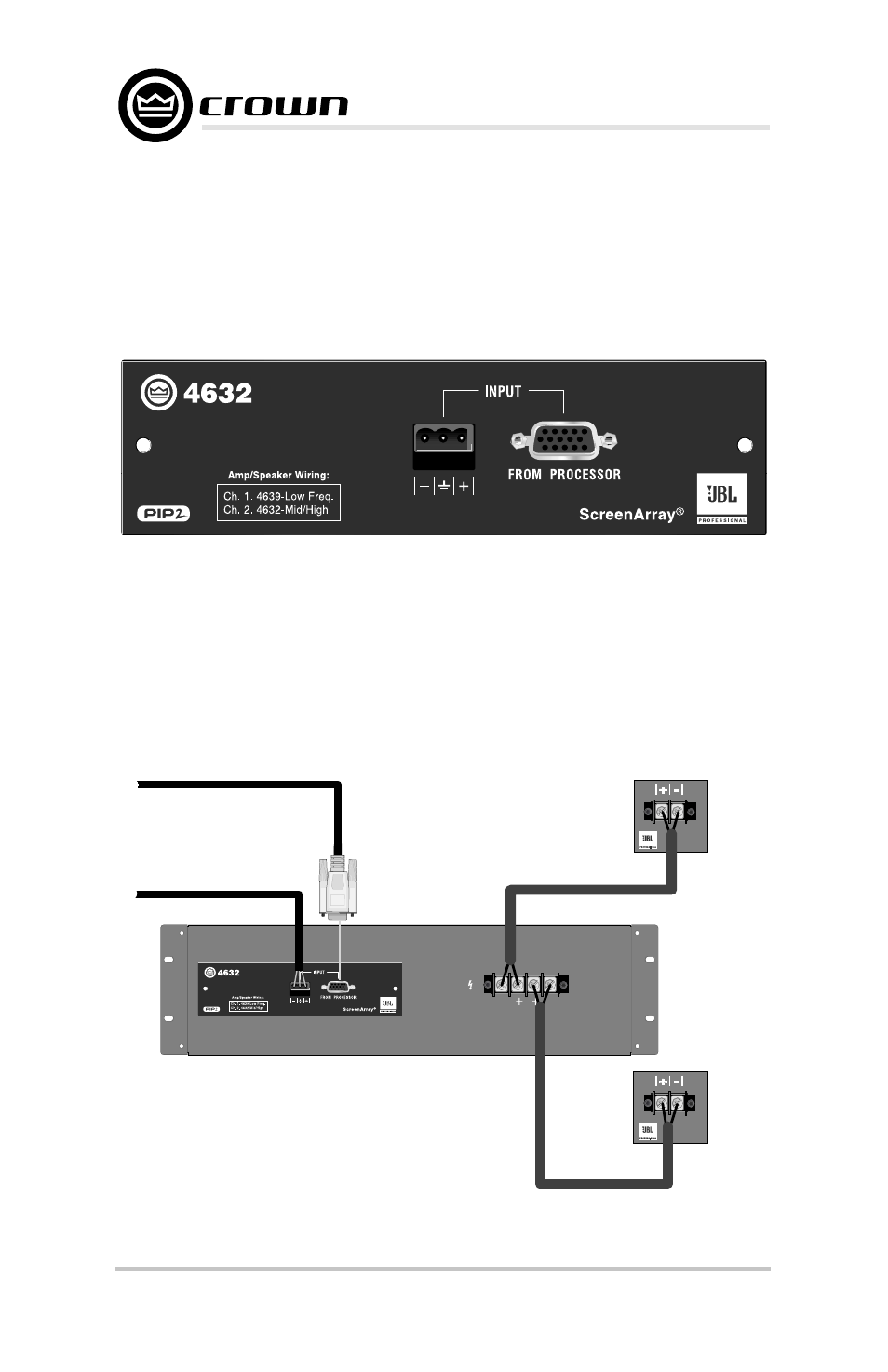

Figure 5.1 PIP-4632 Front Panel

Figure 5.2 Stereo Configuration Using a Crown PIP-compatible Amplifier

and the PIP-4632 Module

4639
Low

CH1

CH2

OUTPUTS

Channel 2 Output

4632
Mid-High

Channel 1 Output

From Cinema Processor

From USL CM680

OPTIONAL INPUT PATHS

5.1 System Setup

Connect your system components
as shown in Figure 6.2. Connect the
cinema processor either to the
barrier-block input or the HD15
input. Note: The amplifier should be
placed in Stereo (Dual) mode.
