B.

D.

A.

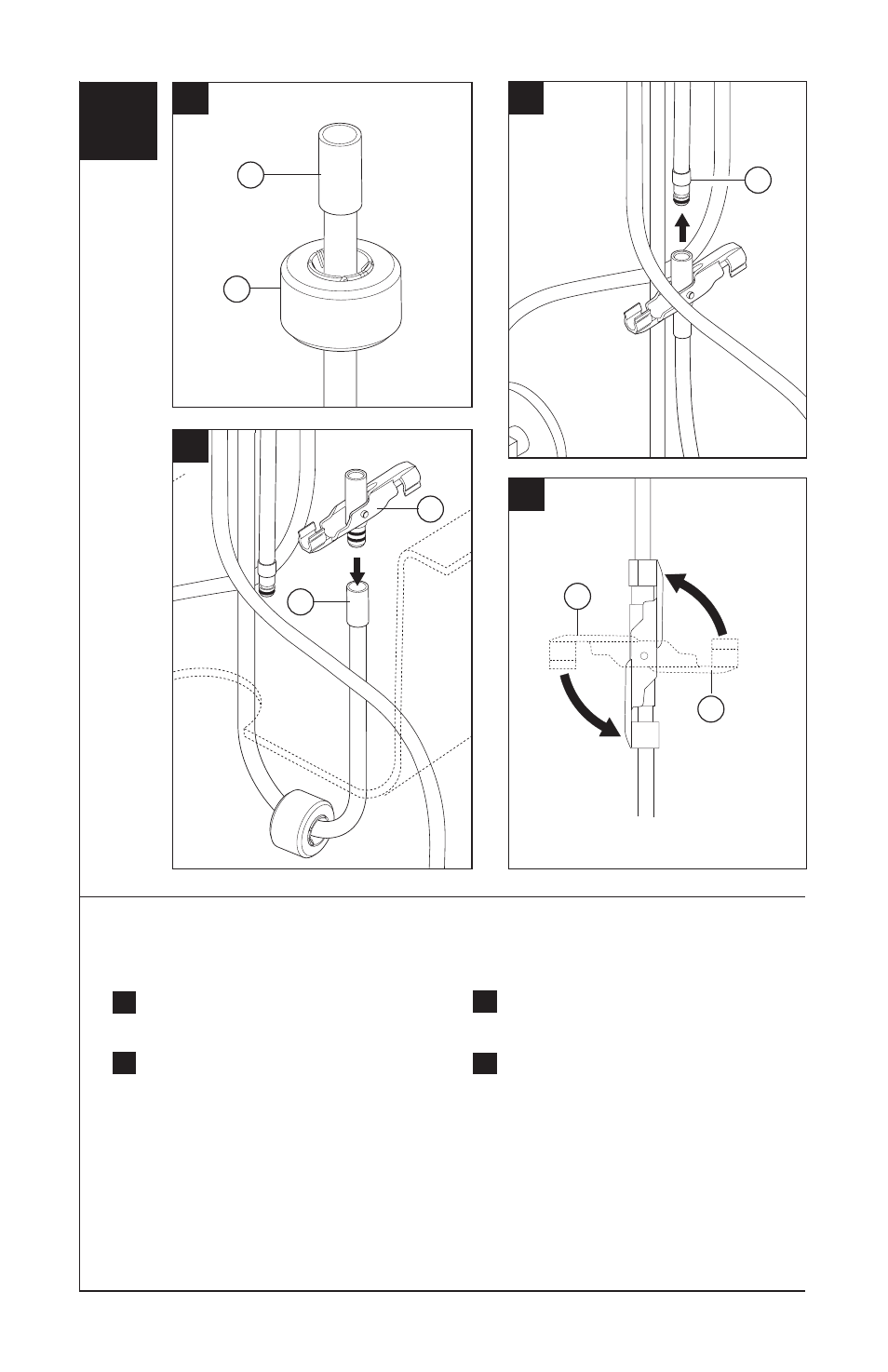

Insert hose end (1) through hose

weight assembly (2).

B.

Insert check-valve adapter (1) into

pull-out hose fitting (2). Ensure

weight does not slide off hose.

C.

Insert faucet outlet quick connect fitting

(1) into adapter.

D.

Rotate arms of adapter (1) to secure

assembly to pull-out hose and faucet

outlet tube.

11

5

C.

Sprayer Hose Connections

2

1

1

1

1

A.

D.

1

2
