English – Factory Direct Hardware Hansgrohe 04301 Talis S User Manual
Page 8

8
English

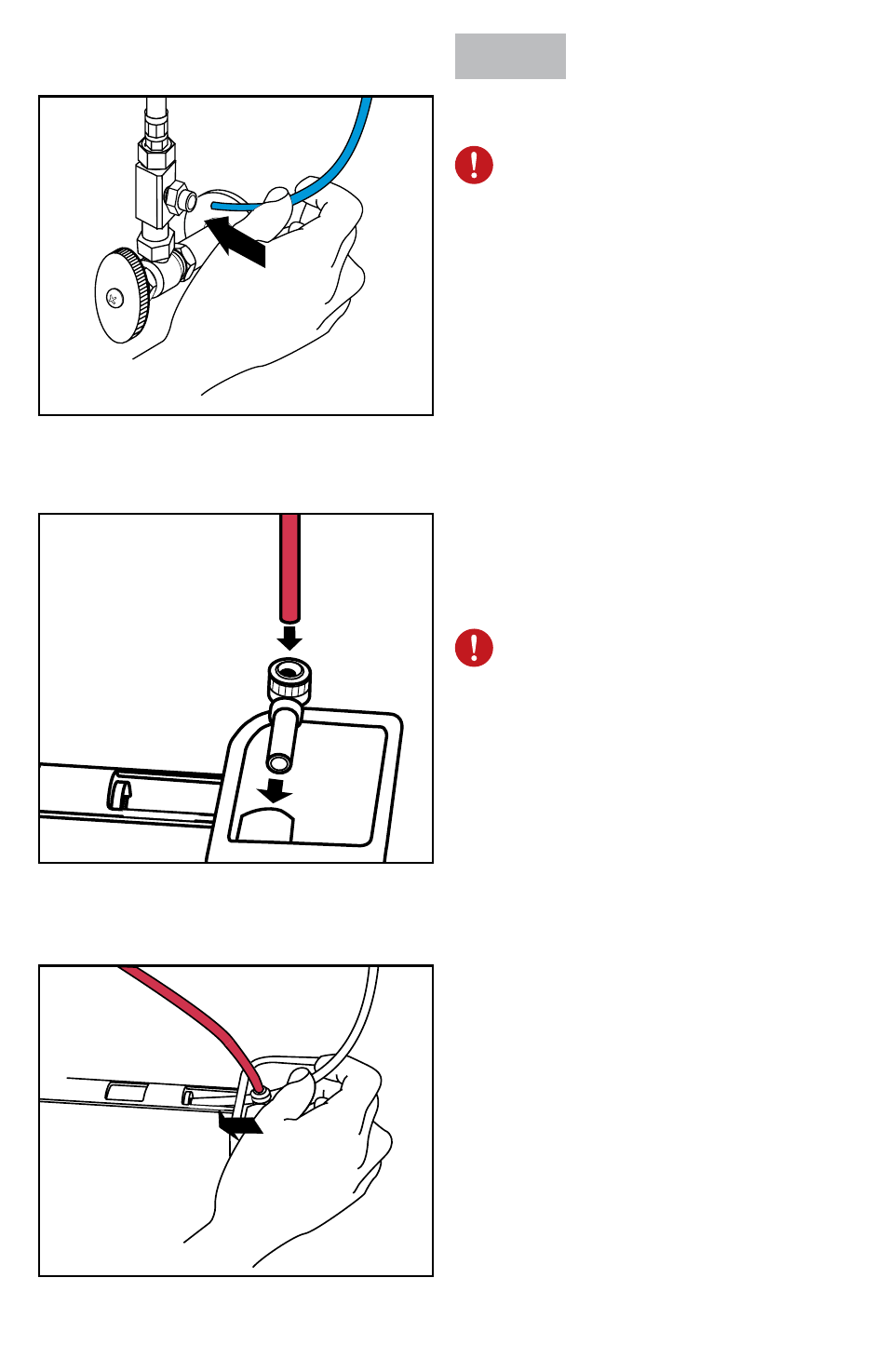

Trim the blue tube to length using a pair of
scissors.
Do not cut the tube too short.
Push the blue tube into the ¼" adapter. The tube
should enter the adapter approximately ⅜".
Position the Zuvo™ filter unit at the desired
location.
Trim the red and clear tubes to the appropriate
lengths.
Do not cut the tubes too short.
Push the red tube into the compression fitting on
the elbow adapter until fully seated.
Insert the elbow adapter in the inlet on the back of
the filter until fully seated.
Insert the clear tube in the outlet compression fit-
ting on the spine of the filter until fully seated.
