Factory Direct Hardware Hansgrohe 27835 Axor Carlton User Manual
Page 7
7

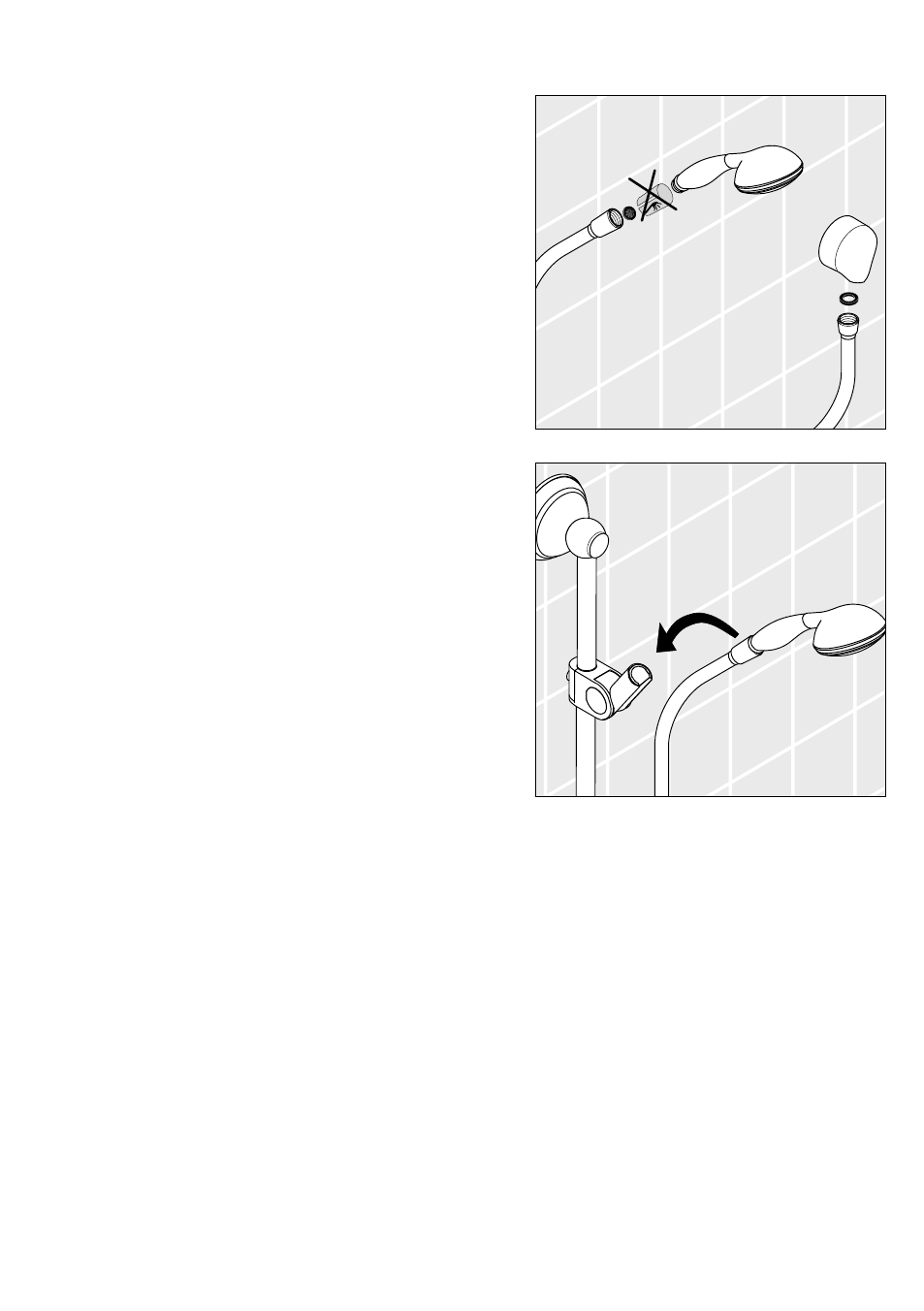

Install the handshower (not included)
Remove the protective cap from the handshower.
Place a black rubber hose washer in the shorter hose
end connection. Screw this end to the wall supply
(not included).
Place the screen washer in the longer hose end
connection. Screw this end of the hose to the
handshower.
Place the handshower and hose in the handshower
holder on the slider.
