Factory Direct Hardware Hansgrohe 27835 Axor Carlton User Manual
Page 4
4
Axor Terrano / Carlton / Phoenix Wallbar Installation

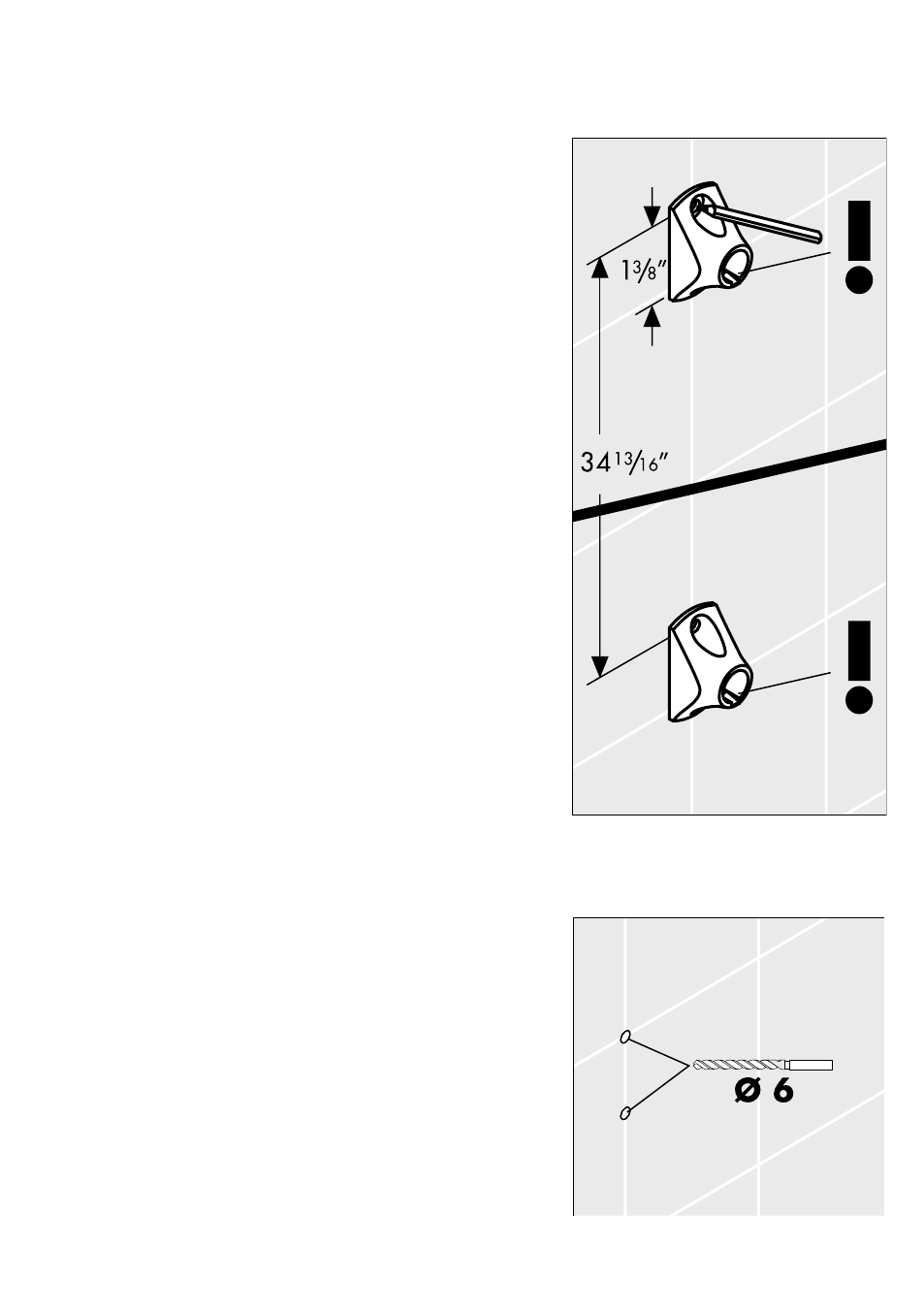

Mark the positions of the screw holes, using the holes on
the mounting pieces as a template. When positioning the
support element on the wall, make sure that the notch is at
the bottom.
Put the support elements in a safe place. Drill the holes
using a 6mm bit suitable for the wall surface.
