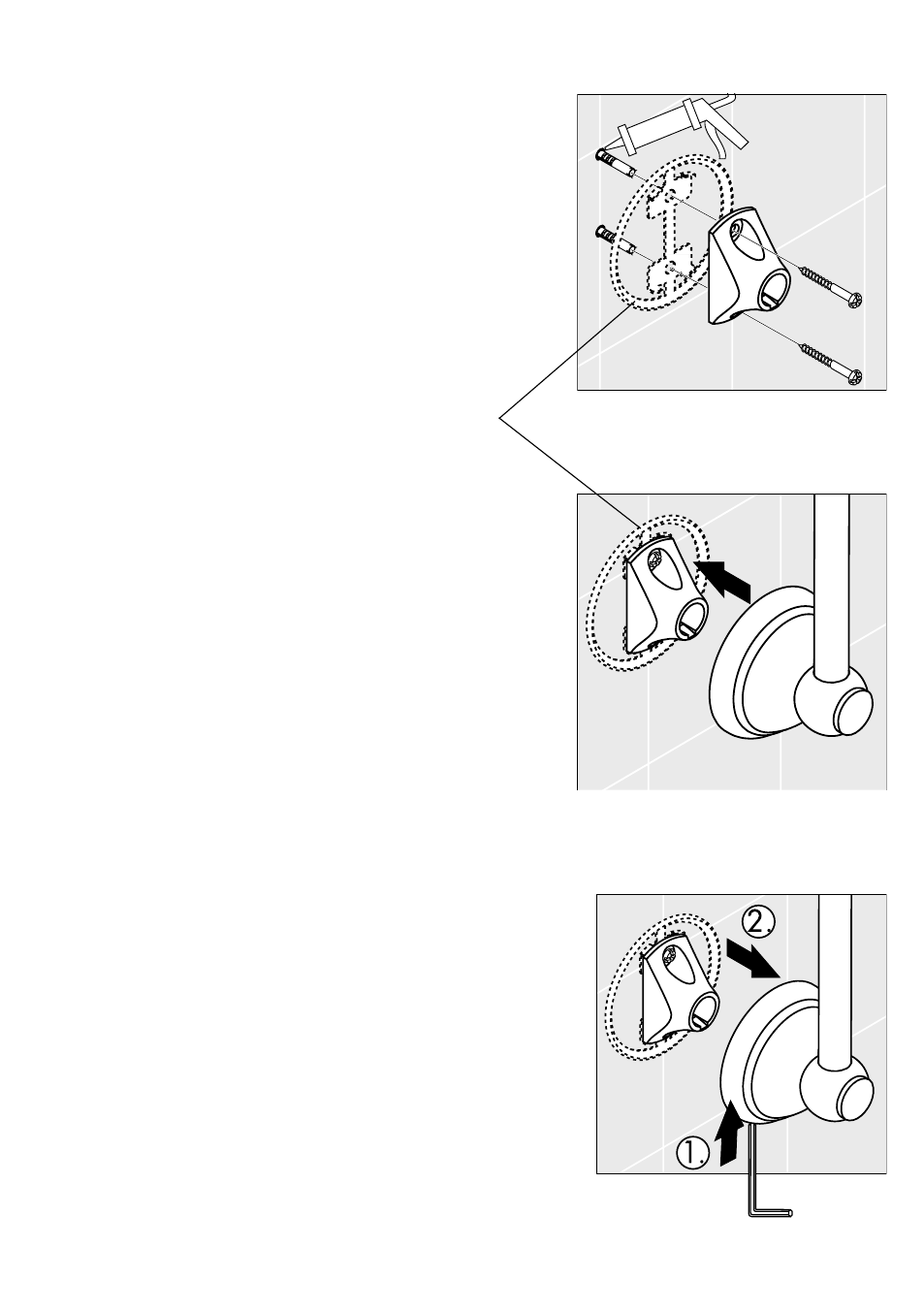

Install the anchors. Seal the wall around the anchors with
waterproof sealant.
Screw the support elements to the wall with the screws.
Note: the gold deco-rings shown in the diagram are
included only with Carlton model 27835090 (chrome
with gold accents). They are not used with other models.
Position the wallbar over the support elements. Press the
bar firmly into place.
Deco ring
Wallbar removal:
Insert a small tool, such as an Allen wrench, through the hole
in each escutcheon. Push upward against the retaining pin
very firmly (1). Pull “out” on the end of the wallbar (2).
