ELECTRICAL
WARNING
SHUT OFF POWER AND WATER BEFORE OPENING ANY SERVICE PANELS.
Dexter T600 washing machines are intended to be permanently installed
appliances. The machine should be connected to an individual branch circuit
not shared by lighting or other equipment. The connection should be sheathed
in liquid-tight flexible conduit, or equivalent, with conductors of the proper
size and insulation. No power cord is provided. Such connections should be
made by a qualified electrician, in accordance with the wiring diagram.
(Suggest minimum wire size of 12 ga.)
FUSING REQUIREMENTS
15 Amp Time Delay (Dual Element) Fuse(s) (or equivalent circuit breaker).
TO MAKE ELECTRICAL CONNECTIONS:
Remove screw and lift out cover located on upper left of machine (viewed from
back).

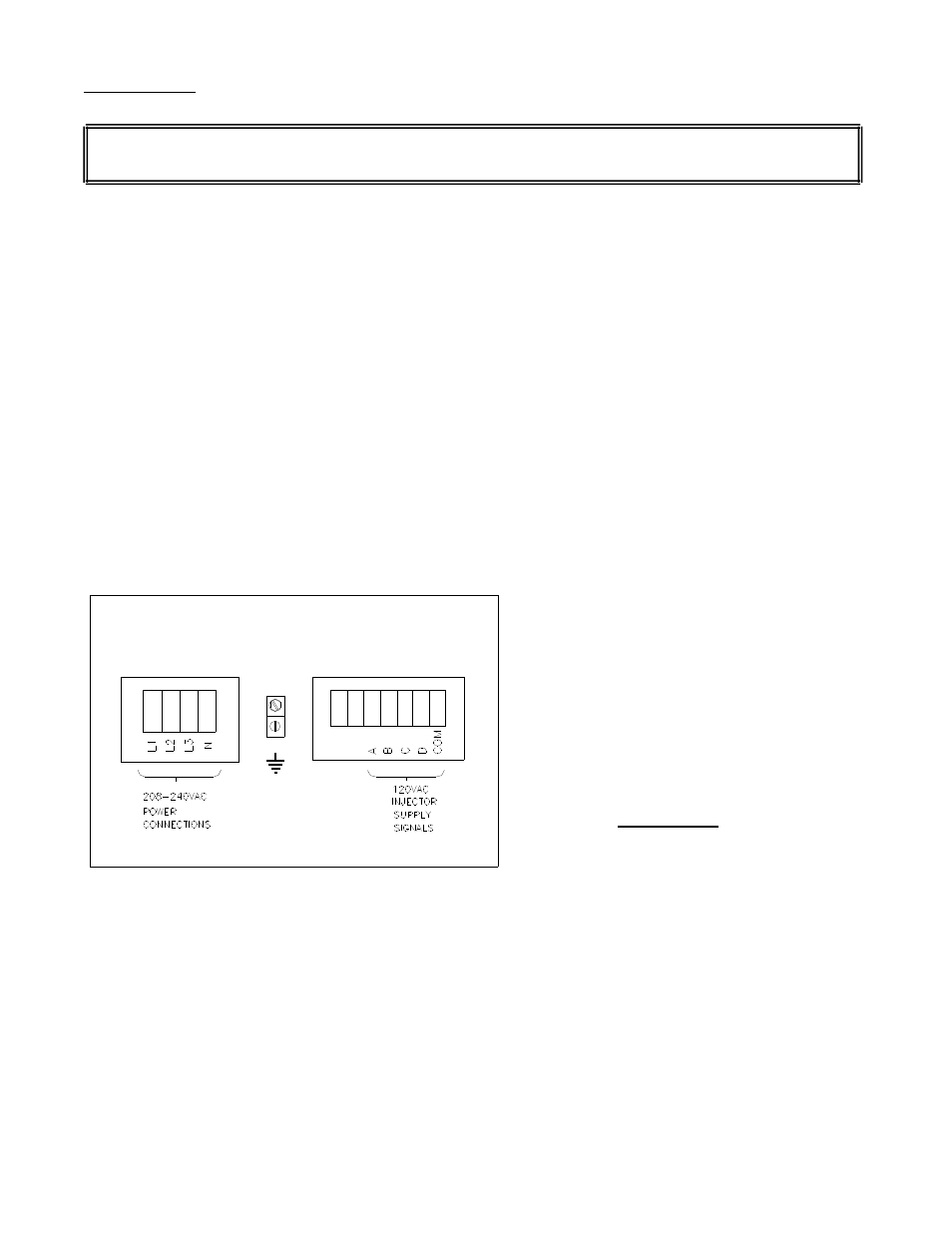

Figure 3 - Electrical Power Connections
If power is 208-240-3PH-60HZ
connect L1, L2, L3 and ground.
(If there is a high phase it must
be connected to L3.)
If power is 208-240-1PH-60HZ
connect L1, L2 and ground.
IMPORTANT
FOR SAFETY AND PROPER EQUIPMENT
OPERATION THE GROUND LUG MUST BE
CONNECTED TO A GOOD EXTERNAL
GROUND.
