-5-

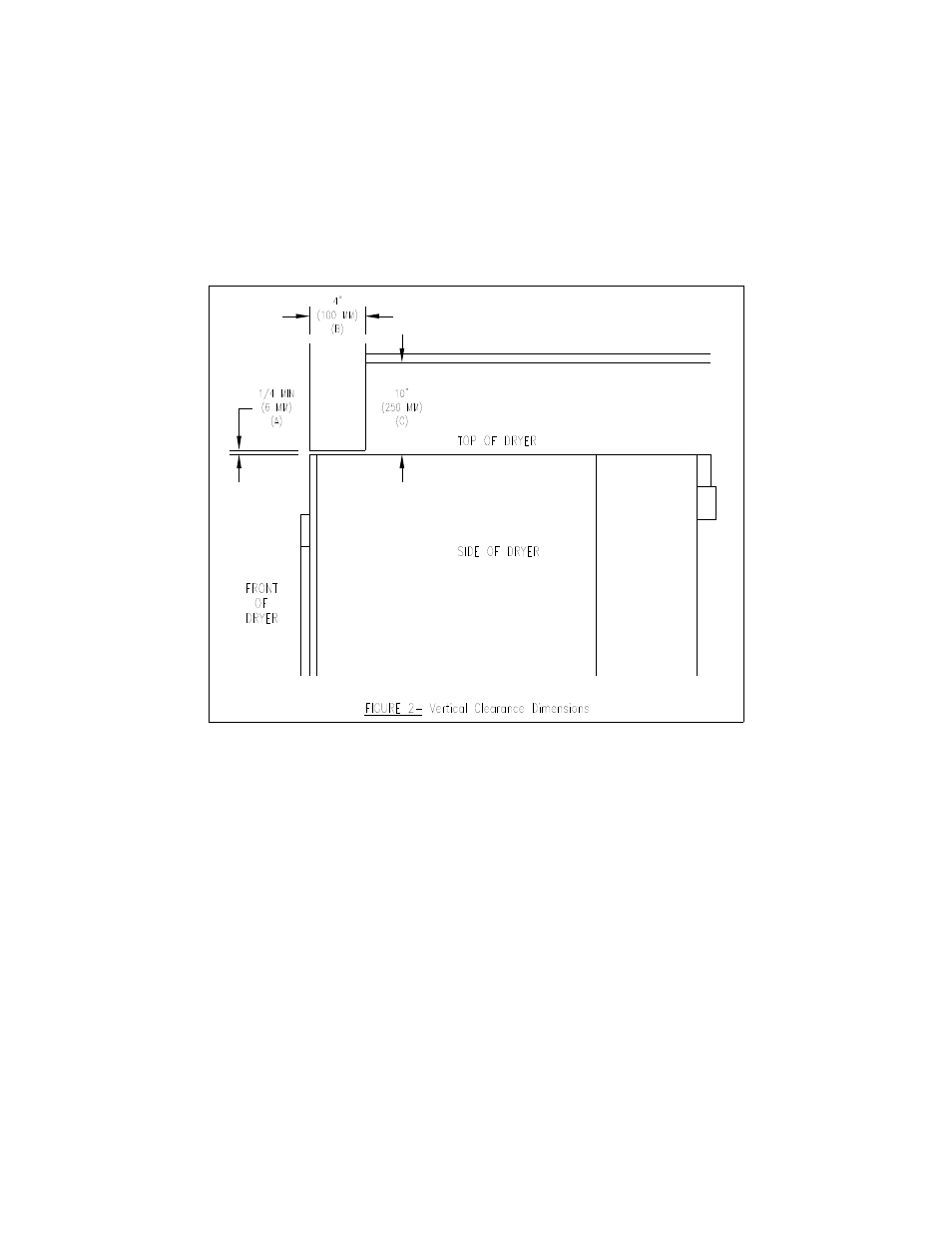

C. A 10 in. (254 mm) clearance is required from top at all other points.
VI. Floor This unit may be installed upon a combustible floor.
Do not obstruct the flow of combustion and ventilation air.
Maintain minimum of 1 in. (25 mm) clearance between duct and combustible material.
Refer to the label attached to the Belt Guard on the rear of the dryer for other installation
information and start-up instructions.
3. MAKE-UP AIR. Adequate make-up air (600CFM/DRUM (17 m
3
/Min.),
1200CFM/DRYER) (34 m
3
/Min.) must be supplied to replace air exhausted by dryers on all
types of installations. Provide a minimum of 1.5 sq. ft. (.14 m
2
) make-up air opening to the
outside of each dryer. This is a net requirement of effective area. Screens, grills or louvers,
which will restrict the flow of air, must be considered. Consult the supplier to determine the free
area equivalent for the grill being used.
The source of make-up air should be located sufficiently away from the dryers to allow an even
airflow to the air intakes of all dryers. Multiple openings should be provided.
4. ELECTRICAL REQUIREMENTS:
The electrical installation must be performed by a qualified electrical technician.
The electrical power requirements for both power sources to operate the unit satisfactorily are
listed on the serial plate located on the back panel of each dryer. The electrical connection
