10
3.6.1.2 Operating mode: electrical
zero-point center
• Adjust the slide switch (4) to the
“
” setting.
• Using the rotary switch (1), select
the corresponding measurement
range “A ...”.
• The needle should be located in
the center of the scale.
• Connect the multimeter and take
a reading from the lower scale.

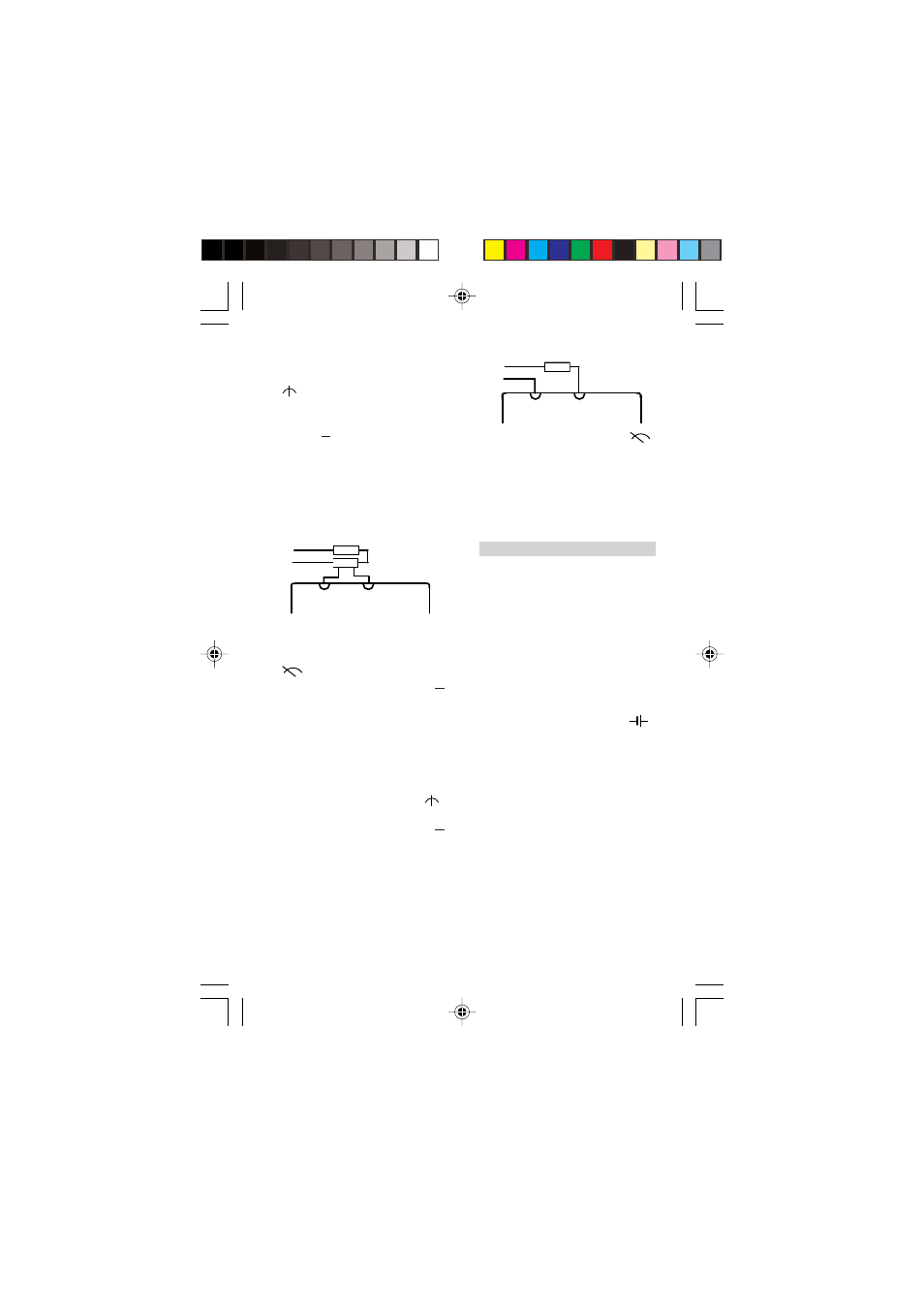

3.6.2 Measuring DC current using
shunts
_
+
3.6.2.1 Operating mode: Zero-point
left
•
Set the slide switch (4) to the
“
”.
•
Set the rotary switch (1) to the “V ...
100 mV” setting.
•
Connect the multimeter and the
take a reading from the upper
scale.
3.6.2.2 Operating mode: Zero-point
center
• Set the slide switch (4) to the “ ”
setting.
•
Set the rotary switch (1) to the “V ...
100 mV” position.
•
The needle should now point to
the center of the scale.
•
Connect the multimeter and take
a reading from the lower scale.
3.6.3 Measuring AC current
~
•
Set the slide switch (4) to the “ ”
setting.
•
Use the rotary switch (1) to select
the corresponding measurement
range “A
~
”.
•
Connect the multimeter and take
a reading from the upper scale.
4 Maintenance
4.1 Cleaning
• Only use a paintbrush or soft tow-
el to clean the multimeter. If stat-
ic electrical charge builds up on
the view window, this can be elim-
inated using a damp rag or an an-
tistatic agent.
4.2 Replacing the battery
•
If during the battery test the nee-
dle no longer deflects to the bat-
tery test zone depicted with “
”,
the battery must be replaced (see
3.1).
4.3 Replacing the fuse
•
The multimeter is equipped with
a safety fuse F3,15/250. The fuse
holder is located on the printed
circuit board. To replace the fuse
the device must be opened as de-
scribed in section 3.1.
