Operating controls – dbx 234s Crossover User Manual
Page 12
12
223s, 223xs,
234s, 234xs

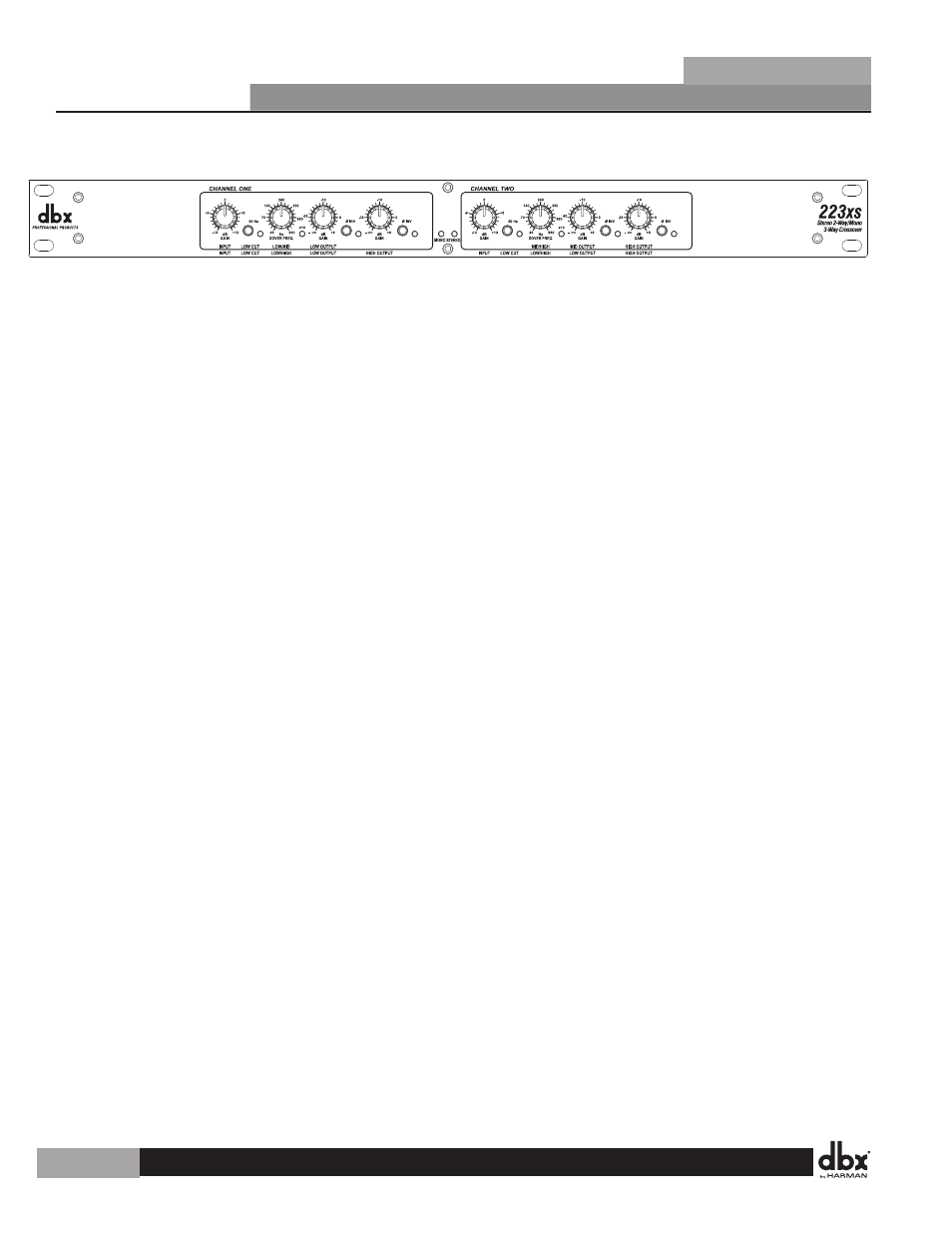

MONO 3-WAY MODE
In 3-way mono operation the controls are marked in red ABOVE the horizontal black line.
Front panel controls not described in this section are not active in mono 3-way mode. LEDs
are disabled for controls which are non-functional in this mode.
[1]
I
nput
G
aIn
Controls the input level with +/- 12 dB of gain.
[2]
L
ow
/M
Id
Selects crossover point between LOW and MID
frequencies.
[3]
L
ow
o
utput
Controls the LOW frequency output level with a
range of -∞ to +6 dB.
[4]
M
Id
/H
IGH
Selects the crossover point between MID and
HIGH frequencies.
[5]
M
Id
o
utput
Controls the MID frequency output level with a
range of -∞ to +6 dB.
[6]
H
IGH
o
utput
Controls the HIGH frequency output level with a
range of -∞ to +6 dB.
[7]
L
ow
C
ut
Switch for selecting the 40 Hz high pass filter. An
LED indicates the selection.
[8]
x
10 LEd
Indicates that the LOW/MID crossover range is
450 Hz to 9.6 kHz.
[9]
p
HasE
I
nvErt
Switch for reversing the polarity on the LOW
Output. An LED indicates that the phase is
reversed.
[10] M
ono
LED indicating mono mode operation.
[11]
x
10 LEd
Indicates that the MID/HIGH crossover frequency
range is 450 Hz to 9.6 kHz
[12]
p
HasE
I
nvErt
Switch for reversing the polarity on the MID
Output. An LED indicates that the phase is
reversed.
[13]
p
HasE
I
nvErt
Switch for reversing the polarity on the High
Output. An LED indicates that the phase is
reversed.
Section 2
Operating Controls
7
1 2 3 4 5 6
7 8 9 10 11 12 13
