TR1616 Owner’s Manual 6

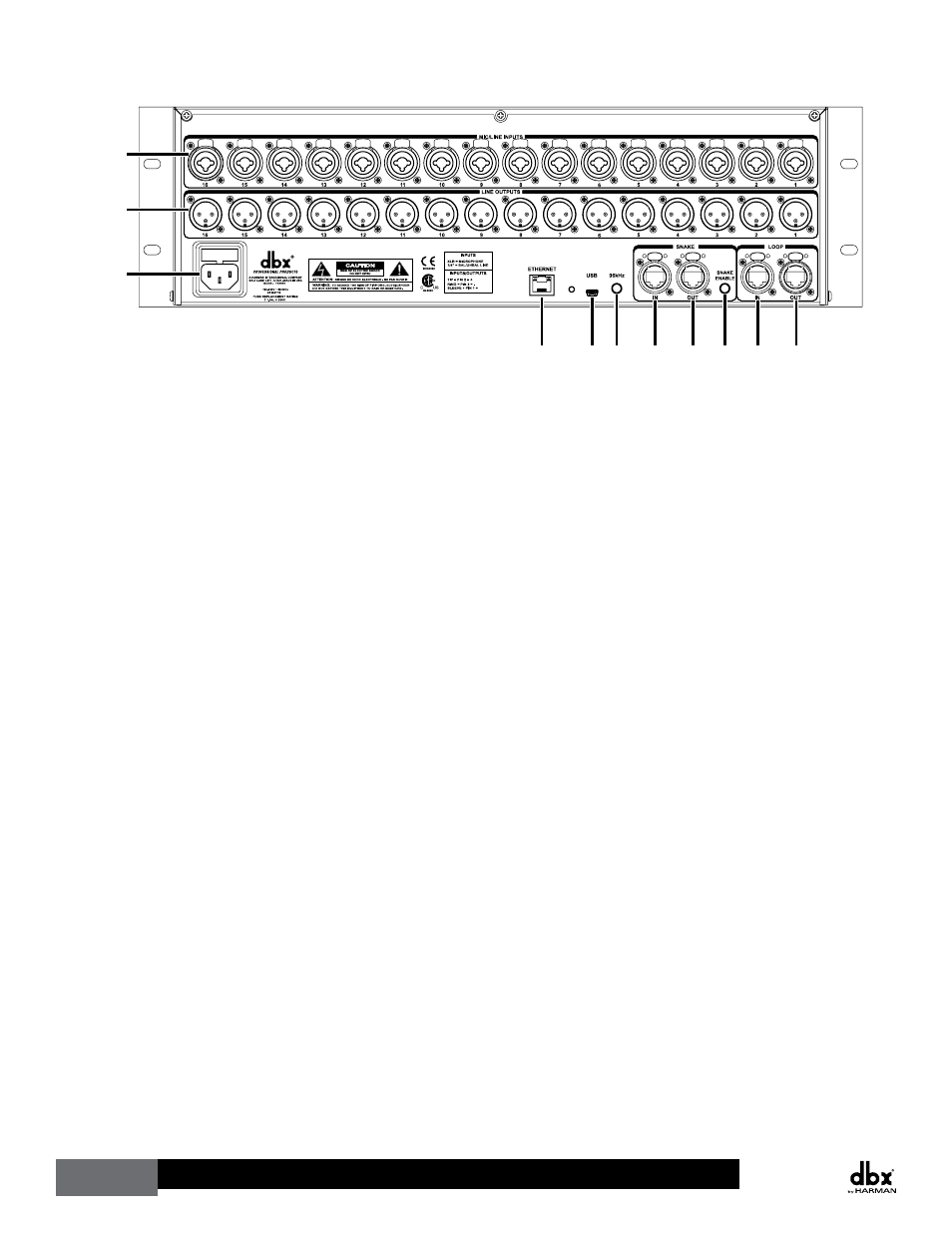

Rear Panel
1
2
3
5 4 7 8 10 11 6 9
1� INPUTS
These combination analog input jacks accept: 1/4” or XLR type plugs, line level or mic
level signals, and balanced or unbalanced connections.
2� OUTPUTS
These XLR analog output jacks output a balanced analog signal, received and converted
from the BLU link audio network.
3� AC Power Inlet
Provides power to the TR1616 using the provided IEC type AC power cord. A fuse drawer
provides access to the fuse. Replace with same type fuse only.
4� ETHERNET Port
This port allows for future expansion of the TR1616’s feature set.
5� USB Port
Using a standard Mini USB cable, this port is used for connecting a PC for updating the
TR1616’s firmware.
6� 96 kHz Button
Engage this button when connecting to a BLU link network operating at a 96 kHz
sampling rate. Disengage this button when connecting to a BLU link network operating
at a 48 kHz sampling rate.
Note:
BLU link supports 256 channels at 48 kHz and 128 channels at 96 kHz.
7� SNAkE IN Port
When using two or more TR1616s in a digital snake network, connect this Ethercon
connector to the SNAKE OUT port on the sending TR1616 device.
