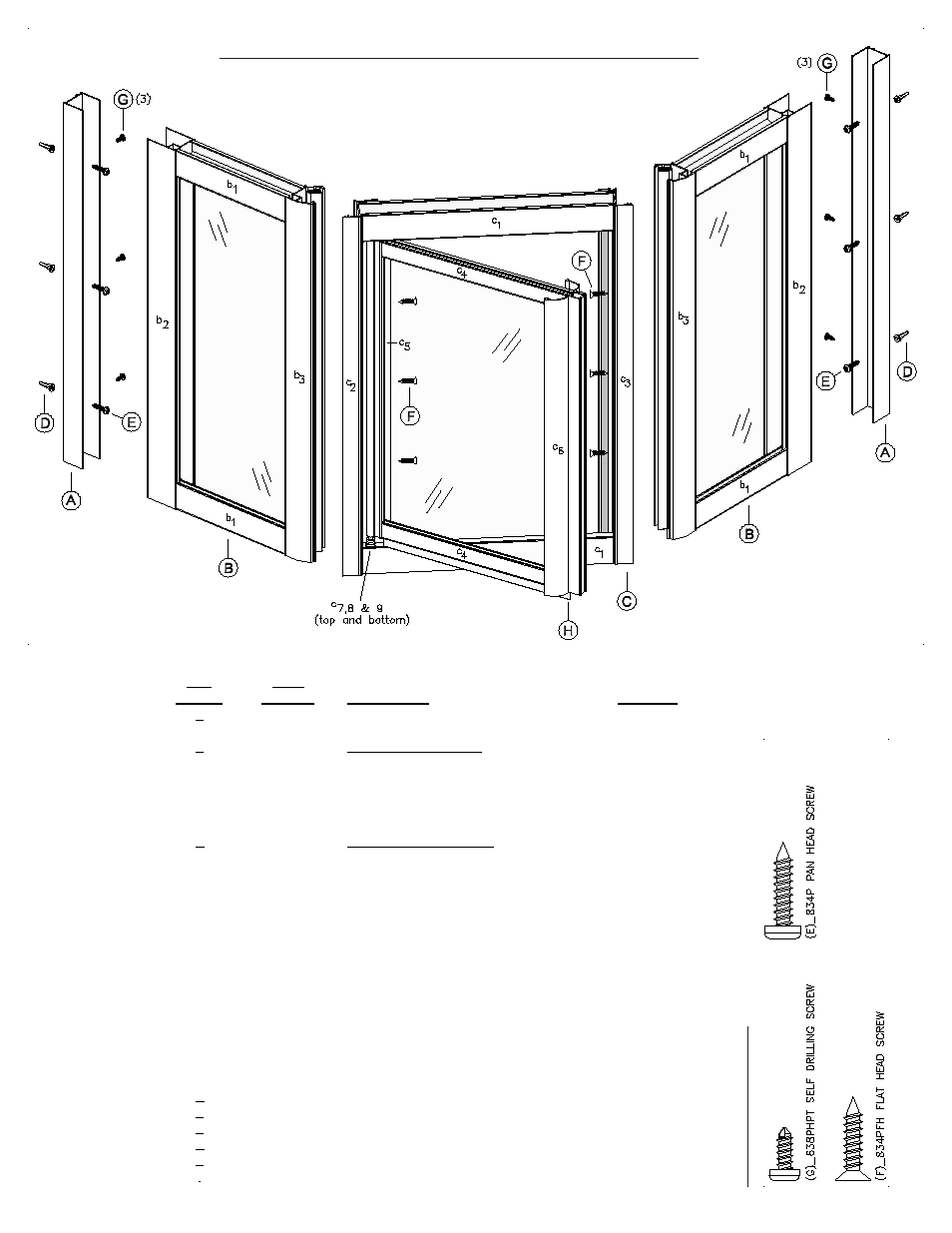

EXPLODED VIEW OF MODULAR NEO-ANGLE
(LEFT HAND PIV0T SHOWN)
Unit Installation Screws
(shown full size)
PARTS LIST
KEY PART
LETTER NUMBER DESCRIPTION QUANTITY
A 201 WALL JAMB 2
B ---- SIDE PANEL ASSEMBLY 2
b1 210 SIDE PANEL RAILS 4
b2 202 SIDE PANEL EXPANDER 2
b3 243 SIDE PANEL CORNER POST 2
b4 834 SIDE PANEL ASSEMBLY SCREW (not shown) 8
C ---- DOOR FRAME ASSEMBLY 1
c1 240 DOOR FRAME HEADER / SILL 2
c2 245 DOOR FRAME PIVOT POST 1
c3 241 DOOR FRAME STRIKE POST 1
c4 227 DOOR PANEL FRAMES 2
c5 229 DOOR PANEL PIVOT STILE 1
c6 226 DOOR PANEL STRIKE STILE 1
c7 CP201 PIVOT PIN (not shown) 2
c8 CP209 PIVOT BUSHING 2
c9 FW 10-093 PLASTIC PIVOT WASHER 2
c10 9842 MAGNETIC STRIPS 2
c11 ---- (designation not used) --
c12 6112FHSL DOOR PANEL ASSEMBLY SCREW (not shown) 4
c13 834 DOOR FRAME ASSEMBLY SCREW (not shown) 8
c14 C173B DOOR GLAZING VINLY (not shown)
D 1329 PLASTIC SCREW ANCHOR 6
E 834P #8 x 3/4" PAN HEAD PHILLIPS SCREW 6
F 834PFH #8 x 3/4" FLAT HEAD PHILLIPS SCREW 6
G 638PHPT #6 x 3/8" SELF DRILLING PHILLIPS SCREW 6
H C176B VINYL SWEEP 1
I C202B PANEL GLAZING VINYL (not shown)
