2

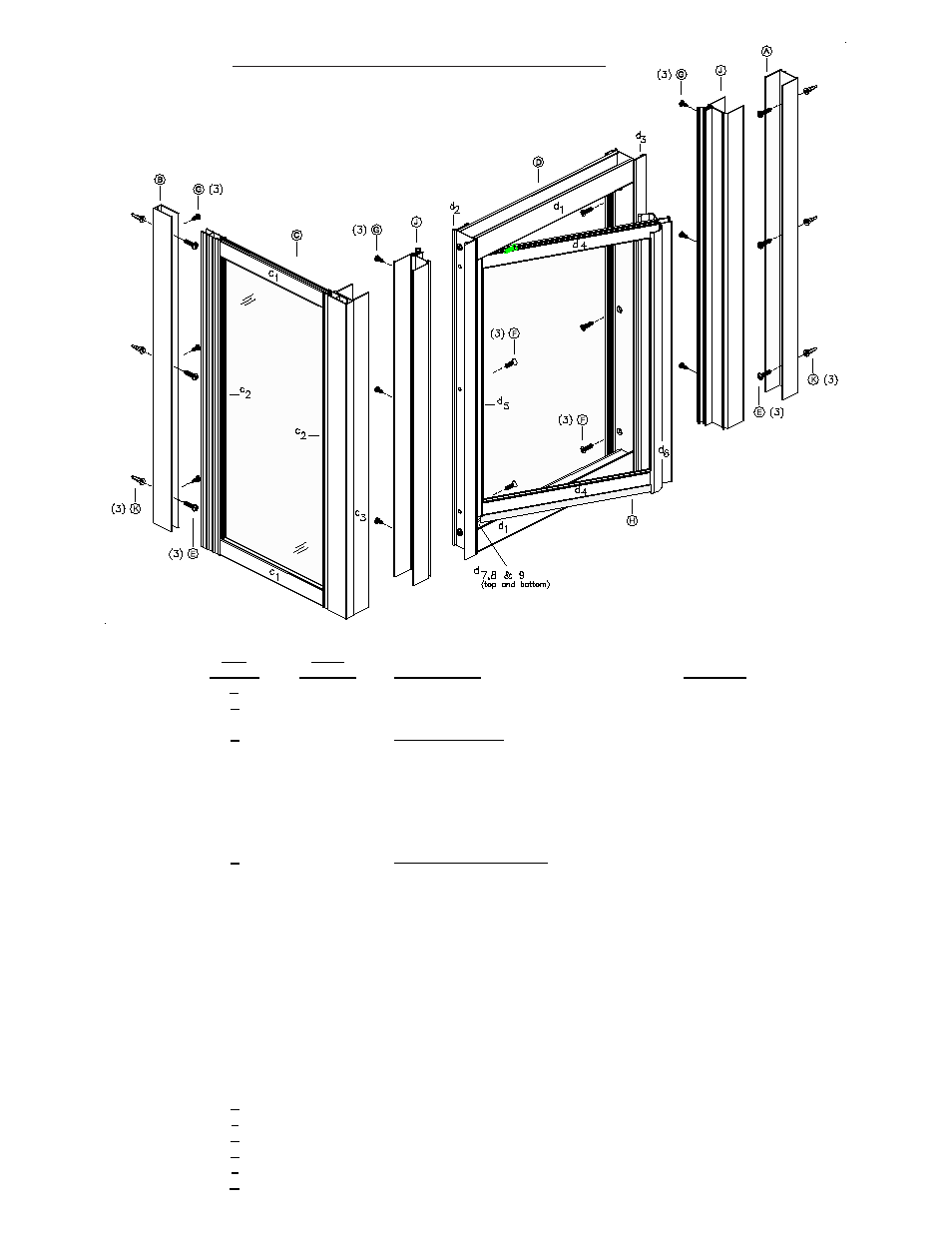

EXPLODED VIEW OF MODULAR CORNER UNIT

(LEFT HAND PIV0T SHOWN)

PARTS LIST

KEY

PART

LETTER

NUMBER

DESCRIPTION

QUANTITY

A

201

WALL JAMB (door)

1

B

271

WALL JAMB (panel)

1

C

----

PANEL ASSEMBLY

c1

249

Panel Rails

2

c2

250

Panel Stiles

2

c3

225

90 Degree Corner Post Adapter (attached)

1

c4

834

Panel Assembly Screws (not shown)

4

c5

C154B

Panel Glazing Vinyl (not shown)

c6

638PHPT

#6 x 3/8" Screw (90 degree to Panel)(not shown)

3

D

----

DOOR FRAME ASSEMBLY

1

d1

240

Door Frame Header / Sill

2

d2

245

Door Frame Pivot Post

1

d3

241

Door Frame Strike Post

1

d4

227

Door Panel Rails

2

d5

229

Door Panel Pivot Stile

1

d6

226

Door Panel Strike Stile

1

d7

CP201

Pivot Pin (not shown)

2

d8

CP209

Pivot Bushing (not shown)

2

d9

FW 10-093

Plastic Pivot Washer (not shown)

2

d10

98-42

Magnetic Strips (not shown)

2

d11

----

(designation not used)

--

d12

6112FHSL

Door Panel Assembly Screw (not shown)

4

d13

834

Door Frame Assembly Screw (not shown)

8

d14

C173B

Door Glazing Vinyl (not shown)

E

8112

#8 x 1-1/2" PAN HEAD PHILLIPS SCREW

6

F

834PFH

#8 x 3/4" FLAT HEAD PHILLIPS SCREW

6

G

638PHPT

#6 x 3/8" SELF DRILLING PHILLIPS SCREW

9

H

C176B

VINYL SWEEP

1

J

244

EXPANDER JAMB

2

K

1329

PLASTIC SCREW ANCHOR

6
