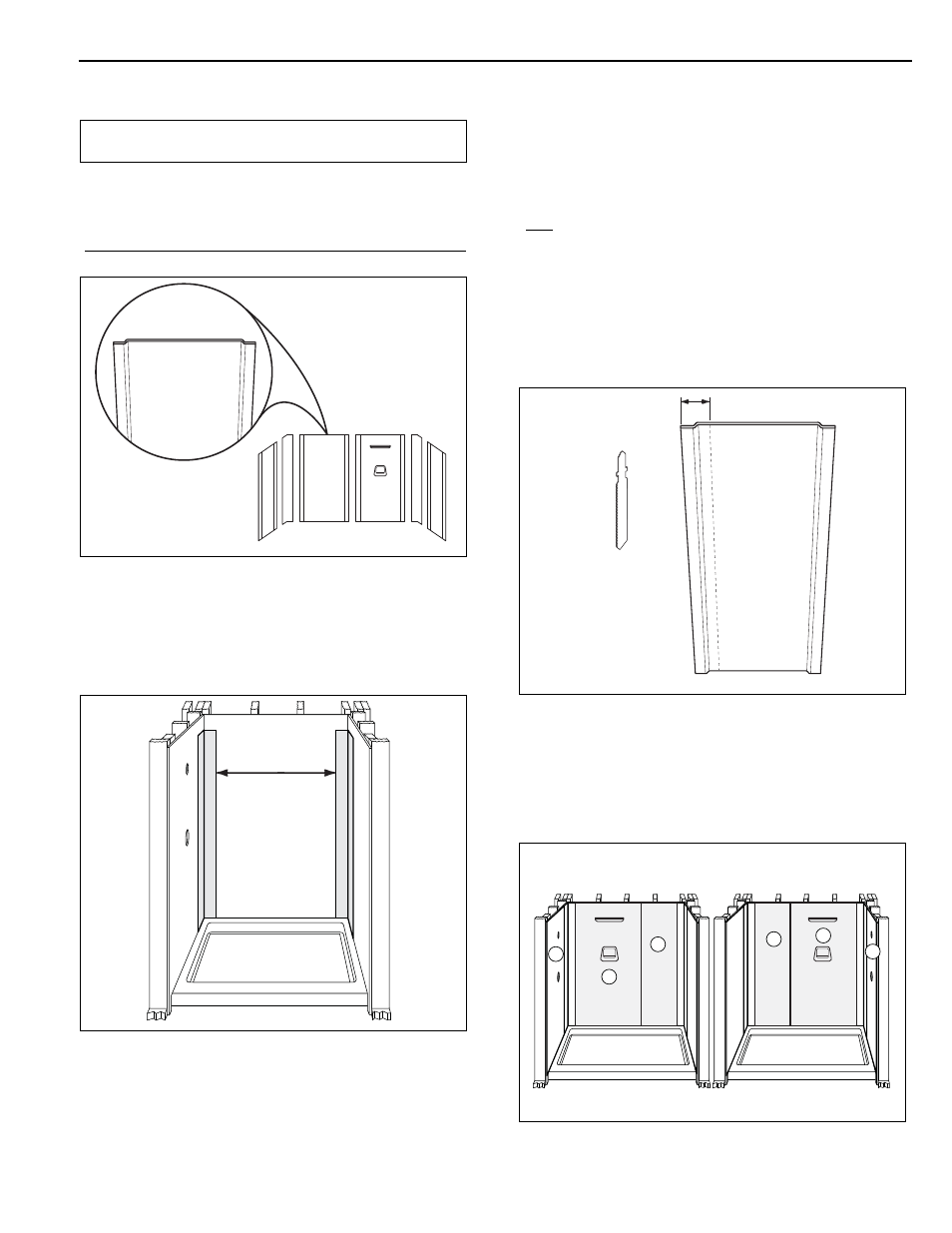

Extension Panel (Model SW-7060)
This kit has an extension panel to fit back wall
measurements from 36 to 60 inches wide. The extension
panel is the same size as the side panels, but it has two
overlapping edges and is clearly marked on the back.
Note: For the SW-7060 Wall Kit, measure the distance
between the back wall edges of the two installed corner
panels. If the back wall measurement is 29 to 47
inches, refer to Step 1. If the back wall measurement is
47 to 51 inches, refer to Step 3.
1.
Measure the distance between the back wall edges
of the two installed corner panels. Subtract
23 inches from this measurement to determine the
minimum required width of the extension panel.
Example :
36 in = width between back wall corner panels
-23 in = minimum coverage width (with 1 inch overlaps)
13 in = width of cut extension panel (minimum)
Note: If the back wall measurement is 29 inches or
less, cut the extension panel to a 6 inch width. DO NOT
CUT THE EXTENSION PANEL TO A WIDTH LESS
THAN 6 inches wide.
2.
Extension panel (A) should be installed at the
opposite end of the shower, away from showerhead
(C). This allows installation of back panel (B) with
the soap dish and shampoo shelf closer to the
showerhead.
B
C
A
C
B
A
