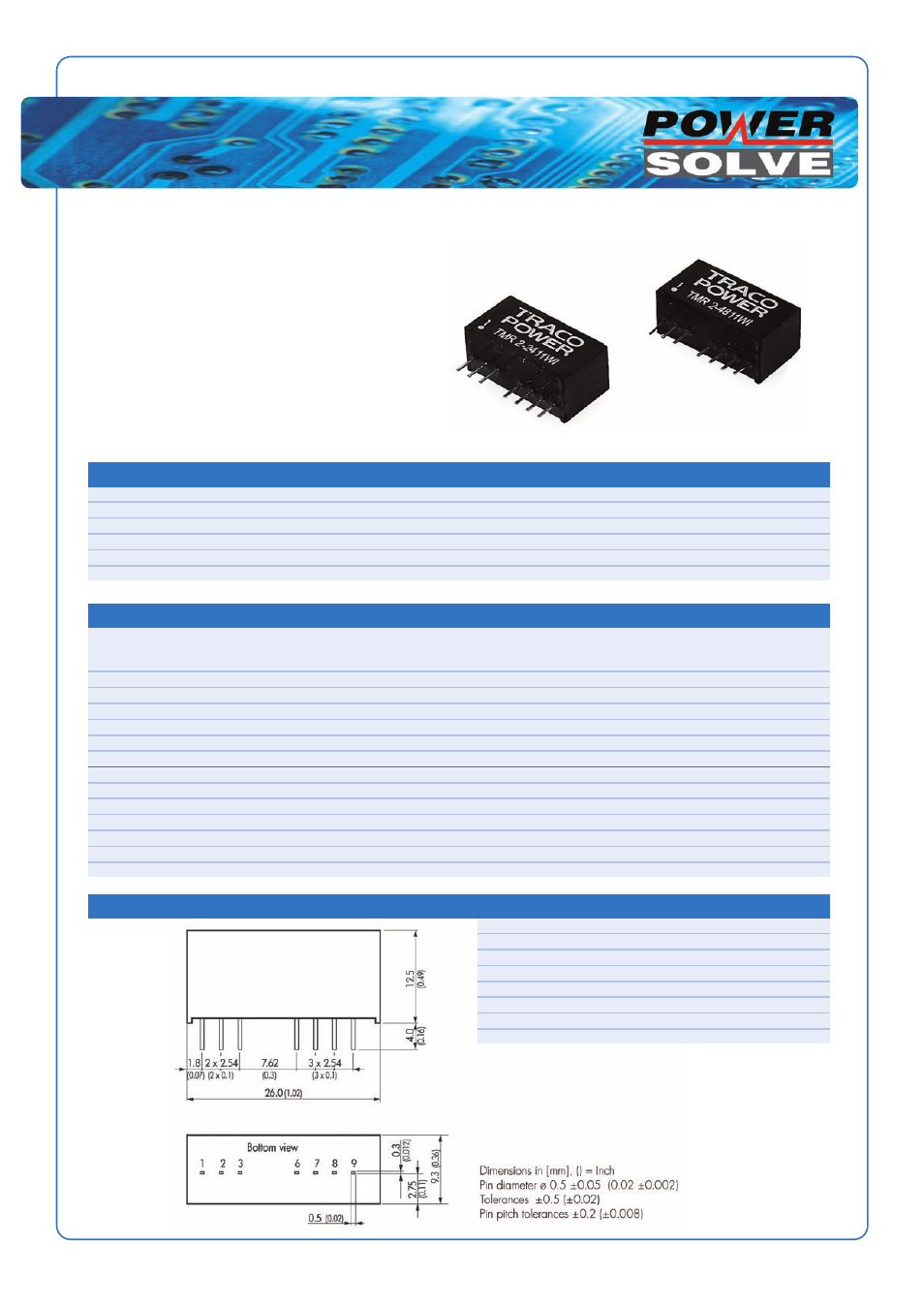

Powersolve TMR2WI Series - Manual

Powersolve Electronics Ltd. 8A Arnhem Road, Newbury, RG14 5RU. England
Tel: 01635 521858 Fax: 01635 523771 Email: [email protected]
DC-DC Converters
TMR2WI Series
Features
• Miniature SIP package
• Ultra wide 4:1 input range
• Fully regulated outputs
• I/O isolation 1500VDC
• Operating temperature range -40°C to +85°C
• Low ripple and noise
• Short circuit protection
• Remote On/Off
Electrical Specification
Short Circuit Protection continuous, automatic recovery
Operating Temperature Range -40°C to +85°C (derate at 3.3%/K above 70°C)
I/O Isolation test voltage 1500VDC
Safety Approvals cUL/UL 60950-1, IEC/EN 60950-1
Casing plastic (UL94V-0 rated)
Remote On/Off shutdown input for low input current (1mA) in standby operation
Output Voltage and Current Ratings
MODEL INPUT OUTPUT OUTPUT RIPPLE & LINE LOAD EFF.
VOLTAGE VOLTAGE CURRENT NOISE REG. REG.
TMR2-2410WI 3.3VDC 500mA 50mV pk-pk max. 0.5% 0.75% 71%
TMR2-2411WI 5VDC 400mA 50mV pk-pk max. 0.5% 0.75% 86%
TMR2-2412WI 12VDC 165mA 50mV pk-pk max. 0.5% 0.75% 79%
TMR2-2413WI 9 - 36V 15VDC 135mA 50mV pk-pk max. 0.5% 0.75% 80%
TMR2-2421WI ±5VDC ±200mA 50mV pk-pk max. 0.5% 1.0% 73%
TMR2-2422WI ±12VDC ±85mA 50mV pk-pk max. 0.5% 1.0% 77%
TMR2-2423WI ±15VDC ±65mA 50mV pk-pk max. 0.5% 1.0% 79%
TMR2-4810WI 3.3VDC 500mA 50mV pk-pk max. 0.5% 0.75% 70%
TMR2-4811WI 5VDC 400mA 50mV pk-pk max. 0.5% 0.75% 72%
TMR2-4812WI 12VDC 165mA 50mV pk-pk max. 0.5% 0.75% 79%
TMR2-4813WI 18 - 75V 15VDC 135mA 50mV pk-pk max. 0.5% 0.75% 78%
TMR2-4821WI ±5VDC ±200mA 50mV pk-pk max. 0.5% 1.0% 70%
TMR2-4822WI ±12VDC ±85mA 50mV pk-pk max. 0.5% 1.0% 76%
TMR2-4823WI ±15VDC ±65mA 50mV pk-pk max. 0.5% 1.0% 76%
Mechanical and Connection Details
Pin Single Output Dual Output
1 -Vin (GND) -Vin (GND)
2 +Vin (Vcc) +Vin (Vcc)
3 Remote On/Off Remote On/Off
6 +Vout +Vout
7 No Conn. Common
8 No Conn. No Conn.
9 -Vout -Vout
www.powersolve.co.uk
