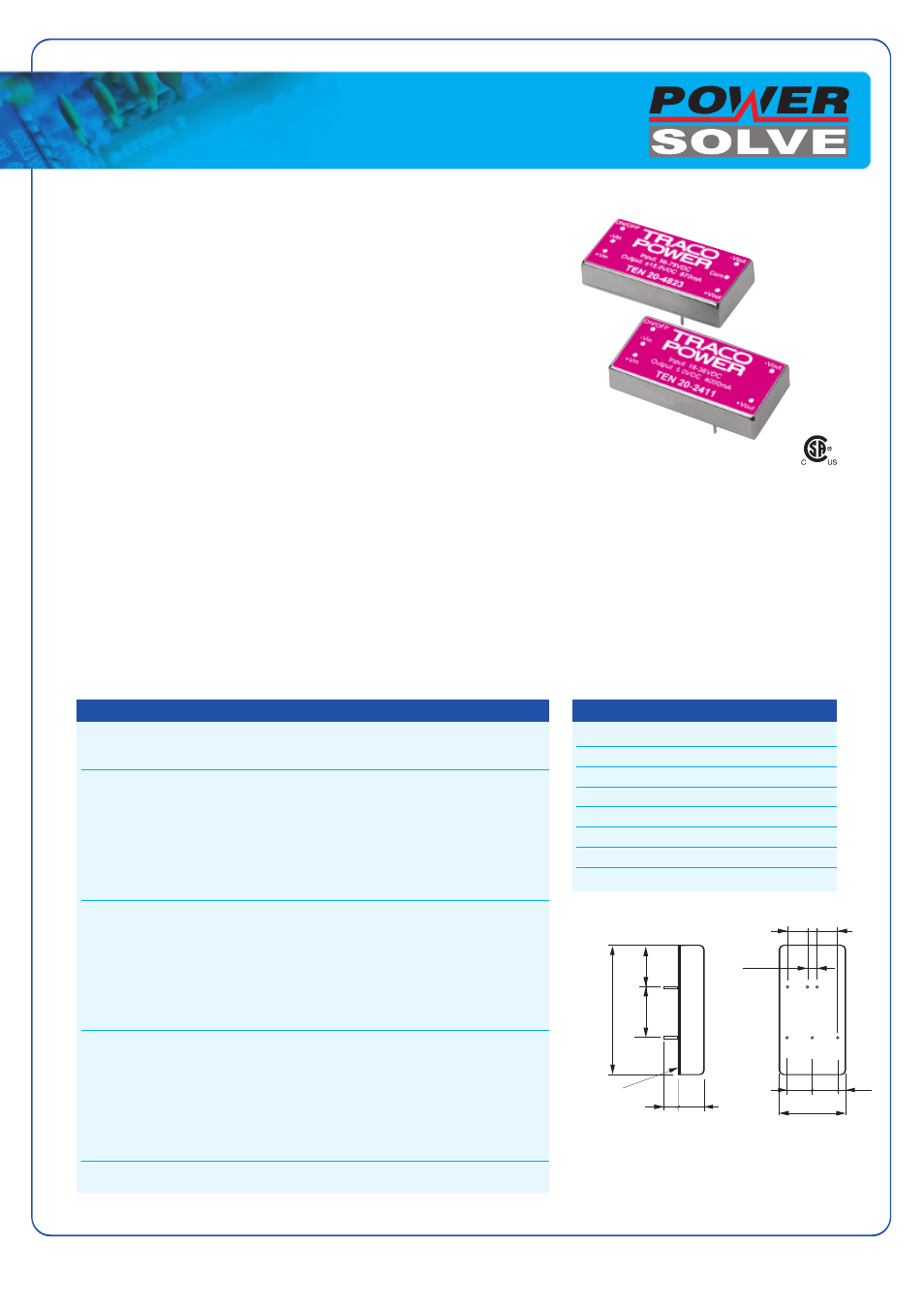

Powersolve TEN20 Series - Manual

www.powersolve.co.uk
Powersolve Electronics Ltd. 8A, Arnhem Road, Newbury, RG14 5RU. England
Tel:01635 521858 Fax: 01635 523771 Email: [email protected]
Order Code Input voltage Output voltage Output current
max.
TEN 20-1210 3.3 VDC 4000 mA
TEN 20-1211 5 VDC 4000 mA
TEN 20-1212 9 – 18 VDC 12 VDC 1670 mA
TEN 20-1213 15 VDC 1340 mA
TEN 20-1222 ±12 VDC ±835 mA
TEN 20-1223 ±15 VDC ±670 mA
TEN 20-2410 3.3 VDC 4000 mA
TEN 20-2411 5 VDC 4000 mA
TEN 20-2412 18 – 36 VDC 12 VDC 1670 mA
TEN 20-2413 15 VDC 1340 mA
TEN 20-2422 ±12 VDC ±835 mA
TEN 20-2423 ±15 VDC ±670 mA
TEN 20-4810 3.3 VDC 4000 mA
TEN 20-4811 5 VDC 4000 mA
TEN 20-4812 36 – 75 VDC 12 VDC 1670 mA
TEN 20-4813 15 VDC 1340 mA
TEN 20-4822 ±12 VDC ±835 mA
TEN 20-4823 ±15 VDC ±670 mA
= High Power Density in 51x25x10 mm Package
= Wide 2:1 Input Range
= Very high Efficiency up to 89%
= Operating Temperature Range –40°C to +85°C
= I/O Isolation 1500 VDC
= Short Circuit Protection
= Remote On/Off
= Industry Standard Pinout
DC/DC Converters
TEN 20 Series, 20 Watt
Models
Pin Single Output Dual Output
1 + Vin (Vcc) + Vin (Vcc)
2 – Vin (GND) – Vin (GND)
3 + Vout + Vout
4 No pin Common
5 – Vout – Vout
6 Remote On/Off Remote On/Off
Pin-Out
20.32
10.2 6
50.8
25.4
2 1
54 3
Bottom view
10.16
15.2
2.5
Insulated Baseplate
(1.0)
(0.1)
(0.4) (0.24)
(2.0) (0.8)
(0.6)
(0.4)
7.62
(0.3)
6
7.62
(0.3)
10.16
(0.4)
5.08 (0.2)
() = Inches Pin Ø 1.0 mm (0.04)
Line regulation: ±0.3% max.
Load regulation: – Single output models: ±0.5% max.
– Dual output models: ±1.0% max.
Ripple & Noise: <80 mVpk-pk (20 MHz BW)
Conducted EMI: EN 55022, class A and FCC, level A
Short circuit protection: continuous, automatic recovery
Efficiency: 85% typ.
Operating temperature range: –40°C ... +85°C above 70°C derating 3.5%/°C
5V models: above 60°C derating 4%/°C
I/O isolation voltage: 1500 VDC
Safety standards / approvals: cUL/UL 60950, IEC/EN 60950
Case: metal, 6-side shielded with insulated baseplate
Remote On/Off: shutdown input for low input current (5 mA) in standby operation
UL60950
