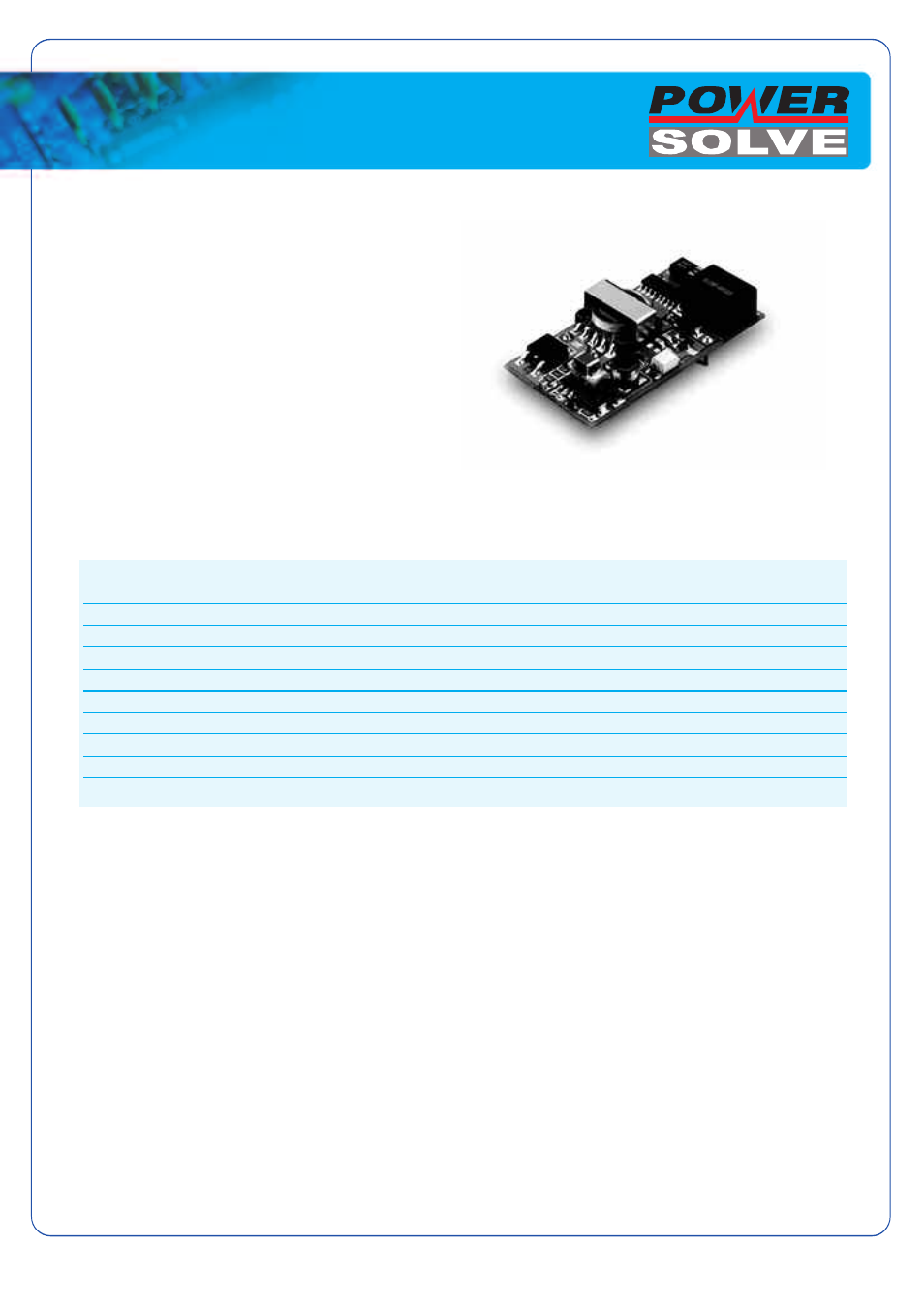

Powersolve PS15B Series User Manual
Dc-dc converters
www.powersolve.co.uk
Powe rsolve Electronics Ltd. 8A, Arnhem Road, Newbury, RG14 5RU. England
Tel:01635 521858 Fax: 01635 523771 Email: [email protected]
DC-DC Converters
PS15B Series
10.8 - 15 Watt Open Frame
PCB Mounting
Single Output
Features
•
10.8 - 15W Isolated Output
•
Efficiency to 87%
•
Fixed Switching Frequency
•
2 : 1 Input Range
•
Regulated Outputs
•
Continuous Short Circuit Protection
•
Pi Input Filter
MODEL
INPUT
OUTPUT
OUTPUT CURRENT
INPUT CURRENT
%EFF
VOLTAGE
VOLTAGE
MIN
MAX
NO LOAD
FULL LOAD
PS15B-24-1V8
18-36 VDC
1.8 VDC
0 mA
6000 mA
30 mA
542 mA
83
PS15B-24-2V5
18-36 VDC
2.5 VDC
0 mA
6000 mA
30 mA
735 mA
85
PS15B-24-3V3
18-36 VDC
3.3 VDC
0 mA
4500 mA
30 mA
720 mA
86
PS15B-24-05
18-36 VDC
5 VDC
0 mA
3000 mA
40 mA
718 mA
87
PS15B-48-1V8
36-72 VDC
1.8 VDC
0 mA
6000 mA
30 mA
271 mA
83
PS15B-48-2V5
36-72 VDC
2.5 VDC
0 mA
6000 mA
30 mA
364 mA
86
PS15B-48-3V3
36-72 VDC
3.3 VDC
0 mA
4500 mA
30 mA
356 mA
87
PS15B-48-05
36-72 VDC
5 VDC
0 mA
3000 mA
40 mA
360 mA
87
NOTE: 1. Nominal Input Voltage 24 or 48 VDC
