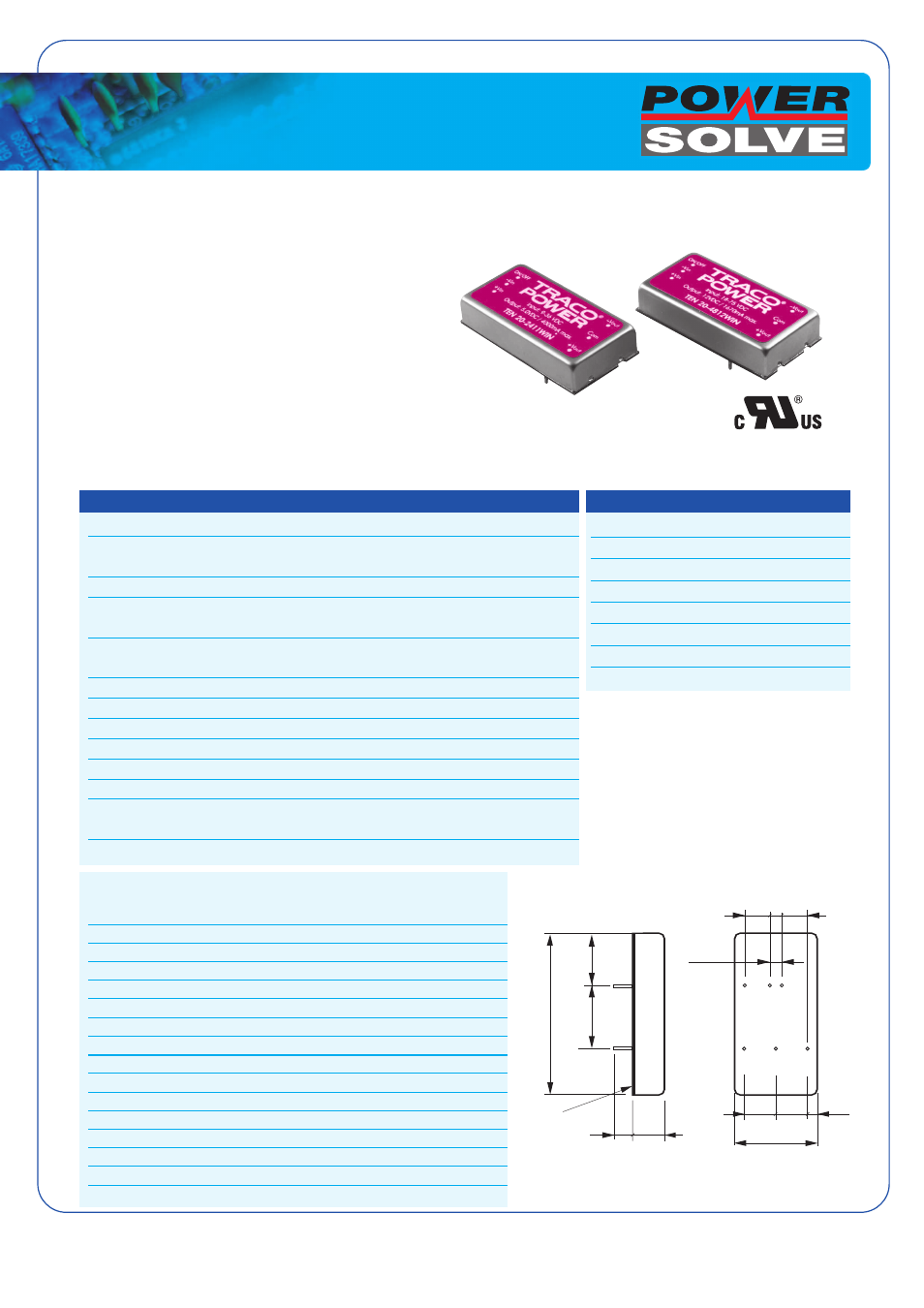

Powersolve TEN20WIN Series User Manual
Dc-dc converters, Ten 20win series 20 watt, Features
Powersolve Electronics Ltd. Units 8A, Arnhem Road, Newbury, RG14 5RU. England
Tel:01635 521858 Fax: 01635 523771 Email: [email protected]
www.powersolve.co.uk
DC-DC Converters
TEN 20WIN Series
20 Watt
MODEL INPUT
OUTPUT
OUTPUT
CURRENT
VOLTAGE VOLTAGE
MAX.
TEN 20-2410WIN
3.3 VDC 5500 mA
TEN 20-2411WIN
5 VDC 4000 mA
TEN 20-2412WIN
12 VDC
1670 mA
TEN 20-2413WIN
9 – 36 VDC
15 VDC
1330 mA
TEN 20-2421WIN
±5 VDC
±2000 mA
TEN 20-2422WIN
±12 VDC
±835 mA
TEN 20-2423WIN
±15 VDC
±665 mA
TEN 20-4810WIN
3.3 VDC 5500 mA
TEN 20-4811WIN
5 VDC 4000 mA
TEN 20-4812WIN
12 VDC
1670 mA
TEN 20-4813WIN
18 – 75 VDC
15 VDC
1330 mA
TEN 20-4821WIN
±5 VDC
±2000 mA
TEN 20-4822WIN
±12 VDC
±835 mA
TEN 20-4823WIN
±15 VDC
±665 mA
Features
•
High Power Density in 51x25x10mm Metal Package
•
Ultrawide 4:1 Input Range
•
High Efficiency up to 86%
•
Operating Temperature Range –40°C to +85°C
•
I/O Isolation 1500 VDC
•
Short Circuit Protection
•
Remote On/Off
•
Adjustable Output Voltage
•
Industry Standard Pinout
Pending
Pin
Single Output
Dual Output
1
+ Vin (Vcc)
+ Vin (Vcc)
2
– Vin (GND)
– Vin (GND)
3
+ Vout
+ Vout
4
Trim
Common
5
– Vout
– Vout
6
Remote On/Off
Remote On/Off
Pin Connection
Pin ø 1.0 mm (0.04)
2
3.
02
10.2
6
25.4
21
54
3
Bottom view
10.16
2.
51
2.5
Insulated
Baseplate
(1.0)
(0.1)
(0.4)
(0.24)
)
8.
0(
(0.4)
7.62
(0.3)
6
7.62
(0.3)
10.16
(0.4)
5.08
(0.2)
5
0
.8
(2
.0
)
(0
.6
)
() = Inches
Line regulation
±0.2% max.
Load regulation
– Single output models ±0.5% max.
– Dual output models ±3.0% max.
Output voltage adjustment
Single output models only: ±10% (by external resistor)
Ripple & Noise
– Single output models: <75 mVpk-pk (20 MHz BW)
– Dual output models: <100 mVpk-pk (20 MHz BW)
Conducted EMI
EN 55022, class A and FCC, level A
(with external capacitor)
Short circuit protection
continuous, automatic recovery
Efficiency
85% typ.
Operating temperature range
–40°C … +85°C above 65°C derating 2.5%/°C
I/O isolation voltage
1500 VDC
Safety standards
cUL/UL 60950-1, IEC/EN 60950-1
Case
metal, with insulated baseplate
Remote On/Off
shutdown input for low input current (2.5 mA) in
standby operation
Electrical Specification
