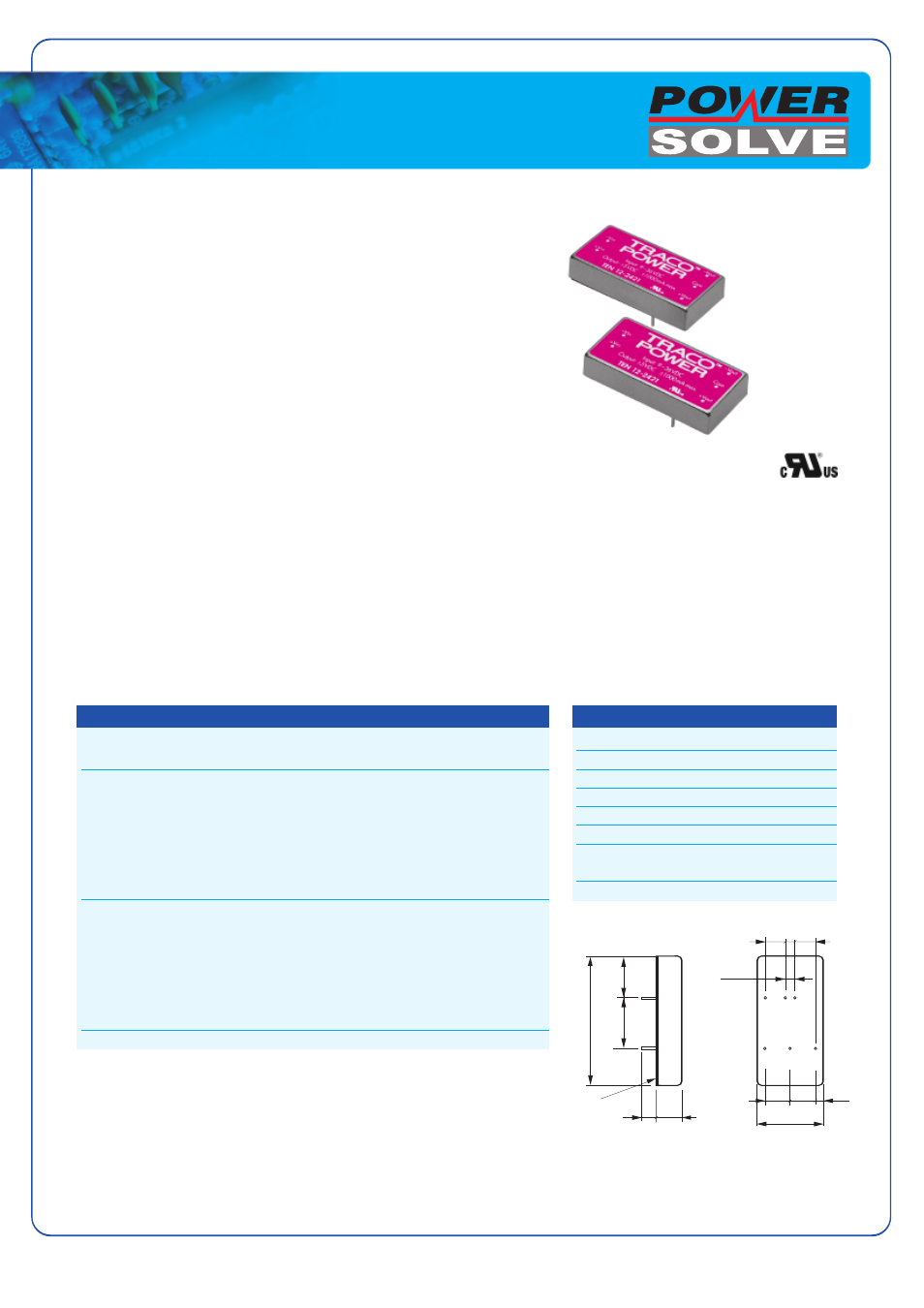

Powersolve TEN12WI Series User Manual
Dc/dc converters, Ten 12wi series, 12 watt, Models
Line regulation
±0.5% max.
Load regulation:
–Single output models: ±0.5% max.
–Dual output models: ±0.5% max.
Ripple & Noise:
<50 mVpk-pk (20 MHz BW)
Conducted EMI:
EN 55022, class A and FCC, level A (internal filter)
Short circuit protection:
continuous, automatic recovery
Efficiency:
83% typ. 3.3 VDC models
Operating temperature range:
–40°C … +85°C above 60°C derating 2%/°C
I/O isolation voltage:
1500 VDC
Safety standards:
cUL/UL 60950, IEC/EN 60950
Case:
metal, 6-side shielded with insulated baseplate
Option:
shutdown input for low input current (10 mA) in standby operation
www.powersolve.co.uk
Powersolve Electronics Ltd. 8A, Arnhem Road, Newbury, RG14 5RU. England
Tel:01635 521858 Fax: 01635 523771 Email: [email protected]
Order Code
Input voltage
Output voltage
Output current
max.
TEN 12-2410
3.3 VDC
2400 mA
TEN 12-2411
5 VDC
2000 mA
TEN 12-2412
12 VDC
1000 mA
TEN 12-2413
9 – 36 VDC
15 VDC
800 mA
TEN 12-2421
±5 VDC
±1000 mA
TEN 12-2422
±12 VDC
±500 mA
TEN 12-2423
±15 VDC
±400 mA
TEN 12-4810
3.3 VDC
2400 mA
TEN 12-4811
5 VDC
2000 mA
TEN 12-4812
12 VDC
1000 mA
TEN 12-4813
18 – 75 VDC
15 VDC
800 mA
TEN 12-4821
±5 VDC
±1000 mA
TEN 12-4822
±12 VDC
±500 mA
TEN 12-4823
±15 VDC
±400 mA
=
51x25x10 mm Metal Package
=
Ultrawide 4:1 Input Range
=
Very high Efficiency up to 84%
=
Operating Temperature Range –40°C to +85°C
=
I/O Isolation 1500 VDC
=
Short Circuit Protection
=
Input Filter to meet EN 55022, Class A
=
Remote On/Off (option)
=
Industry Standard Pinout
DC/DC Converters
TEN 12WI Series, 12 Watt
Models
Pin
Single Output
Dual Output
1
+ Vin (Vcc)
+ Vin (Vcc)
2
– Vin (GND)
– Vin (GND)
3
+ Vout
+ Vout
4
No pin
Common
5
– Vout
– Vout
6
Remote On/Off
Remote On/Off
(option)
(option)
Pin-Out
20.32
10.2
6
50.8
25.4
2 1
54
3
Bottom view
10.16
15.2
2.5
Insulated Baseplate
(1.0)
(0.1)
(0.4)
(0.24)
(2.0)
(0.8)
(0.6)
(0.4)
7.62
(0.3)
6
7.62
(0.3)
10.16
(0.4)
5.08 (0.2)
() = Inches
Pin
Ø
1.0 mm (0.04)
