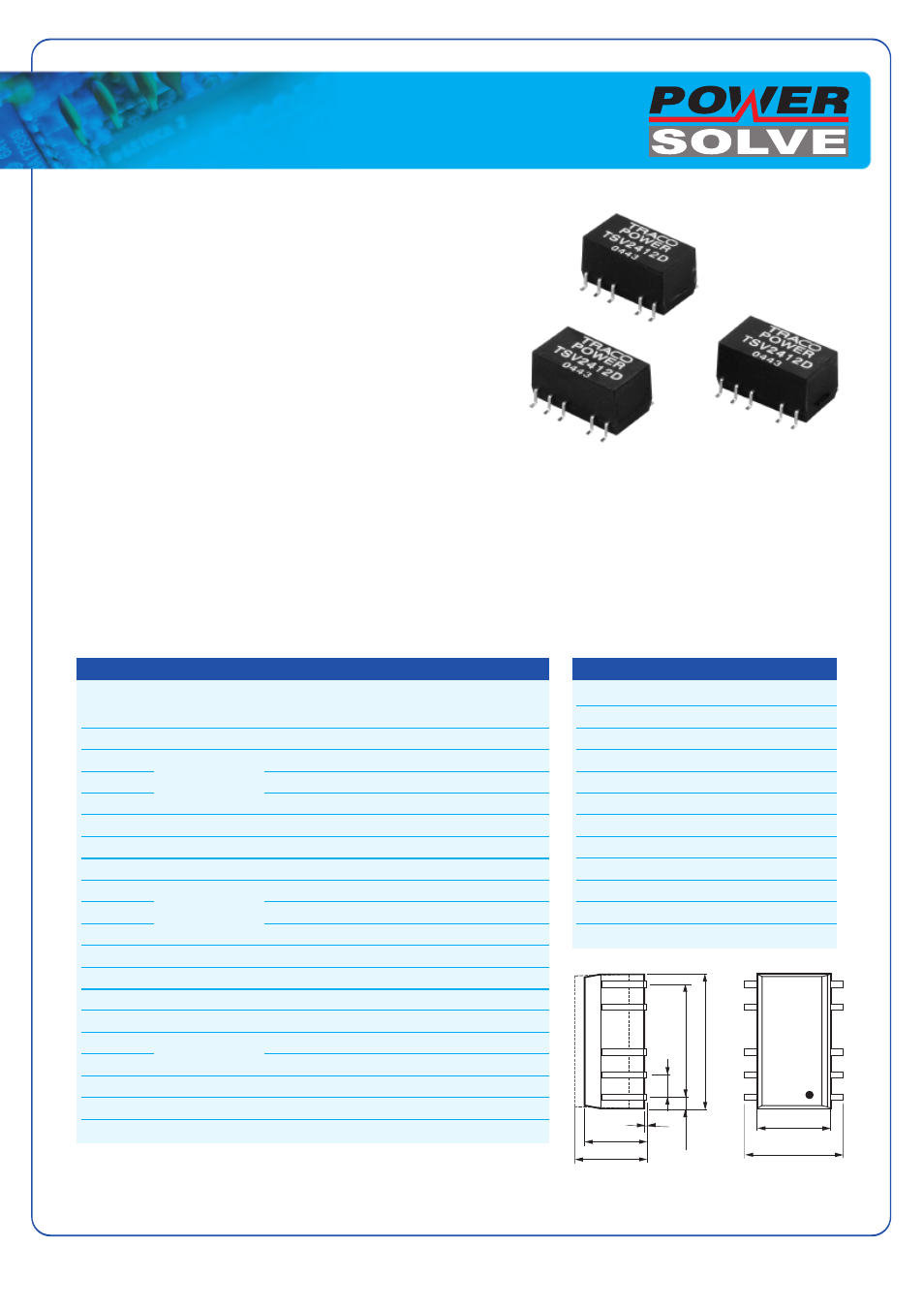

Powersolve TSV Series - Manual

www.powersolve.co.uk
Powersolve Electronics Ltd. 8A, Arnhem Road, Newbury, RG14 5RU. England
Tel:01635 521858 Fax: 01635 523771 Email: [email protected]
Line regulation non regulated
Load regulation: ±10% max.
Ripple & Noise: <100mVpk-pk (20 MHz BW)
Short circuit protection: limited 0.5 sec.
Efficiency: 80% typ.
Operating temperature range: –40°C … +85°C (no derating)
I/O isolation voltage: 3000 VDC
I/O isolation capacitance: 60 pF typ.
I/O isolation resistance: >10 Gohm
Case: plastic (UL 94V-0 rating)
Order Code Input voltage Output voltage Output current
max.
TSV 0505S 5 VDC 200 mA
TSV 0512S 12 VDC 80 mA
TSV 0515S 15 VDC 65 mA
TSV 0505D ±5 VDC ±100 mA
TSV 0512D ±12 VDC ±40 mA
TSV 0515D ±15 VDC ±30 mA
TSV 1205S 5 VDC 200 mA
TSV 1212S 12 VDC 80 mA
TSV 1215S 15 VDC 65 mA
TSV 1205D ±5 VDC ±100 mA
TSV 1212D ±12 VDC ±40 mA
TSV 1215D ±15 VDC ±30 mA
TSV 2405S 5 VDC 200 mA
TSV 2412S 12 VDC 80 mA
TSV 2415S 15 VDC 65 mA
TSV 2405D ±5 VDC ±100 mA
TSV 2412D ±12 VDC ±40 mA
TSV 2415D ±15 VDC ±30 mA
• SMD Package (SOIC-22)
• I/O Isolation 3000 VDC
• Single and Dual Output Models
• High Efficiency
• Operating Temperature Range –40°C to +85°C
• Lead Frame Construction
• High Accuracy of Pin Co-Planarity
• Available in Tape and Reel Package
• Reflow solder temperature up to 250°C allowed
DC-DC Converters
TSV Series, 1 Watt
Models
Pin Single Output Dual Output
1 –Vin (GND) –Vin (GND)
3 +Vin +Vin
5 No con. No con.
9 –Vout Common
11 No con. –Vout
12 No con. No con.
14 +Vout +Vout
18 No con. No con.
20 No con. No con.
22 No con. No con.
Pin-Out
To
p view
for 24Vin mod.
8.15 (0.32)
(0.01)
(0.25)
2.54 (0.1) 22
20
18
14
12
1
3
5
9
11
12.7 (0.5) 15.24 (0.6)
1.27 (0.05)
6.95 (0.26)
8.0 (0.32)
(8.3 for 24V in mod.)
11.2 (0.44)
() = Inches
24 VDC ± 10%
12 VDC ± 10%
5 VDC ± 10%
