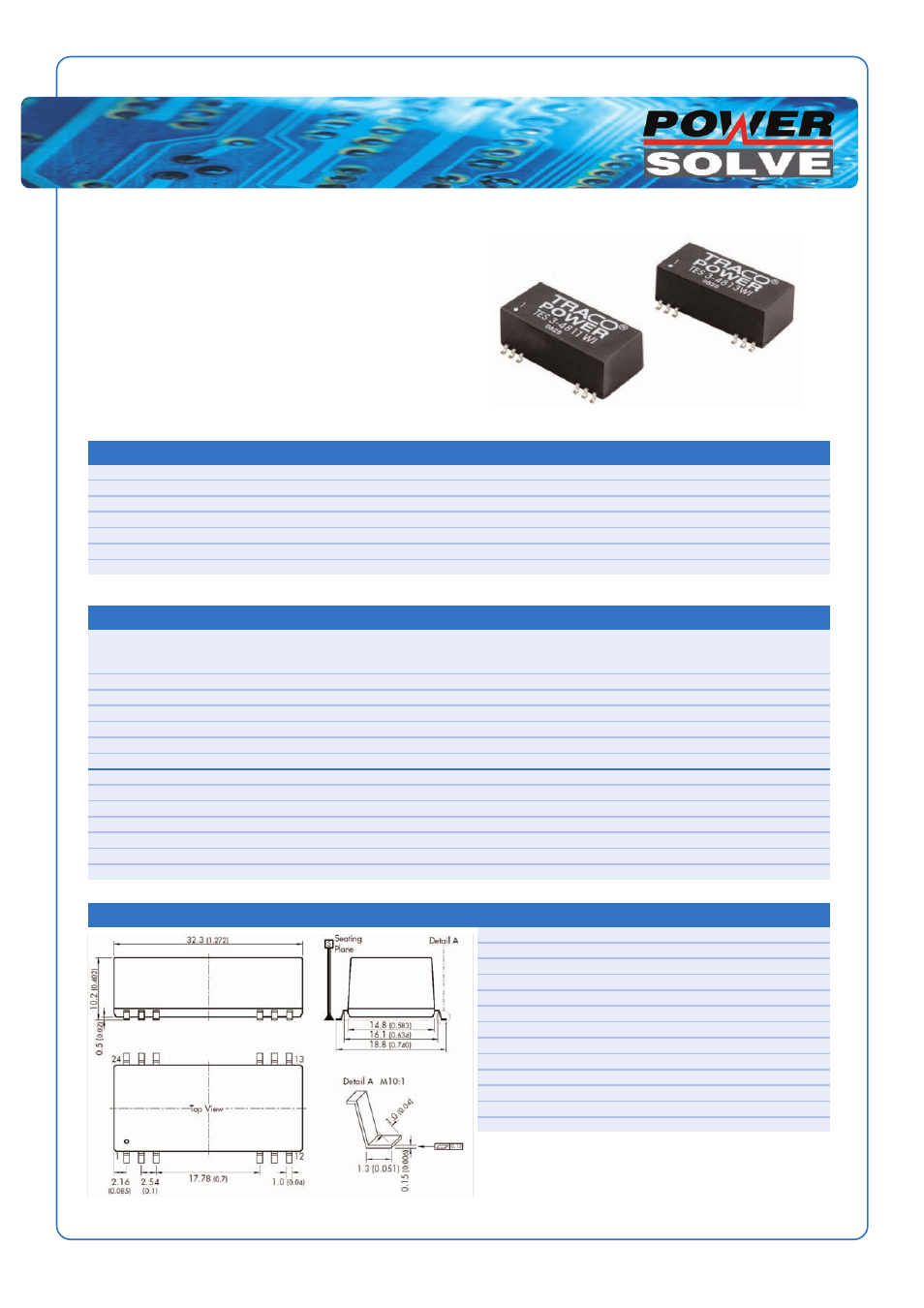

Powersolve TES3WI Series User Manual

Dc-dc converters, Tes 3wi series, 3 watt, Features

background image

Powersolve Electronics Ltd. 8A Arnhem Road, Newbury, RG14 5RU. England

Tel: 01635 521858 Fax: 01635 523771 Email: [email protected]

www.powersolve.co.uk

DC-DC Converters

TES 3WI Series, 3 Watt

Features

Compact SMD package

Ultra wide 4 : 1 input voltage range

Fully regulated output

Short circuit protection

Input filter to meet EN 55022 class A

Remote On/Off

Electrical Specification

Input filter

EN 55022 class A & FCC level A (internal filter)

Short Circuit Protection

continuous, automatic recovery

Operating Temperature Range

-40°C to +71°C (no derating)

I/O Isolation test voltage

1500VDC

Safety Approvals

cUL/UL 60950-1, IEC/EN 60950-1

Remote On/Off

shutdown input for low input current (10mA) in standby operation

Casing

plastic (UL94V-0 rated)

Output Voltage and Current Ratings

MODEL

INPUT

OUTPUT

OUTPUT 

RIPPLE &

LINE

LOAD

EFFICIENCY

VOLTAGE

VOLTAGE

CURRENT

NOISE

REG.

REG.

TES3-2410WI

3.3VDC

750mA

75mV pk-pk max.

0.3%

1.0%

75%

TES3-2411WI

5VDC

600mA

75mV pk-pk max.

0.3%

1.0%

79%

TES3-2412WI

12VDC

250mA

75mV pk-pk max.

0.3%

1.0%

81%

TES3-2413WI

9 - 36VDC

15VDC

200mA

75mV pk-pk max.

0.3%

1.0%

81%

TES3-2421WI

±5VDC

±300mA

75mV pk-pk max.

0.3%

2.0%

78%

TES3-2422WI

±12VDC

±125mA

75mV pk-pk max.

0.3%

2.0%

81%

TES3-2423WI

±15VDC

±100mA

75mV pk-pk max.

0.3%

2.0%

81%

TES3-4810WI

3.3VDC

750mA

75mV pk-pk max.

0.3%

1.0%

76%

TES3-4811WI

5VDC

600mA

75mV pk-pk max.

0.3%

1.0%

80%

TES3-4812WI

12VDC

250mA

75mV pk-pk max.

0.3%

1.0%

83%

TES3-4813WI

18 - 75VDC

15VDC

200mA

75mV pk-pk max.

0.3%

1.0%

83%

TES3-4821WI

±5VDC

±300mA

75mV pk-pk max.

0.3%

2.0%

80%

TES3-4822WI

±12VDC

±125mA

75mV pk-pk max.

0.3%

2.0%

83%

TES3-4823WI

±15VDC

±100mA

75mV pk-pk max.

0.3%

2.0%

83%

Mechanical and Connection Details

Pin

Single Output

Dual Output

1

-Vin (GND)

-Vin (GND)

2

-Vin (GND)

-Vin (GND)

3

Remote On/Off

Remote On/Off

10

No conn.

Common

11

No conn.

No conn.

12

No conn.

-Vout

13

+Vout

+Vout

14

No conn.

No conn.

15

-Vout

Common

22

No conn.

No conn.

23

+Vin (Vcc)

+Vin (Vcc)

24

+Vin (Vcc)

+Vin (Vcc)
