Powersolve THL6WI Series - Manual

Powersolve Electronics Ltd. 8A Arnhem Road, Newbury, RG14 5RU. England
Tel: 01635 521858 Fax: 01635 523771 Email: [email protected]
DC-DC Converters
THL6WI Series, 6 Watt
Electrical Specification
Conducted EMI EN55022 class A & FCC level A (with external capacitor)
Short Circuit Protection continuous, automatic recovery
Operating Temperature Range -40°C to +70°C (derate at 2.5%/°C above 60°C)
I/O Isolation test voltage 1500VDC
Safety Approvals cUL/UL 60950-1, IEC/EN 60950-1, CB report
Casing plastic (UL94V-0 rated)
Remote ON/OFF Shutdown input for low current (10mA) in standby operation
Output Voltage and Current Ratings
MODEL INPUT OUTPUT OUTPUT RIPPLE & LINE LOAD EFF.
VOLTAGE VOLTAGE CURRENT NOISE REG. REG. (typ.)
THL6-2410WI 3.3VDC 1450mA 60mV pk-pk max. 0.5% 1.0% 83%
THL6-2411WI 5VDC 1200mA 60mV pk-pk max. 0.5% 1.0% 83%
THL6-2412WI 12VDC 500mA 60mV pk-pk max. 0.5% 1.0% 83%
THL6-2413WI 9 - 36VDC 15VDC 400mA 60mV pk-pk max. 0.5% 1.0% 83%
THL6-2421WI ±5VDC ±600mA 60mV pk-pk max. 0.5% 2.0% 83%
THL6-2422WI ±12VDC ±250mA 60mV pk-pk max. 0.5% 2.0% 83%
THL6-2423WI ±15VDC ±200mA 60mV pk-pk max. 0.5% 2.0% 83%
THL6-4810WI 3.3VDC 1450mA 60mV pk-pk max. 0.5% 1.0% 83%
THL6-4811WI 5VDC 1200mA 60mV pk-pk max. 0.5% 1.0% 83%
THL6-4812WI 12VDC 500mA 60mV pk-pk max. 0.5% 1.0% 83%
THL6-4813WI 18 - 75VDC 15VDC 400mA 60mV pk-pk max. 0.5% 1.0% 83%
THL6-4821WI ±5VDC ±600mA 60mV pk-pk max. 0.5% 2.0% 83%
THL6-4822WI ±12VDC ±250mA 60mV pk-pk max. 0.5% 2.0% 83%
THL6-4823WI ±15VDC ±200mA 60mV pk-pk max. 0.5% 2.0% 83%

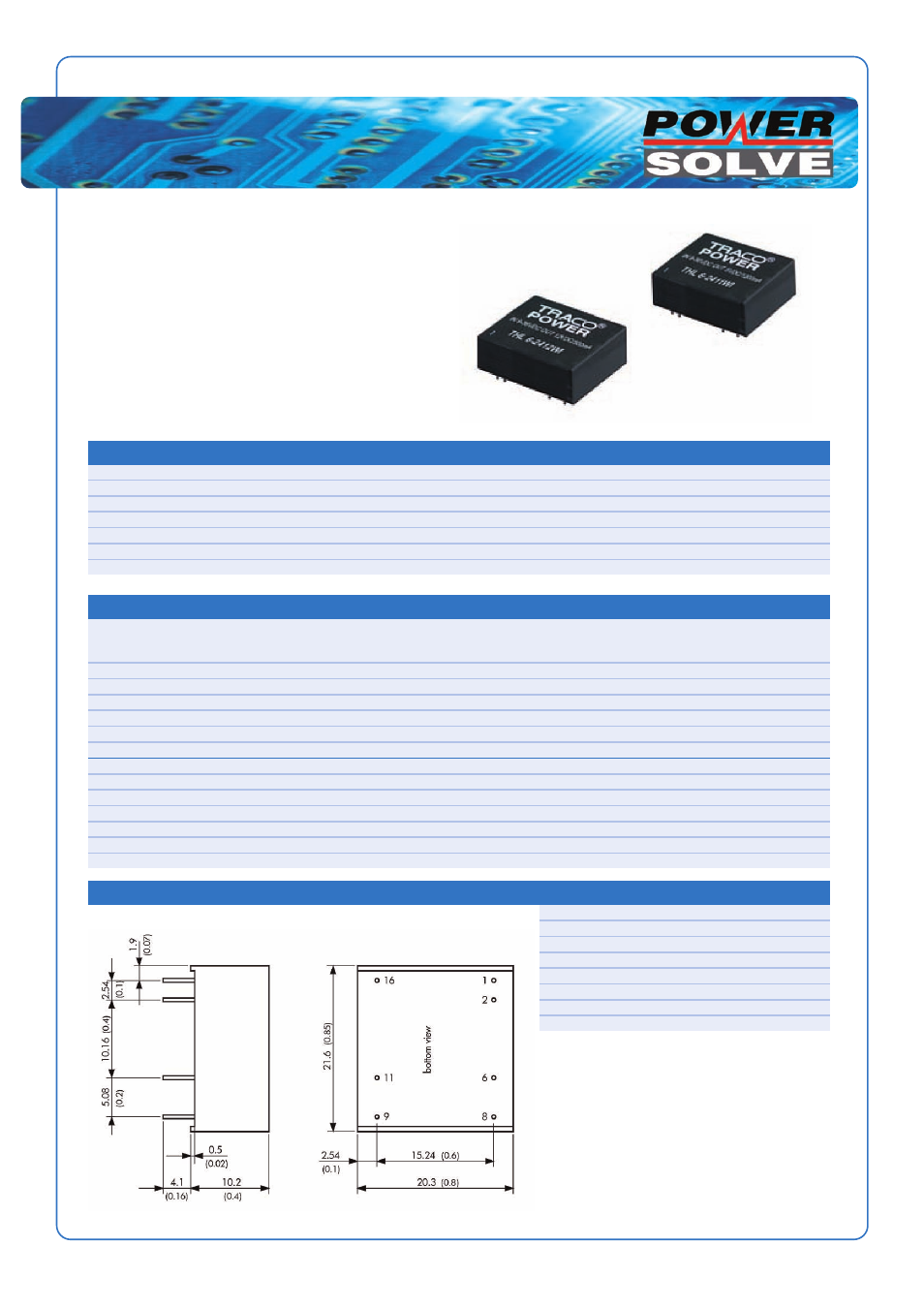

Mechanical and Connection Details
www.powersolve.co.uk
Pin Single Output Dual Output
1 Remote ON/OFF Remote ON/OFF
2 -Vin (GND) -Vin (GND)
6 No conn. Common
8 No conn. -Vout
9 +Vout +Vout
11 -Vout Common
16 +Vin (Vcc) +Vin (Vcc)
Features
• Compact 1” x 0.8” plastic package
• Ultra wide 4:1 input range
• Fully regulated outputs
• I/O isolation 1500VDC
• Operating temperature range -40°C to +70°C
• Input filter to meet EN55022 class A
• Short circuit protection
Dimensions in mm (inches)
