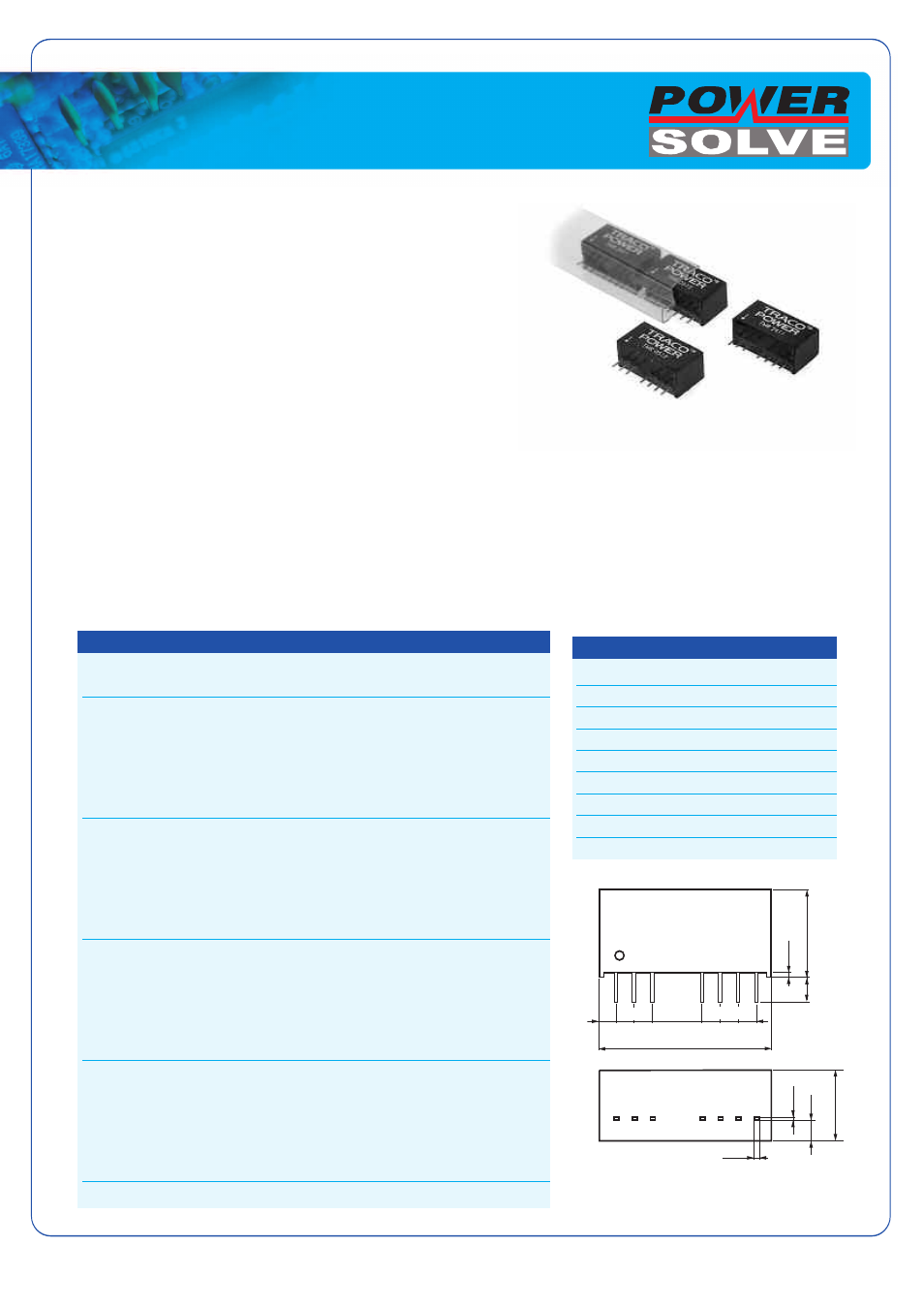

Powersolve TMR Series User Manual
Dc/dc converters, Tmr series, 2 watt, Models

www.powersolve.co.uk
Powe rsolve Electronics Ltd. 8A, Arnhem Road, Newbury, RG14 5RU. England
Tel:01635 521858 Fax: 01635 523771 Email: [email protected]
Order Code
Input voltage
Output voltage
Output current
max.
TMR 0510
3.3 VDC
500 mA
TMR 0511
5 VDC
400 mA
TMR 0512
4.5 – 9.0 VDC
12 VDC
165 mA
TMR 0521
±5 VDC
±200 mA
TMR 0522
±12 VDC
±85 mA
TMR 0523
±15 VDC
±65 mA
TMR 1210
3.3 VDC
500 mA
TMR 1211
5 VDC
400 mA
TMR 1212
9 – 18 VDC
12 VDC
165 mA
TMR 1221
±5 VDC
±200 mA
TMR 1222
±12 VDC
±85 mA
TMR 1223
±15 VDC
±65 mA
TMR 2410
3.3 VDC
500 mA
TMR 2411
5 VDC 400
mA
TMR 2412
18 – 36 VDC
12 VDC
165 mA
TMR 2421
±5 VDC
±200 mA
TMR 2422
±12 VDC
±85 mA
TMR 2423
±15 VDC
±65 mA
TMR 4810
3.3 VDC
500 mA
TMR 4811
5 VDC 400
mA
TMR 4812
36 – 75 VDC
12 VDC
165 mA
TMR 4821
±5 VDC
±200 mA
TMR 4822
±12 VDC
±85 mA
TMR 4823
±15 VDC
±65 mA
=
Miniature SIL-Package
=
Wide 2:1 Input Range
=
Regulated Outputs
=
I/O Isolation 1000 VDC
=
Operating Temperature Range –40°C to +75°C
=
Low Ripple and Noise
=
Short Circuit Protection
=
Remote On/Off
DC/DC Converters
TMR Series, 2 Watt
Models
Pin
Single Output
Dual Output
1
– Vin (GND)
– Vin (GND)
2
+ Vin (Vcc)
+ Vin (Vcc)
3
Remote On/Off
Remote On/Off
5
No con.
No con.
6
+ Vout
+ Vout
7
– Vout
Common
8
No con.
– Vout
Pin-Out
Bottom view
3.2 (0.1
3)
0.5 (0.02)
0.2
5(
0.0
1)
2.0
21.8
5.08
3 x 2.54
0.5
(0.
02
)
11
.1(
0.4
4)
(3 x 0.1)
(0.08)
(0.2)
4.0
2 x 2.54
(2 x 0.1)
(0.86)
(0.
16
)
9.2
(0.
36
)
12 3
5 6 7 8
() = Inches
Line regulation:
±0.5% max.
Load regulation:
– Single output models: ±0.75% max.
– Dual output models: ±1.0% max.
Ripple & Noise:
<50 mVpk-pk (20 MHz BW)
(no external output capacitor required)
Short circuit protection:
continuous, automatic recovery
Efficiency:
78% typ. 5 VDC input models: 70% typ.
Operating temperature range:
–40°C … +75°C (no derating)
I/O isolation voltage:
1000 VDC
Case:
plastic (UL94V-0 rating)
Remote On/Off:
shutdown input for low input current (1 mA) in standby operation
