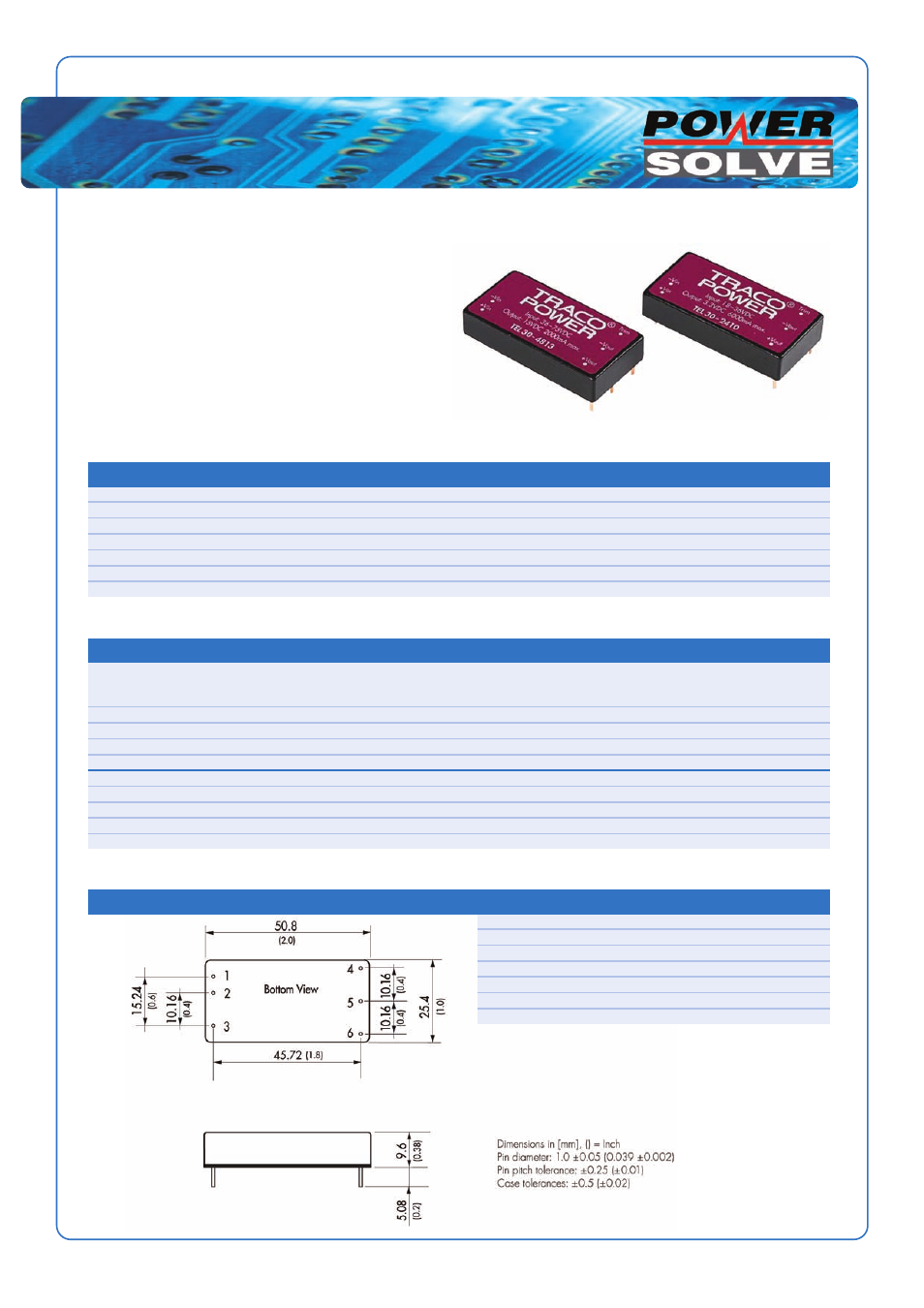

Dc-dc converters, Tel 30 series, 30 watt, Features

background image

Powersolve Electronics Ltd. 8A Arnhem Road, Newbury, RG14 5RU. England

Tel: 01635 521858 Fax: 01635 523771 Email: [email protected]

www.powersolve.co.uk

DC-DC Converters

TEL 30 Series, 30 Watt

Features

50.8 x 25.4 x 10.2 mm Metal package

Wide 2 : 1 input range

High efficiency up to 88%

Operating temperature range -40°C to +70°C

Short circuit protection

Adjustable output voltage

Industry standard pin outs

Electrical Specification

Output Voltage Adjustment

±10% by external resistor

Input filter

Pi-filter

Short Circuit Protection

continuous, automatic recovery

Operating Temperature Range

-40°C to +70°C (derate at 2%/°C above 50°C)

I/O Isolation test voltage

1500VDC

Safety Approvals

cUL/UL 60950-1, IEC/EN 60950-1, CB

Casing

metal, 6-side shielded with insulated baseplate

Output Voltage and Current Ratings

MODEL

INPUT

OUTPUT

OUTPUT 

RIPPLE &

LINE

LOAD

EFF.

VOLTAGE

VOLTAGE

CURRENT

NOISE

REG.

REG.

TEL 30-2409

2.5VDC

6000mA

100mV pk-pk max.

0.3%

1.0%

84%

TEL 30-2410

3.3VDC

6000mA

100mV pk-pk max.

0.3%

1.0%

86%

TEL 30-2411

18 - 36V

5.1VDC

5000mA

100mV pk-pk max.

0.3%

1.0%

84%

TEL 30-2412

12VDC

2500mA

100mV pk-pk max.

0.3%

1.0%

88%

TEL 30-2413

15VDC

2000mA

100mV pk-pk max.

0.3%

1.0%

88%

TEL 30-4809

2.5VDC

6000mA

100mV pk-pk max.

0.3%

1.0%

84%

TEL 30-4810

3.3VDC

6000mA

100mV pk-pk max.

0.3%

1.0%

86%

TEL 30-4811

36 - 75V

5.1VDC

5000mA

100mV pk-pk max.

0.3%

1.0%

84%

TEL 30-4812

12VDC

2500mA

100mV pk-pk max.

0.3%

1.0%

88%

TEL 30-4813

15VDC

2000mA

100mV pk-pk max.

0.3%

1.0%

88%

Mechanical and Connection Details

Pin

Single Output

1

+Vin (Vcc)

2

-Vin (GND)

3

No Pin (or optional Remote On/Off)

4

+Vout

5

-Vout

6

Trim
