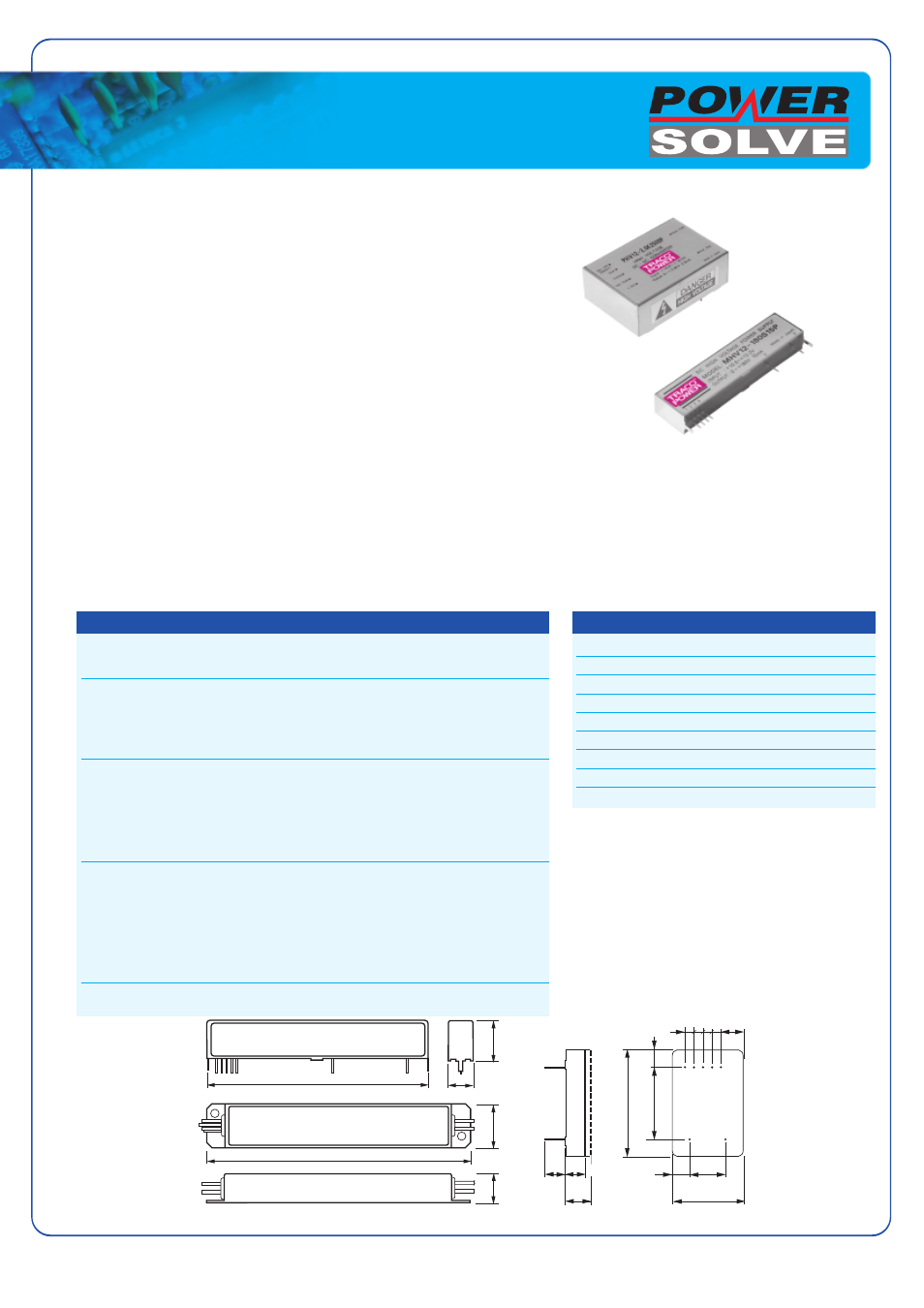

Ultracompact High Voltage Power Supplies

=

Full SMD-Design with Ceramic Capacitors for high Reliability

=

Excellent Output Stability

=

Low Temperature Drift

=

Remote Voltage Programming

=

Short Circuit Protection

=

PCB-Mount or Flying Lead Version

=

Shielded Metal Case

DC/DC Converters,

MHV/PHV Series, 2/5 Watt

Pin Case A

Case B/C

Case D

1

+ Vin

+ Vin

+ Vin

2

– Vin

– Vin

– Vin

3

Vadj.

Vadj.

Vadj.

4

Vref. Vref.

Vref.

5

Common

Remote On/Off

Remote On/Off

6

Vout

Common

Common

7

No pin

Vout

Vout

Pin-Out

Line regulation:

±0.03% for MHV, ±0.01% for PHV

Load regulation:

– MHV models: ±0.08%, – PHV models: ±0.1%

Output voltage adjustment:

0…100% (by external resistor or reference voltage)

Ripple & Noise:

MHV: < 30 mVpk-pk (20 MHz BW), PHV: <100 mVpk-pk (20 MHz BW)

Short circuit protection:

continuous

Efficiency:

65% typ.

Operating temperature range:

–10°C … +75°C above 50°C derating 4%/°C

Temperature coefficient:

±0.01%/°C

Stability:

0.05%/8 h drift

Case:

metal

Remote On/Off:

Input for MHV 500–2,000 VDC models, optional for PHV models

High Voltage Output

Order code

Input voltage

Output voltage

Output current

max.

Case

MHV Models 2 Watt

MHV 12-180 S 15 P (N)

12 VDC

0-180 VDC

15 mA

A

MHV 12-300 S 10 P (N)

10.8-13.2 VDC

0-300 VDC

10 mA

A

MHV 12-350 S 07 P (N)

0-350 VDC

7 mA

A

*MHV 12-0.5 K 6000 P (N)

0-500 VDC

6 mA

B

*MHV 12-1.0 K 2000 P (N)

12 VDC

0-1000 VDC

2 mA

B

*MHV 12-1.5 K 1300 P (N)

10.8-16.5 VDC

0-1500 VDC

1.3 mA

B

*MHV 12-2.0 K 1000 P (N)

0-2000 VDC

1 mA

B

* Models with flying leads available, Case C

PHV Models 5 Watt

PHV 12-350 S 10 P (N)

0-350 VDC

10 mA

D

PHV 12-0.5 K 1000 P (N)

12 VDC

0-500 VDC

10 mA

D

PHV 12-1.0 K 5000 P (N)

10.8-16.5 VDC

0-1000 VDC

5 mA

D

PHV 12-2.0 K 2500 P (N)

0-2000 VDC

2.5 mA

D

Order code P for positive output polarity

Order code N for negative polarity

Models

Case A: 80 / Case B: 110

21

12

131

14

19.

8

Case A / B

Case C

Case C

60

40

1

2

3

4

5

7

6

Bottom view

40.64

5.08

9.68

11 typ

20.32

9.84

5.08 5.08 5.08 12.38

15

20

3.5 W Models

5.0 W Models

1 – 5

6

7

6
7

1–
5

Case D

(0.78)

(0.83)

(0.55)

(1.57)

(0.8)

(0.49 typ)

(0.8)

(0.39)

(0.6)

(2.36)

(1.6)

(0.38)

(0.47)

(0.2) (0.2) (0.2) (0.2) (0.49)

(3.15)

(4.33)

(5.16)

(Flying Lead Version)

() = Inches
