Powersolve TEL15 Series User Manual

Dc-dc converters, Tel15 series, 15 watt, Features

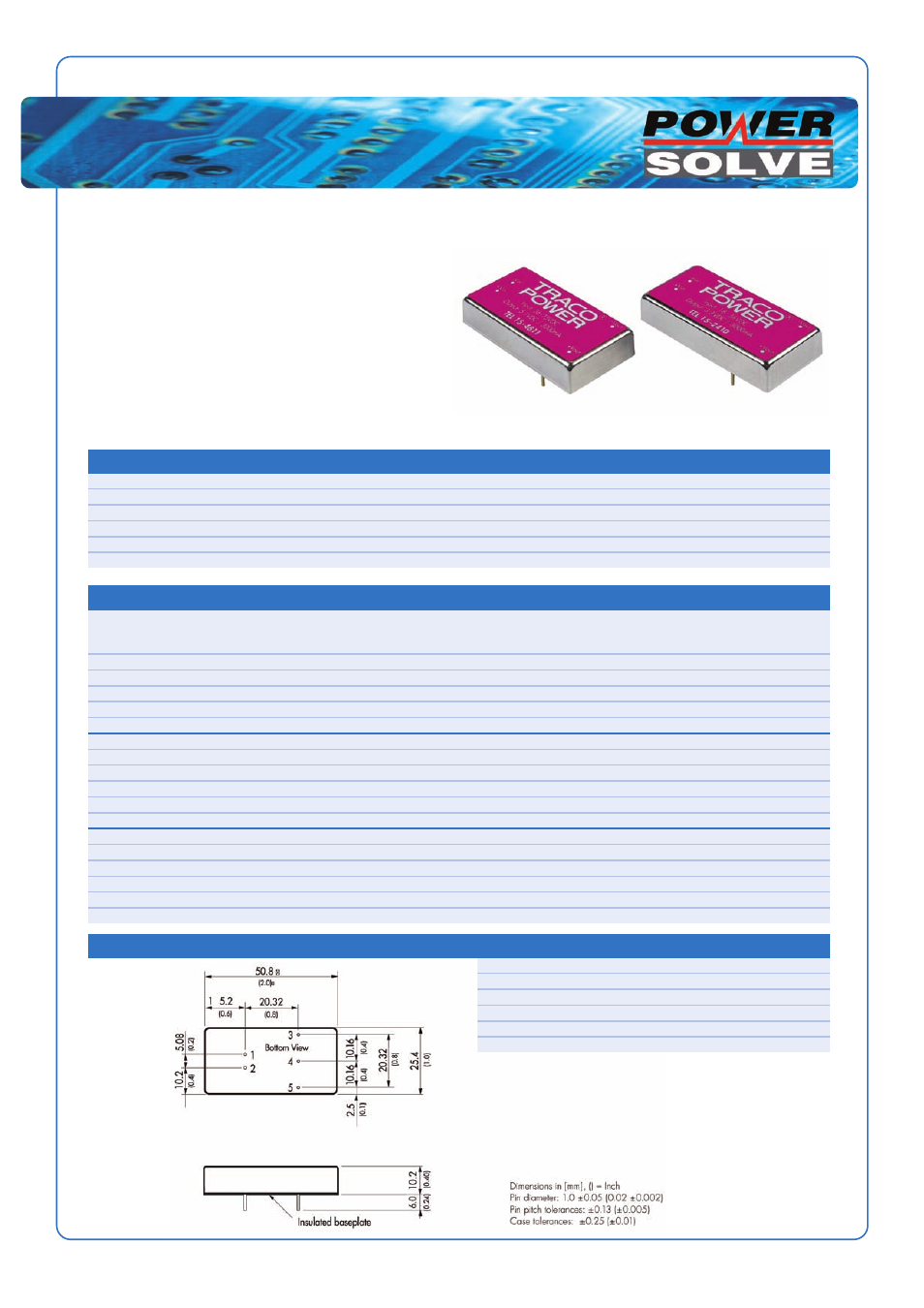

background image

Powersolve Electronics Ltd. 8A Arnhem Road, Newbury, RG14 5RU. England

Tel: 01635 521858 Fax: 01635 523771 Email: [email protected]

www.powersolve.co.uk

DC-DC Converters

TEL15 Series, 15 Watt

Features

50.8 x 25.4 x 10.2 mm Metal package

Wide 2 : 1 input range

High efficiency up to 86%

Operating temperature range -40°C to +75°C

Short circuit protection

Industry standard pin outs

Cost optimized design

Electrical Specification

Input filter

Pi filter

Short Circuit Protection

continuous, automatic recovery

Operating Temperature Range

-40°C to +75°C (derate at 2.5%/°C above 60°C)

I/O Isolation test voltage

1500VDC

Safety Approvals

cUL/UL 60950-1, IEC/EN 60950-1, CB

Casing

metal, 6-side shielded with insulated baseplate

Output Voltage and Current Ratings

MODEL

INPUT

OUTPUT

OUTPUT 

RIPPLE &

LINE

LOAD

EFF.

VOLTAGE

VOLTAGE

CURRENT

NOISE

REG.

REG.

TEL 15-1210

3.3VDC

3000mA

50mV pk-pk max.

1.0%

0.5%

78%

TEL 15-1211

5.1VDC

3000mA

50mV pk-pk max.

1.0%

0.5%

81%

TEL 15-1212

9 - 18V

12VDC

1250mA

50mV pk-pk max.

1.0%

0.5%

86%

TEL 15-1213

15VDC

1000mA

50mV pk-pk max.

1.0%

0.5%

86%

TEL 15-1222

±12VDC

±625mA

75mV pk-pk max.

1.0%

1.0%

86%

TEL 15-1223

±15VDC

±500mA

75mV pk-pk max.

1.0%

1.0%

86%

TEL 15-2410

3.3VDC

3000mA

50mV pk-pk max.

1.0%

0.5%

78%

TEL 15-2411

5.1VDC

3000mA

50mV pk-pk max.

1.0%

0.5%

81%

TEL 15-2412

18 - 36V

12VDC

1250mA

50mV pk-pk max.

1.0%

0.5%

86%

TEL 15-2413

15VDC

1000mA

50mV pk-pk max.

1.0%

0.5%

86%

TEL 15-2422

±12VDC

±625mA

75mV pk-pk max.

1.0%

1.0%

86%

TEL 15-2423

±15VDC

±500mA

75mV pk-pk max.

1.0%

1.0%

86%

TEL 15-4810

3.3VDC

3000mA

50mV pk-pk max.

1.0%

0.5%

78%

TEL 15-4811

5.1VDC

3000mA

50mV pk-pk max.

1.0%

0.5%

81%

TEL 15-4812

36 - 75V

12VDC

1250mA

50mV pk-pk max.

1.0%

0.5%

86%

TEL 15-4813

15VDC

1000mA

50mV pk-pk max.

1.0%

0.5%

86%

TEL 15-4822

±12VDC

±625mA

75mV pk-pk max.

1.0%

1.0%

86%

TEL 15-4823

±15VDC

±500mA

75mV pk-pk max.

1.0%

1.0%

86%

Mechanical and Connection Details

Pin

Single Output

Dual Output

1

+Vin (Vcc)

+Vin (Vcc)

2

-Vin (GND)

-Vin (GND)

3

+Vout

+Vout

4

No Pin

Common

5

-Vout

-Vout
