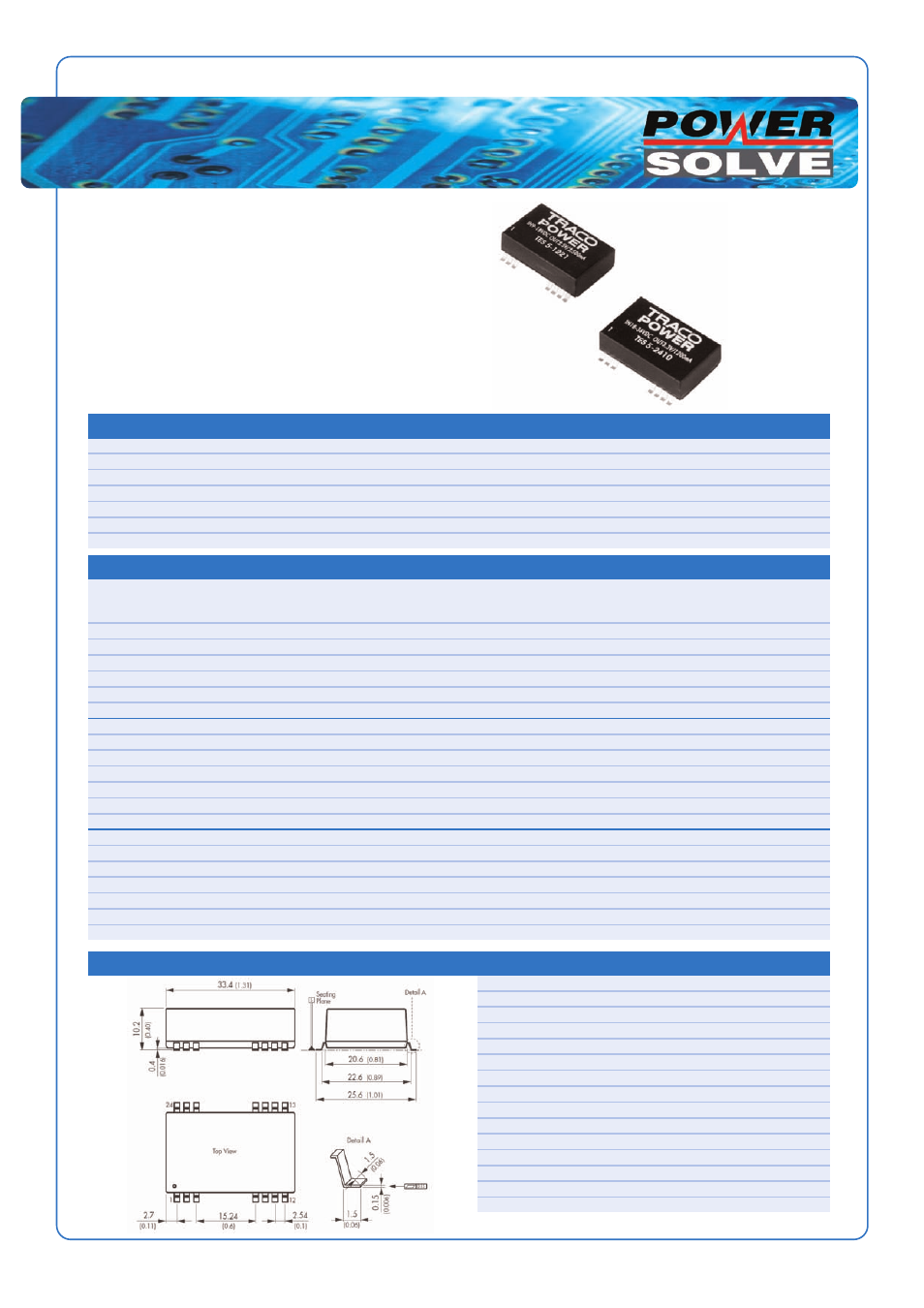

Powersolve TES5 Series User Manual
Dc-dc converters, Tes5 series, 5 watt, Features
Powersolve Electronics Ltd. 8A Arnhem Road, Newbury, RG14 5RU. England
Tel: 01635 521858 Fax: 01635 523771 Email: [email protected]
DC-DC Converters
TES5 Series, 5 Watt
Features
•
Compact SMD package
•
Wide 2:1 input voltage range
•
Fully regulated output
•
Short circuit protection
•
Input filter to meet EN 55022 class A
•
Qualified for leadfree reflow solder process
Electrical Specification
Input filter
EN 55022 class A & FCC level A (internal filter)
Short Circuit Protection
Continuous, automatic recovery
Operating Temperature Range
-40°C to +85°C (derate at 3.5%/°C above 70°C)
I/O Isolation test voltage
1500VDC
Safety Approvals
cUL/UL 60950-1, IEC/EN 60950-1, CB report
Remote On/Off
Shutdown input for low input current (10mA) in standby operation
Casing
Plastic (UL94V-0 rated)
Output Voltage and Current Ratings
Mechanical and Connection Details
Pin
Single Output
Dual Output
1
Remote On/Off
Remote On/Off
2
-Vin (GND)
-Vin (GND)
3
-Vin (GND)
-Vin (GND)
9
No conn.
Common
10
No conn.
No conn.
11
No conn.
-Vout
12
No conn.
No conn.
13
No conn.
No conn.
14
+Vout
+Vout
15
No conn.
No conn.
16
-Vout
Common
22
+Vin (Vcc)
+Vin (Vcc)
23
+Vin (Vcc)
+Vin (Vcc)
24
No conn.
No conn.
www.powersolve.co.uk
MODEL
INPUT
OUTPUT
OUTPUT
RIPPLE &
LINE
LOAD
EFFICIENCY
VOLTAGE
VOLTAGE
CURRENT
NOISE
REG.
REG.
TES 5-1210
3.3VDC
1200mA
85mV pk-pk max.
0.3%
1.0%
76%
TES 5-1211
5VDC
1000mA
85mV pk-pk max.
0.3%
1.0%
80%
TES 5-1212
12VDC
420mA
85mV pk-pk max.
0.3%
1.0%
83%
TES 5-1213
9 - 18VDC
15VDC
335mA
85mV pk-pk max.
0.3%
1.0%
83%
TES 5-1221
±5VDC
±500mA
85mV pk-pk max.
0.3%
2.0%
80%
TES 5-1222
±12VDC
±210mA
85mV pk-pk max.
0.3%
2.0%
83%
TES 5-1223
±15VDC
±165mA
85mV pk-pk max.
0.3%
2.0%
83%
TES 5-2410
3.3VDC
1200mA
85mV pk-pk max.
0.3%
1.0%
78%
TES 5-2411
5VDC
1000mA
85mV pk-pk max.
0.3%
1.0%
82%
TES 5-2412
12VDC
420mA
85mV pk-pk max.
0.3%
1.0%
85%
TES 5-2413
18 - 36VDC
15VDC
335mA
85mV pk-pk max.
0.3%
1.0%
85%
TES 5-2421
±5VDC
±500mA
85mV pk-pk max.
0.3%
2.0%
82%
TES 5-2422
±12VDC
±210mA
85mV pk-pk max.
0.3%
2.0%
85%
TES 5-2423
±15VDC
±165mA
85mV pk-pk max.
0.3%
2.0%
85%
TES 5-4810
3.3VDC
1200mA
85mV pk-pk max.
0.3%
1.0%
78%
TES 5-4811
5VDC
1000mA
85mV pk-pk max.
0.3%
1.0%
82%
TES 5-4812
12VDC
420mA
85mV pk-pk max.
0.3%
1.0%
85%
TES 5-4813
36 - 75VDC
15VDC
335mA
85mV pk-pk max.
0.3%
1.0%
85%
TES 5-4821
±5VDC
±500mA
85mV pk-pk max.
0.3%
2.0%
82%
TES 5-4822
±12VDC
±210mA
85mV pk-pk max.
0.3%
2.0%
85%
TES 5-4823
±15VDC
±165mA
85mV pk-pk max.
0.3%
2.0%
85%
