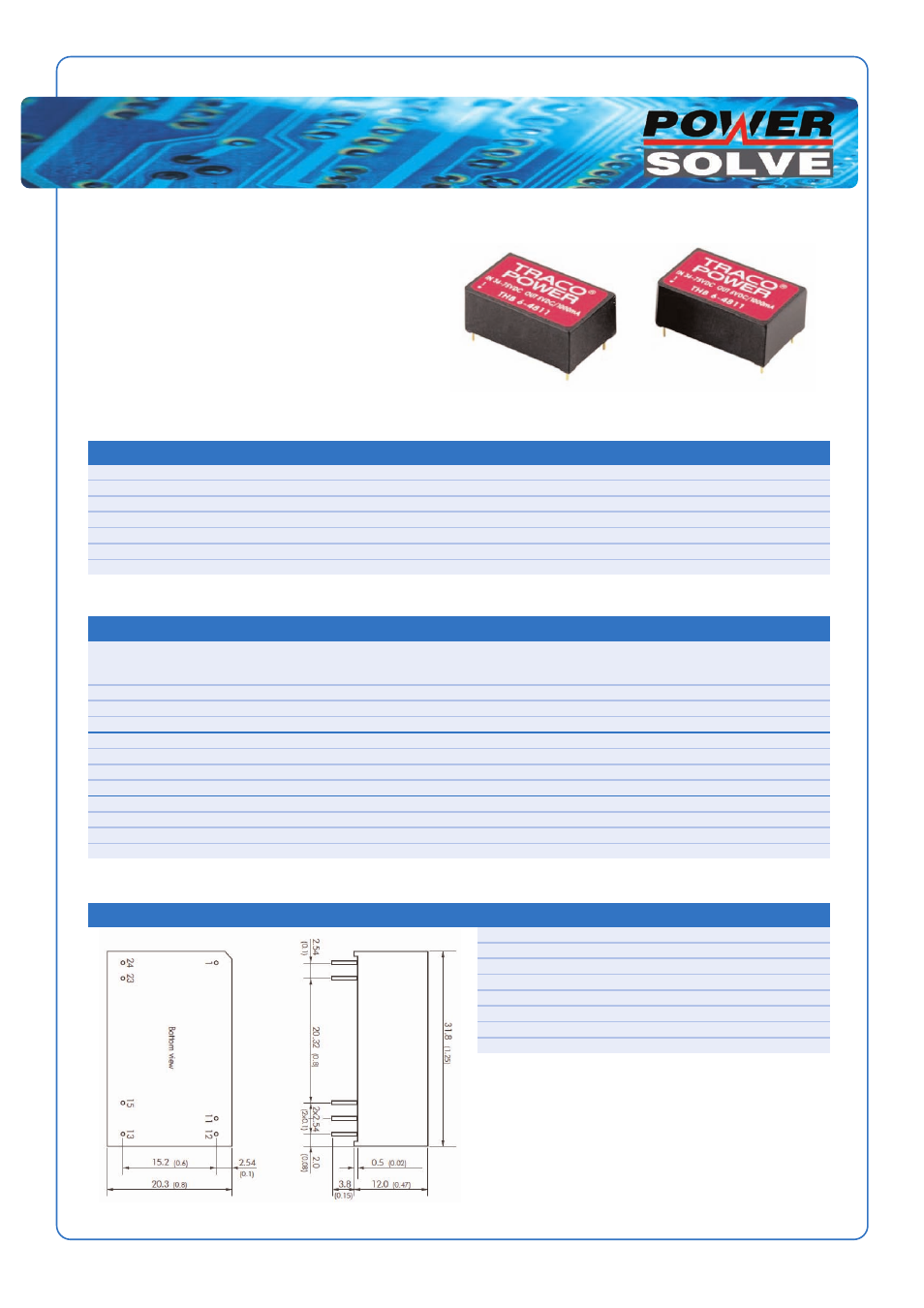

Powersolve THB6 Series User Manual
Dc-dc converters, Thb6 series, 6 watt, Features
Powersolve Electronics Ltd. 8A Arnhem Road, Newbury, RG14 5RU. England
Tel: 01635 521858 Fax: 01635 523771 Email: [email protected]
DC-DC Converters
THB6 Series, 6 Watt
Electrical Specification
Conducted EMI
EN 55022 class A (internal filter)
Short Circuit Protection
continuous, automatic recovery
Operating Temperature Range
-40°C to +71°C (derate at 3%/°C above 60°C)
I/O isolation voltage
4000Vac rms, rated for 300Vac working voltage
I/O Isolation test voltage
6000Vpk (1 sec.)
Safety Approvals
cUL/UL 60950-1, IEC/EN 60950-1, UL 60601-1, IEC/EN 60601-1, CB report
Casing
plastic (UL94V-0 rated)
Output Voltage and Current Ratings
MODEL
INPUT
OUTPUT
OUTPUT
RIPPLE &
LINE
LOAD
EFFICIENCY
VOLTAGE
VOLTAGE
CURRENT
NOISE
REG.
REG.
THB6-1211
5VDC
1000mA
100mV pk-pk max.
1.0%
1.0%
75%
THB6-1212
9 - 18V
12VDC
500mA
150mV pk-pk max.
1.0%
1.0%
78%
THB6-1222
±12VDC
±250mA
150mV pk-pk max.
1.0%
2.0%
78%
THB6-1223
±15VDC
±200mA
150mV pk-pk max.
1.0%
2.0%
78%
THB6-2411
5VDC
1000mA
100mV pk-pk max.
1.0%
1.0%
77%
THB6-2412
18 - 36V
12VDC
500mA
150mV pk-pk max.
1.0%
1.0%
80%
THB6-2422
±12VDC
±250mA
150mV pk-pk max.
1.0%
2.0%
80%
THB6-2423
±15VDC
±200mA
150mV pk-pk max.
1.0%
2.0%
80%
THB6-4811
5VDC
1000mA
100mV pk-pk max.
1.0%
1.0%
77%
THB6-4812
36 - 75V
12VDC
500mA
150mV pk-pk max.
1.0%
1.0%
80%
THB6-4822
±12VDC
±250mA
150mV pk-pk max.
1.0%
2.0%
80%
THB6-4823
±15VDC
±200mA
150mV pk-pk max.
1.0%
2.0%
80%
Mechanical and Connection Details
Pin
Single Output
Dual Output
1
+Vin (Vcc)
+Vin (Vcc)
11
No pin
Common
12
-Vout
No pin
13
+Vout
-Vout
15
No pin
+Vout
23
-Vin (GND)
-Vin (GND)
24
-Vin (GND)
-Vin (GND)
Features
•
Ultra compact DIP 24 package
•
Wide 2:1 input voltage range
•
Industrial and medical safety approval
•
Short circuit protection
•
Input filter to meet EN 55022 class A
•
Reinforced insulation rated for working voltage up to 300VAC
www.powersolve.co.uk
