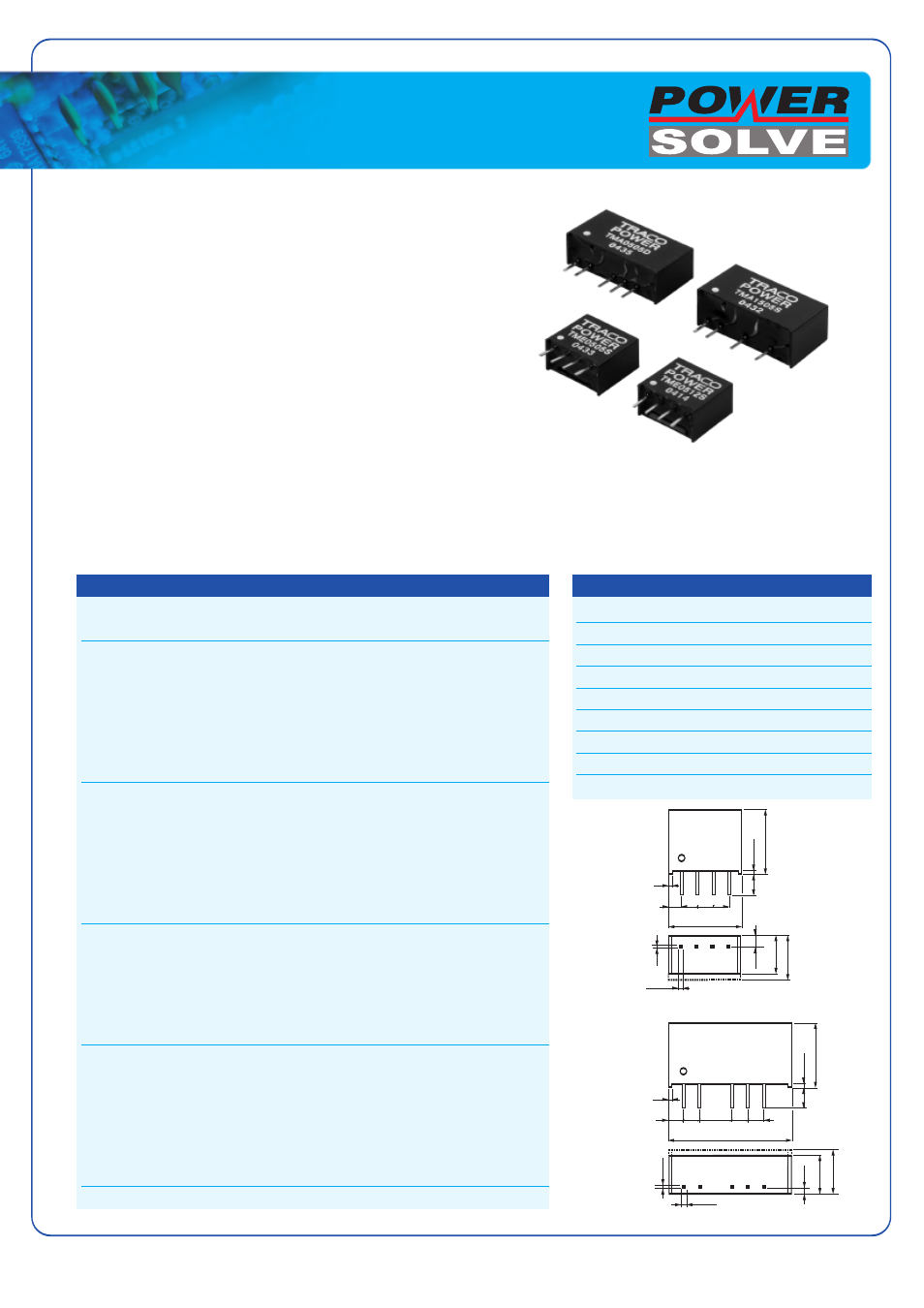

Powersolve TME Series User Manual
Dc/dc converters, Tma/tme series, 1 watt, Models
www.powersolve.co.uk
Powersolve Electronics Ltd. 8A, Arnhem Road, Newbury, RG14 5RU. England
Tel:01635 521858 Fax: 01635 523771 Email: [email protected]
Line regulation:
non regulated
Load regulation:
±10% max.
Ripple & Noise:
– TMA <75 mVpk-pk (20 MHz BW), – TME <150 mVpk-pk (20 MHz BW)
Short circuit protection:
limited 1 sec.
Efficiency:
80% typ.
Operating temperature range:
–40°C … +85°C (no derating)
I/O isolation voltage:
1000 VDC
Case:
plastic (UL 94V-0 rating)
Order Code
Input voltage
Output voltage
Output current
max.
TMA 0505S TME 0505S
5 VDC
200 mA
TME 0509S
9 VDC
110 mA
TMA 0512S TME 0512S
12 VDC
80 mA
TMA 0515S TME 0515S
5 VDC ± 10 %
15 VDC
65 mA
TMA 0505D
±5 VDC
±100 mA
TMA 0512D
±12 VDC
±40 mA
TMA 0515D
±15 VDC
±30 mA
TMA 1205S TME
1205S
5 VDC
200 mA
TME 1209S
9 VDC
110 mA
TMA 1212S TME 1212S
12 VDC
80 mA
TMA 1215S TME 1215S
12 VDC ± 10%
15 VDC
65 mA
TMA 1205D
±5 VDC
±100 mA
TMA 1212D
±12 VDC
±40 mA
TMA 1215D
±15 VDC
±30 mA
TMA 1505S
5 VDC
200 mA
TMA 1512S
12 VDC
80 mA
TMA 1515S
15 VDC ± 10%
15 VDC
65 mA
TMA 1505D
±5 VDC
±100 mA
TMA 1512D
±12 VDC
±40 mA
TMA 1515D
±15 VDC
±30 mA
TMA 2405S TME
2405S
5 VDC
200 mA
TME 2409S
9 VDC
110 mA
TMA 2412S TME
2412S
12 VDC
80 mA
TMA 2415S TME
2415S
24 VDC ± 10%
15 VDC
65 mA
TMA 2405D
±5 VDC
±100 mA
TMA 2412D
±12 VDC
±40 mA
TMA 2415D
±15 VDC
±30 mA
=
Single-in-Line (SIL) Package
=
Single and Dual Output Models
=
I/O-Isolation 1000 VDC
=
High Efficiency
=
Operating Temperature Range –40°C to +85°C
=
Industry Standard Pinout
=
100% Burn-in
DC/DC Converters
TMA/TME Series, 1 Watt
Models
TMA
TME
Pin
Single output Dual output
Single output
1
+ Vin (Vcc)
+ Vin (Vcc)
– Vin (GND)
2
– Vin (GND)
– Vin (GND)
+ Vin (Vcc)
3
No Pin
No Pin
– Vout
4
– Vout
– Vout
+ Vout
5
No Pin
Common
6
+ Vout
+ Vout
Pin-Out
Bottom view
3 x 2.54
11.5
2
1
0.5
1.9
3 4
6.0 (0.24)
24 V Models
7.0 (0.28)
0.25
0.5 (0.02)
TME
3.2
(0.13)
0.5
1.8
10.2
(0.02)
(3 x 0.1)
(0.08)
(0.07)
(0.45)
(0.02)
(0.4)
(0.01)
TMA
Bottom view
12
5
46
1.25
2.54
0.5
2.3 2.54
19.5 (0.77)
5.08
2.54
0.5 (0.02)
10.2 (0.4)
(0.02)
(0.1)
(0.1) (0.1)
(0.09)
(0.2)
6.0 (0.24)
24 V Models
7.0 (0.28)
(0.05)
0.5 (0.02)
3.2
(0.13)
0.25
(0.01)
() = Inches
