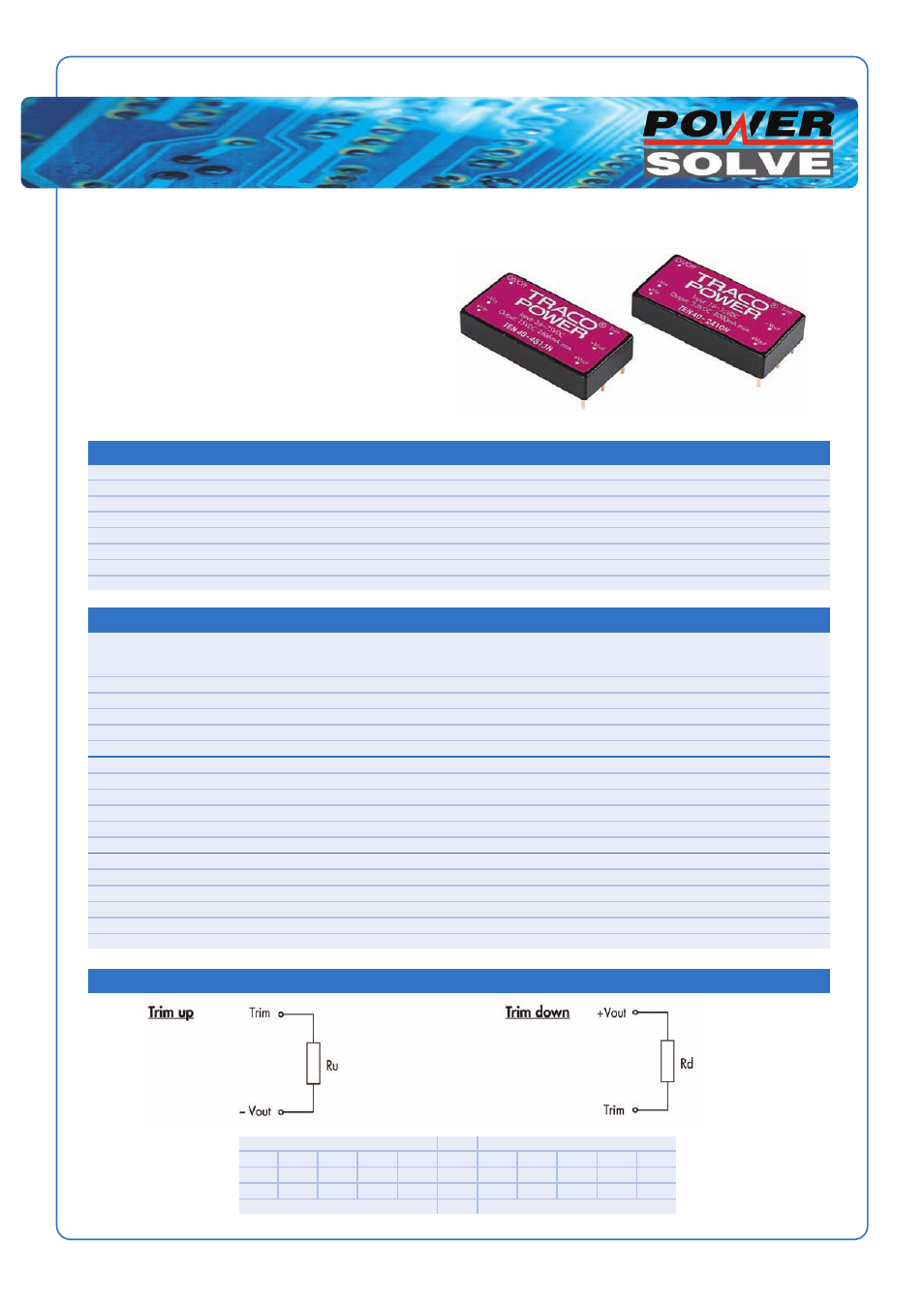

DC-DC Converters

TEN40N Series, 40 Watt

Electrical Specification

Output Voltage Adjustment

±10% by external resistor (single output models)

Conducted EMI

EN55022 class A & FCC level A (internal filter)

Short Circuit Protection

continuous (hiccup mode), automatic recovery

Operating Temperature Range

-40°C to +71°C (derate at 2.5%/k above 55°C)

I/O Isolation test voltage

1500VDC

Safety Approvals

cUL/UL 60950-1, IEC/EN 60950-1

Casing

metal, with insulated baseplate

Remote On/Off

Shutdown input for low input current (2.5mA) in standby operation

Output Voltage and Current Ratings

MODEL

INPUT

OUTPUT

OUTPUT

RIPPLE &

LINE

LOAD

EFF.

VOLTAGE

VOLTAGE

CURRENT

NOISE

REG.

REG.

TEN40-1210N

3.3VDC

8000mA

100mV pk-pk max.

0.5%

0.5%

89%

TEN40-1211N

5VDC

8000mA

100mV pk-pk max.

0.5%

0.5%

89%

TEN40-1212N

9 - 18VDC

12VDC

3333mA

150mV pk-pk max.

0.5%

0.5%

89%

TEN40-1213N

15VDC

2666mA

150mV pk-pk max.

0.5%

0.5%

90%

TEN40-1222N

±12VDC

±1666mA

150mV pk-pk max.

0.5%

2.0%

88%

TEN40-1223N

±15VDC

±1333mA

150mV pk-pk max.

0.5%

2.0%

88%

TEN40-2410N

3.3VDC

8000mA

100mV pk-pk max.

0.5%

0.5%

90%

TEN40-2411N

5VDC

8000mA

100mV pk-pk max.

0.5%

0.5%

91%

TEN40-2412N

18 - 36VDC

12VDC

3333mA

150mV pk-pk max.

0.5%

0.5%

91%

TEN40-2413N

15VDC

2666mA

150mV pk-pk max.

0.5%

0.5%

91%

TEN40-2422N

±12VDC

±1666mA

150mV pk-pk max.

0.5%

2.0%

89%

TEN40-2423N

±15VDC

±1333mA

150mV pk-pk max.

0.5%

2.0%

89%

TEN40-4810N

3.3VDC

8000mA

100mV pk-pk max.

0.5%

0.5%

90%

TEN40-4811N

5VDC

8000mA

100mV pk-pk max.

0.5%

0.5%

91%

TEN40-4812N

36 - 75VDC

12VDC

3333mA

150mV pk-pk max.

0.5%

0.5%

92%

TEN40-4813N

15VDC

2666mA

150mV pk-pk max.

0.5%

0.5%

92%

TEN40-4822N

±12VDC

±1666mA

150mV pk-pk max.

0.5%

2.0%

89%

TEN40-4823N

±15VDC

±1333mA

150mV pk-pk max.

0.5%

2.0%

89%

Features

Wide 2:1 input range

High efficiency up to 92%

I/O isolation 1500VDC

Operating temperature range -40°C to +71°C

Short circuit protection

Adjustable output voltages and Remote On/Off

High power density in a 50.8 x 25.4 x 10.2 mm metal package

www.powersolve.co.uk

Output Voltage Adjustment

Ru (KΩ)

Rd (KΩ)

Output

3.3V

5V

12V

15V

Output

3.3V

5V

12V

15V

+5%

7.32

4.64

42.2

48.7

-5%

8.06

5.62

46.4

64.9

+10%

0.47

0.59

3.01

3.24

-10%

0.34

0.68

1.18

5.23

approximate values

approximate values
