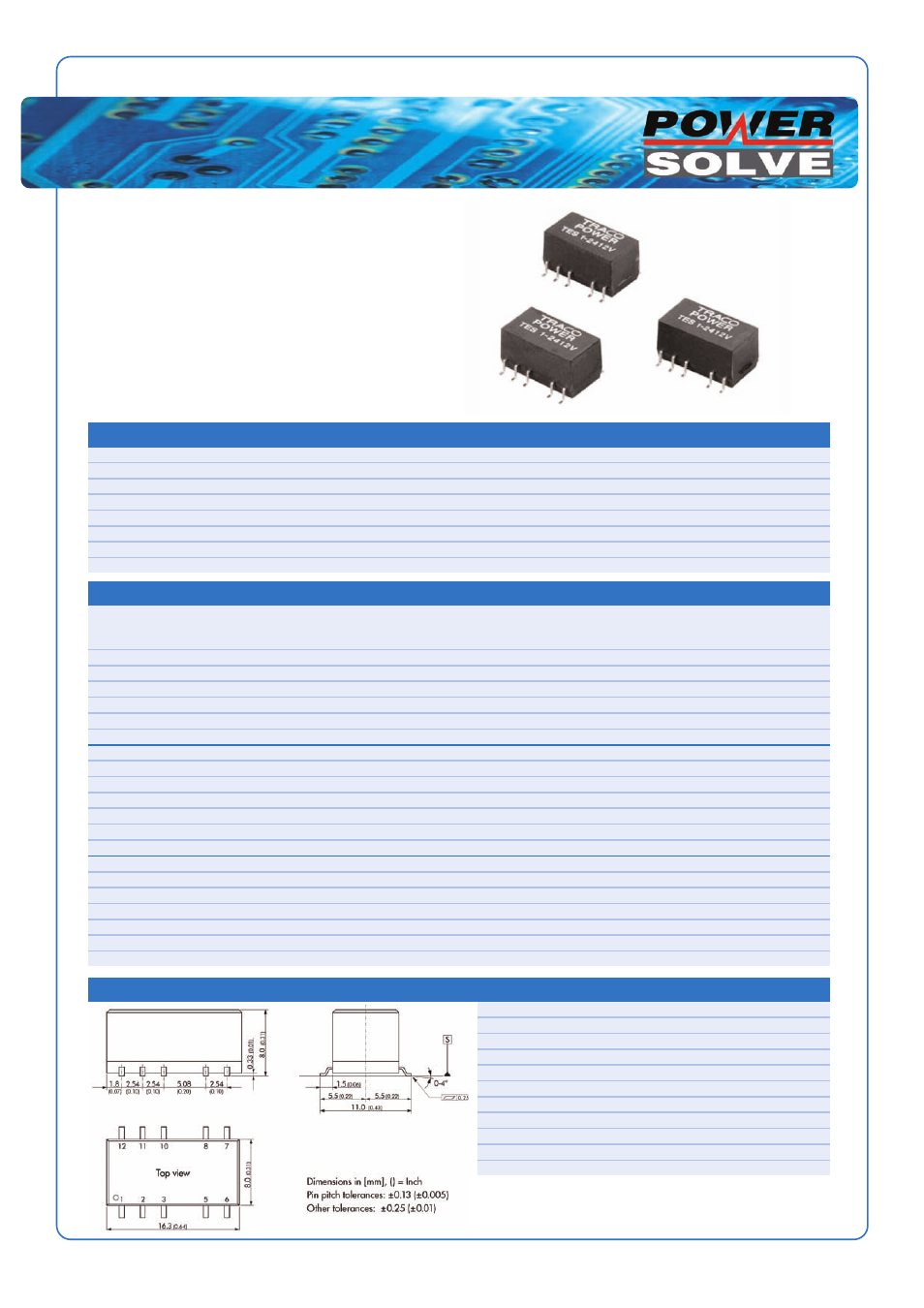

Powersolve TES1V Series User Manual
Dc-dc converters, Tes 1v series, 1 watt, Features
Powersolve Electronics Ltd. 8A Arnhem Road, Newbury, RG14 5RU. England
Tel: 01635 521858 Fax: 01635 523771 Email: [email protected]
DC-DC Converters
TES 1V Series, 1 Watt
Features
•
SMD package with industry standard footprint
•
Single and dual output models
•
Lead frame construction
•
High accuracy of pin co-planarity
•
Qualified for leadfree reflow solder process
•
Available in tape and reel package
Electrical Specification
Line Regulation
non regulated
Load Regulation
+10% / -5% max.
Short Circuit Protection
limited 0.5 sec.
Operating Temperature Range
-40°C to +85°C (derate at 4.0%/°C above 75°C)
I/O Isolation test voltage
3000VDC
I/O Isolation capacitance
60pF typical
I/O Isolation resistance
>10G ohm
Casing
plastic (UL94V-0 rated)
Output Voltage and Current Ratings
MODEL
INPUT
OUTPUT
OUTPUT
RIPPLE &
EFFICIENCY
VOLTAGE
VOLTAGE
CURRENT
NOISE
TES 1-0510V
3.3VDC
260mA
100mV pk-pk max.
72%
TES 1-0511V
5VDC
200mA
100mV pk-pk max.
75%
TES 1-0512V
12VDC
84mA
100mV pk-pk max.
79%
TES 1-0513V
5VDC ±10%
15VDC
67mA
100mV pk-pk max.
80%
TES 1-0521V
±5VDC
±100mA
100mV pk-pk max.
75%
TES 1-0522V
±12VDC
±42mA
100mV pk-pk max.
79%
TES 1-0523V
±15VDC
±34mA
100mV pk-pk max.
80%
TES 1-1210V
3.3VDC
260mA
100mV pk-pk max.
73%
TES 1-1211V
5VDC
200mA
100mV pk-pk max.
76%
TES 1-1212V
12VDC
84mA
100mV pk-pk max.
80%
TES 1-1213V
12VDC ±10%
15VDC
67mA
100mV pk-pk max.
81%
TES 1-1221V
±5VDC
±100mA
100mV pk-pk max.
76%
TES 1-1222V
±12VDC
±42mA
100mV pk-pk max.
80%
TES 1-1223V
±15VDC
±34mA
100mV pk-pk max.
80%
TES 1-2410V
3.3VDC
260mA
100mV pk-pk max.
70%
TES 1-2411V
5VDC
200mA
100mV pk-pk max.
73%
TES 1-2412V
12VDC
84mA
100mV pk-pk max.
79%
TES 1-2413V
24VDC ±10%
15VDC
67mA
100mV pk-pk max.
79%
TES 1-2421V
±5VDC
±100mA
100mV pk-pk max.
73%
TES 1-2422V
±12VDC
±42mA
100mV pk-pk max.
79%
TES 1-2423V
±15VDC
±34mA
100mV pk-pk max.
79%
Mechanical and Connection Details
Pin
Single Output
Dual Output
1
-Vin (GND)
-Vin (GND)
2
+Vin (Vcc)
+Vin (Vcc)
3
No conn.
No conn.
5
-Vout
Common
6
No conn.
-Vout
7
No conn.
No conn.
8
+Vout
+Vout
10
No conn.
No conn.
11
No conn.
No conn.
12
No conn.
No conn.
www.powersolve.co.uk
